Windshield Washer Pump: Service and Repair

Washer Tank and Washer Pump Removal and Installation

Removal

1. Disconnect negative (-) cable at battery.
2. Remove front bumper referring to Front Bumper Components.
3. Remove left side headlight housing from vehicle body.

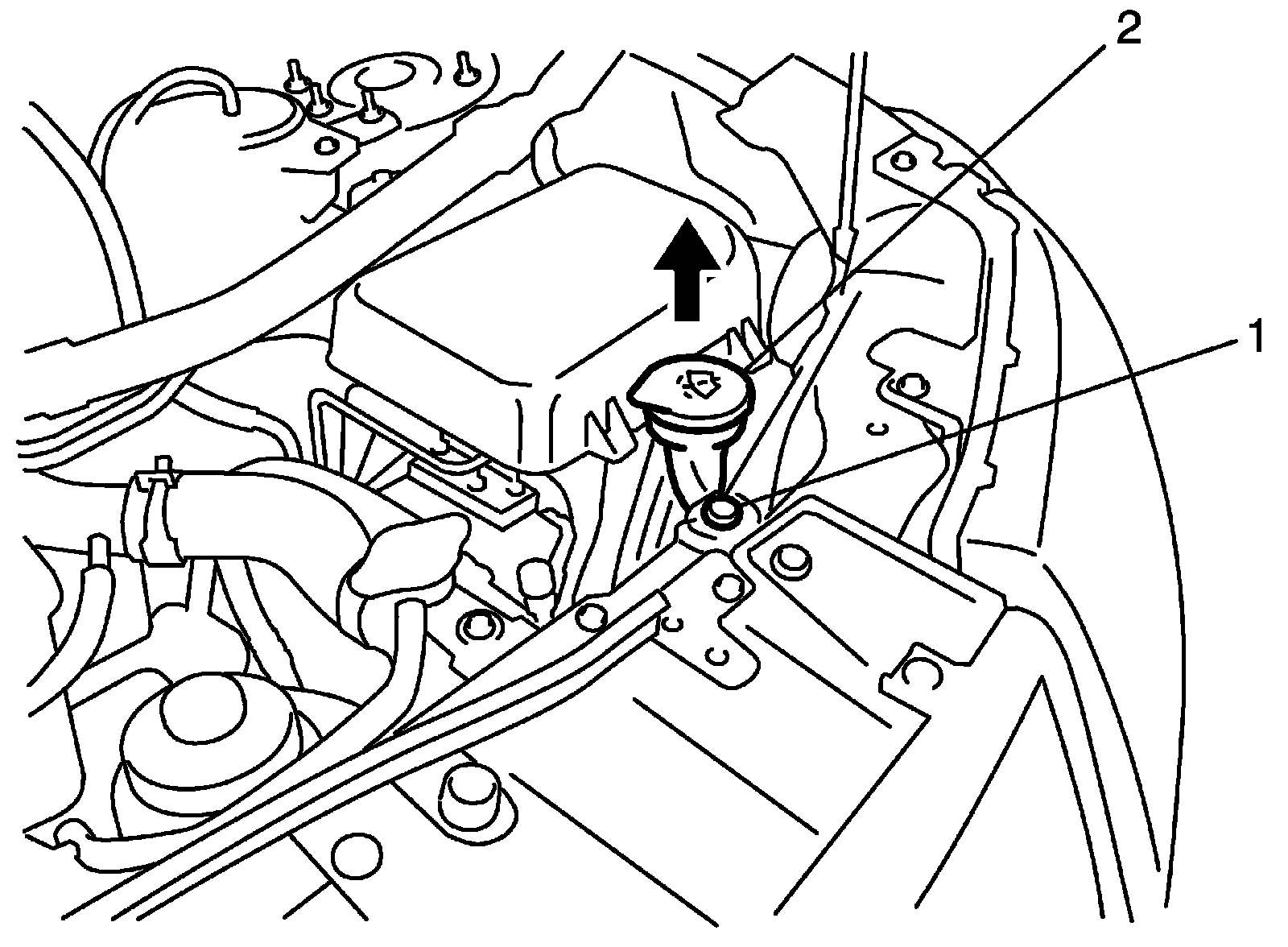

4. Remove clip (1) and upper part (2) of washer tank.

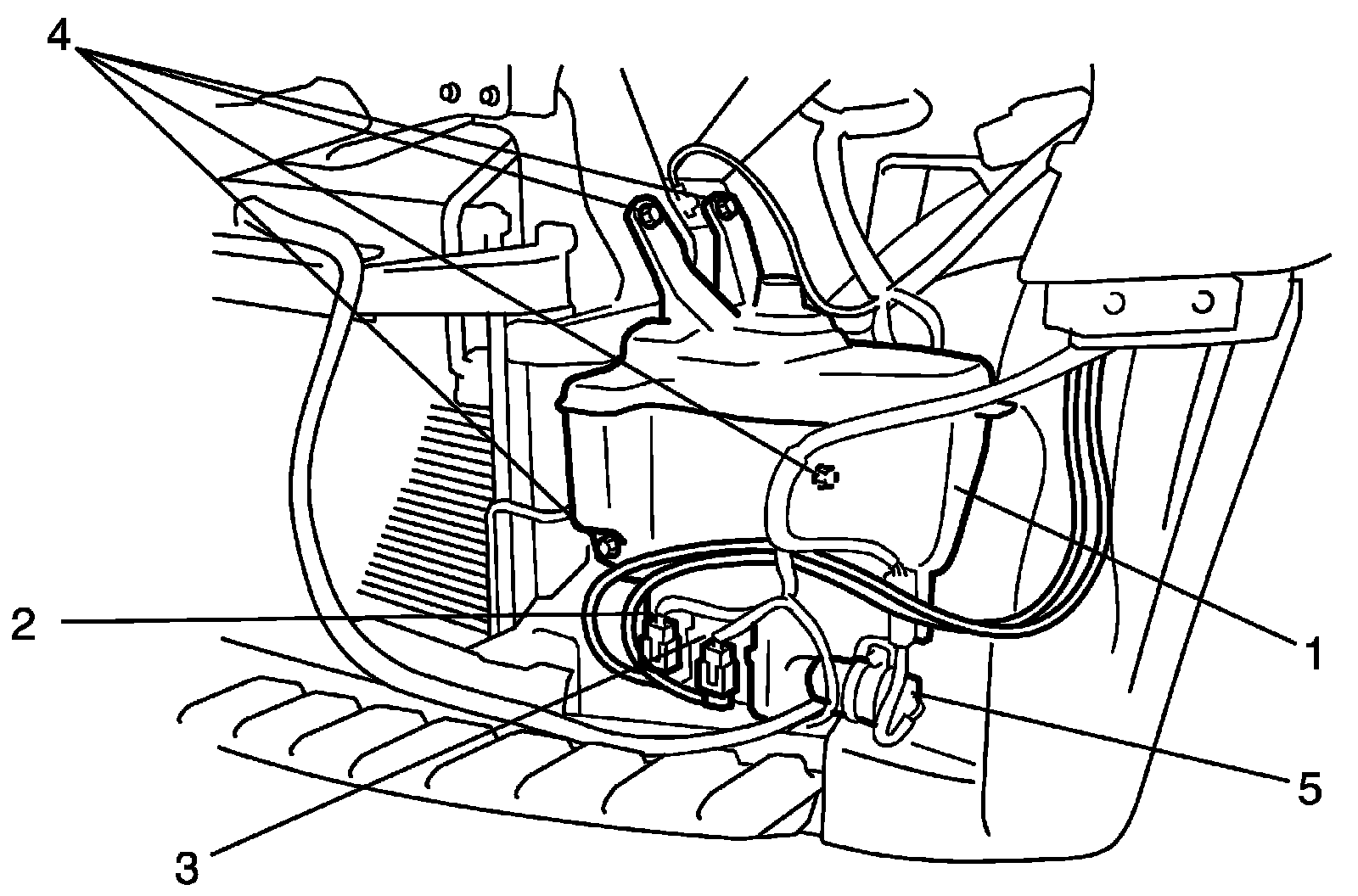

5. Remove washer tank bolts (4).
6. Disconnect washer pump lead wire couplers and hoses.
7. Remove washer tank (1).
8. Remove windshield washer pump (2), rear washer pump (3) (if equipped) and headlight washer pump (5) (if equipped) from washer tank (1).







Installation

Install washer tank and washer pump by reversing removal procedure, noting the following instructions.
- Connect washer pump connector(s) securely.
- After installing headlight housing be sure to inspect and adjust aiming referring to Headlight Aiming Adjustment with Screen.
