Manual Transmission Front Case Disassembly and Assembly
Manual Transmission Front Case Disassembly and AssemblyDisassembly

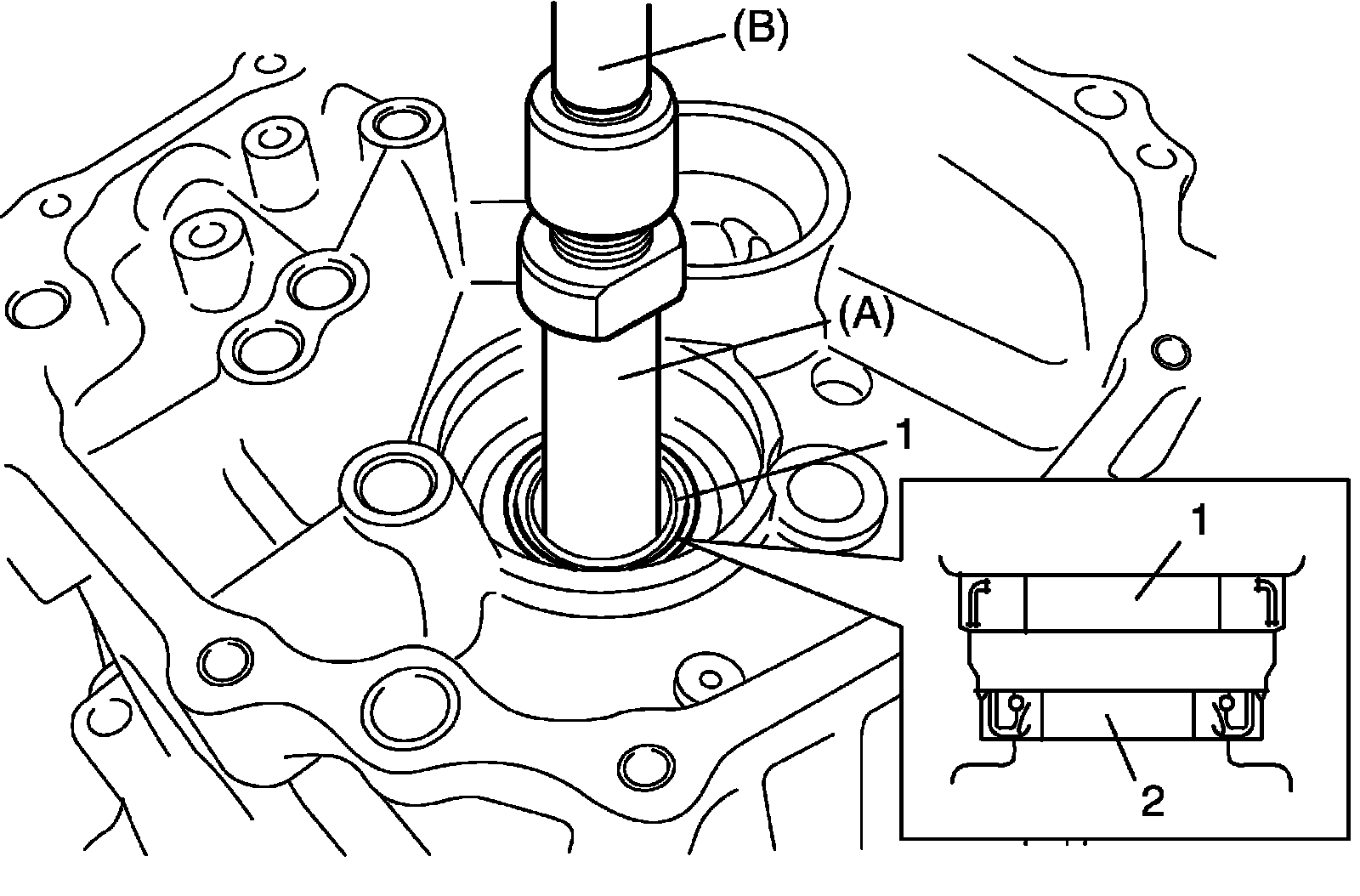

Remove pump seal (1) and oil seal (2) from front case using special tools.
Special Tool
(A): 09941-64511
(B): 09930-30104
Assembly
1) Set new oil seal to front case with its spring side facing rear case side.
2) Install oil seal until it becomes flush with case surface using special tool and hammer and apply grease to oil seal lip.

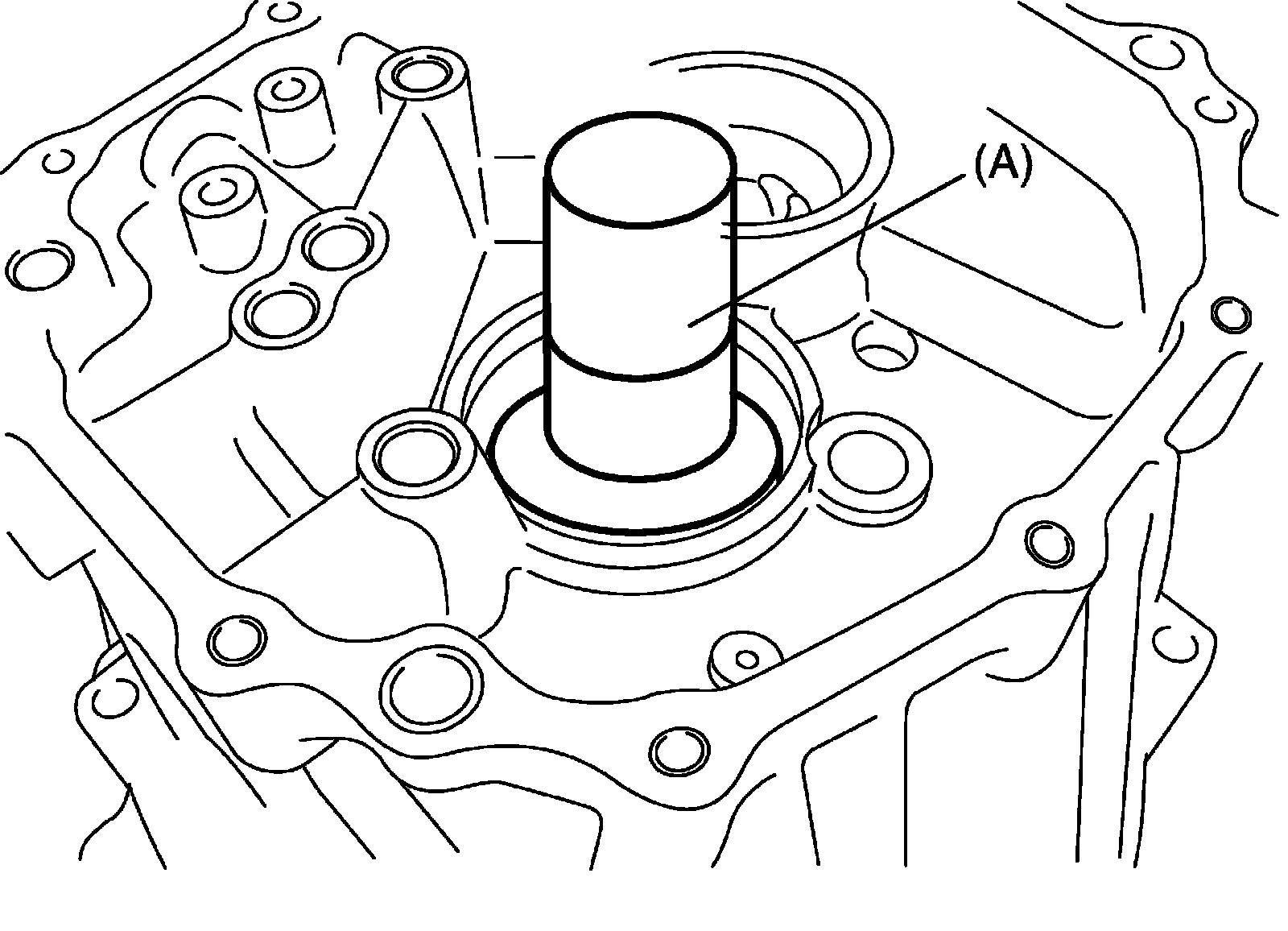

Special Tool
(A): 09940-51710
: Grease 99000-25011 (SUZUKI Super Grease A)

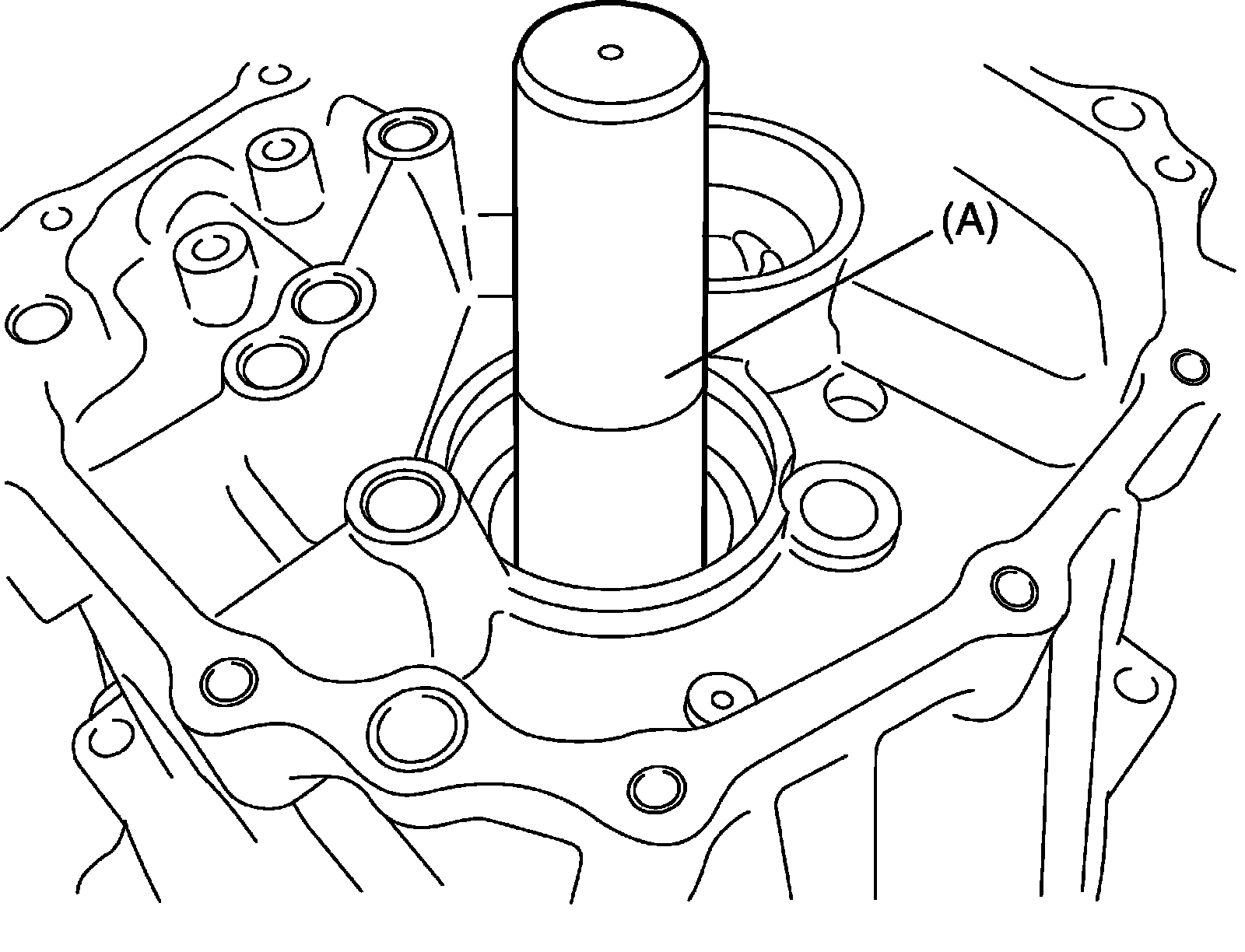

3) Install new pump seal to front case using special tool and hammer.
Special Tool
(A): 09913-75810
