4-Speed Automatic Transmission

Fail Safe Table
When any of the following DTCs is detected, TCM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when TCM detects normal condition after that.

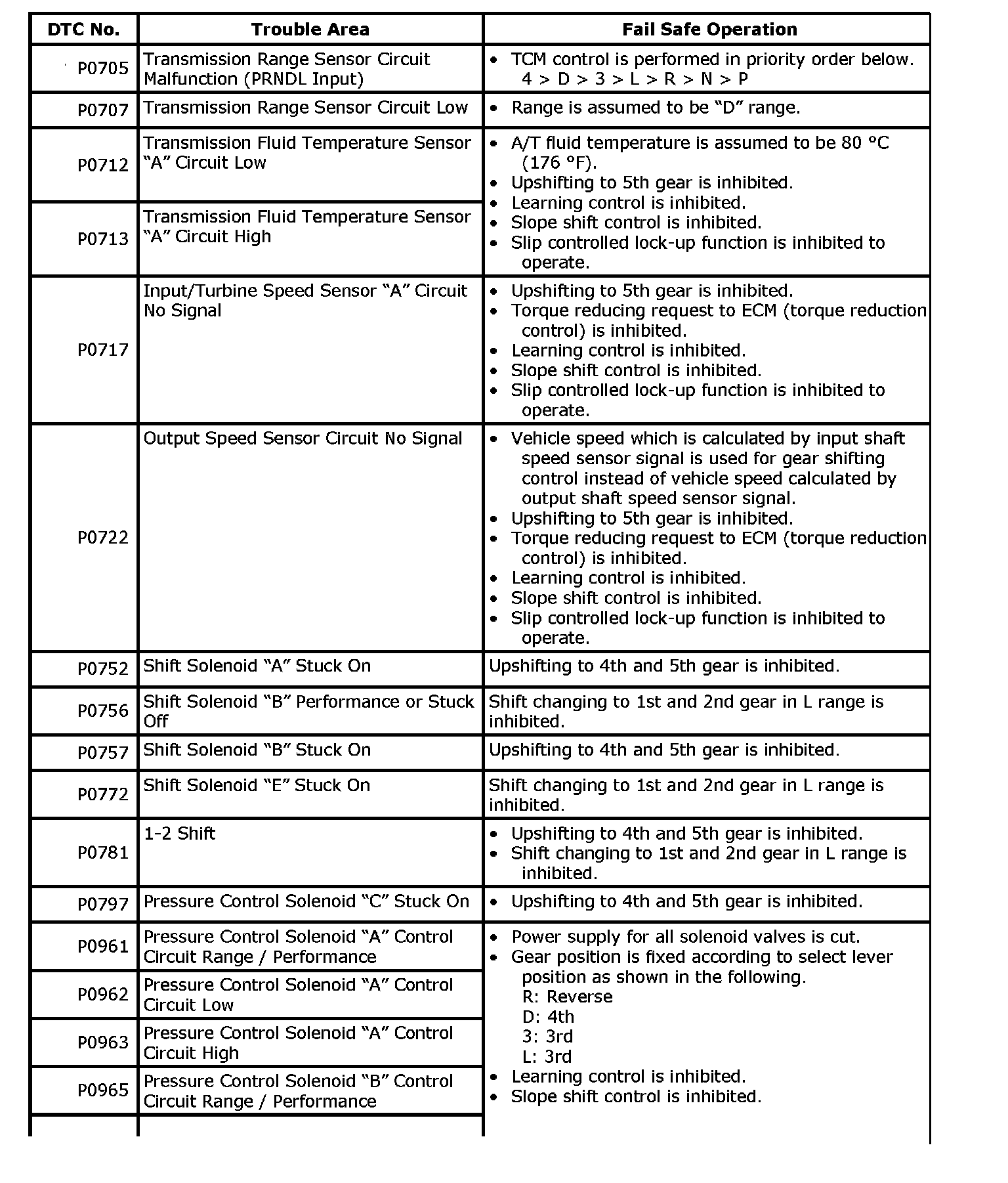

P0705-P0965:

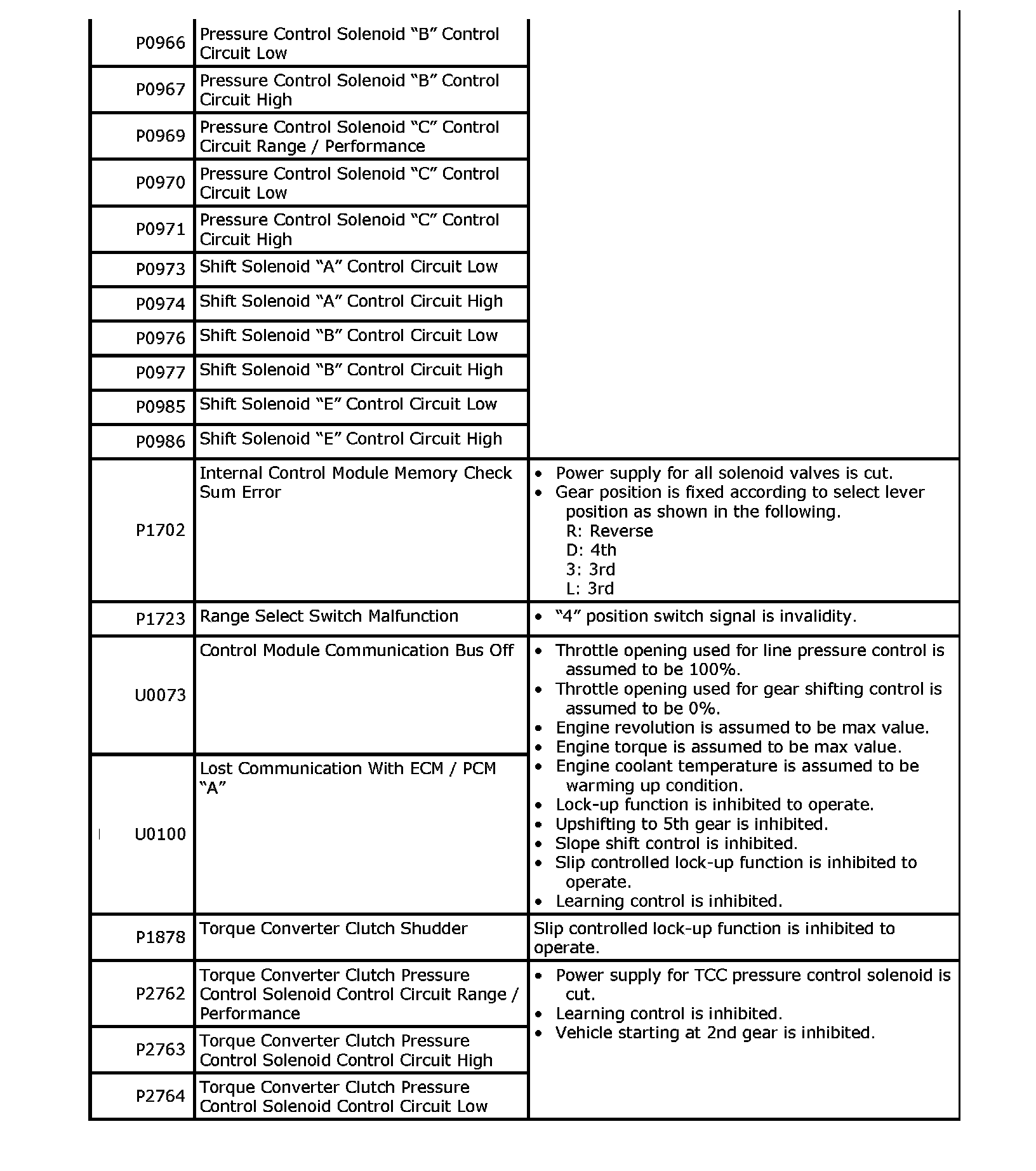

P0966-P2764 / U0073-U0100:
