5-Speed Automatic Transmission

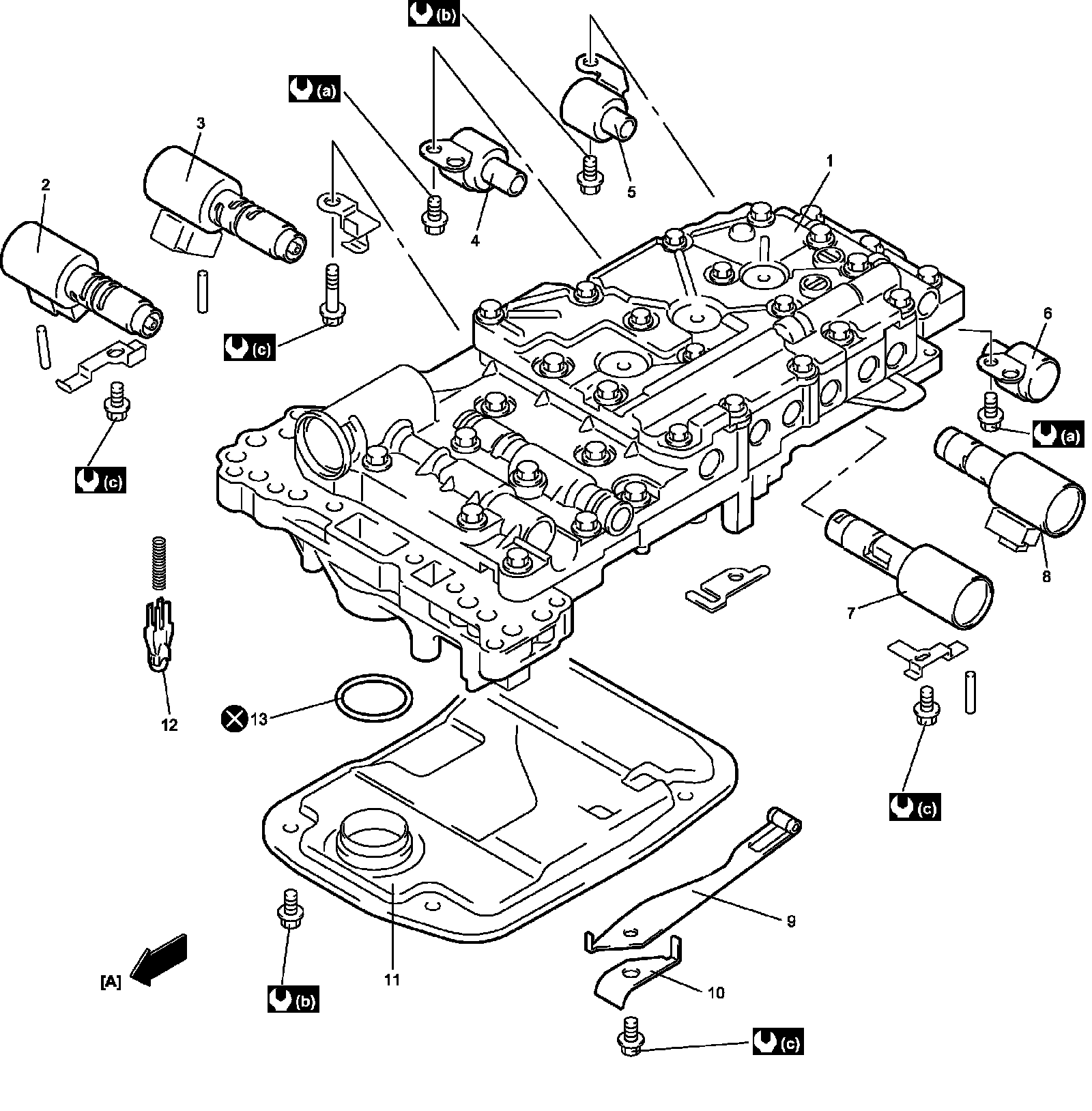

Valve Body Assembly Components

CAUTION:
When replacing pressure control solenoid valve-A, -B, -C and TCC pressure control solenoid valve, it is strictly required to replace it together with valve body assembly as a set.
