Forward Clutch Inspection

Forward Clutch Inspection

Forward Clutch Piston
^ Shake piston to check that ball is not stuck.

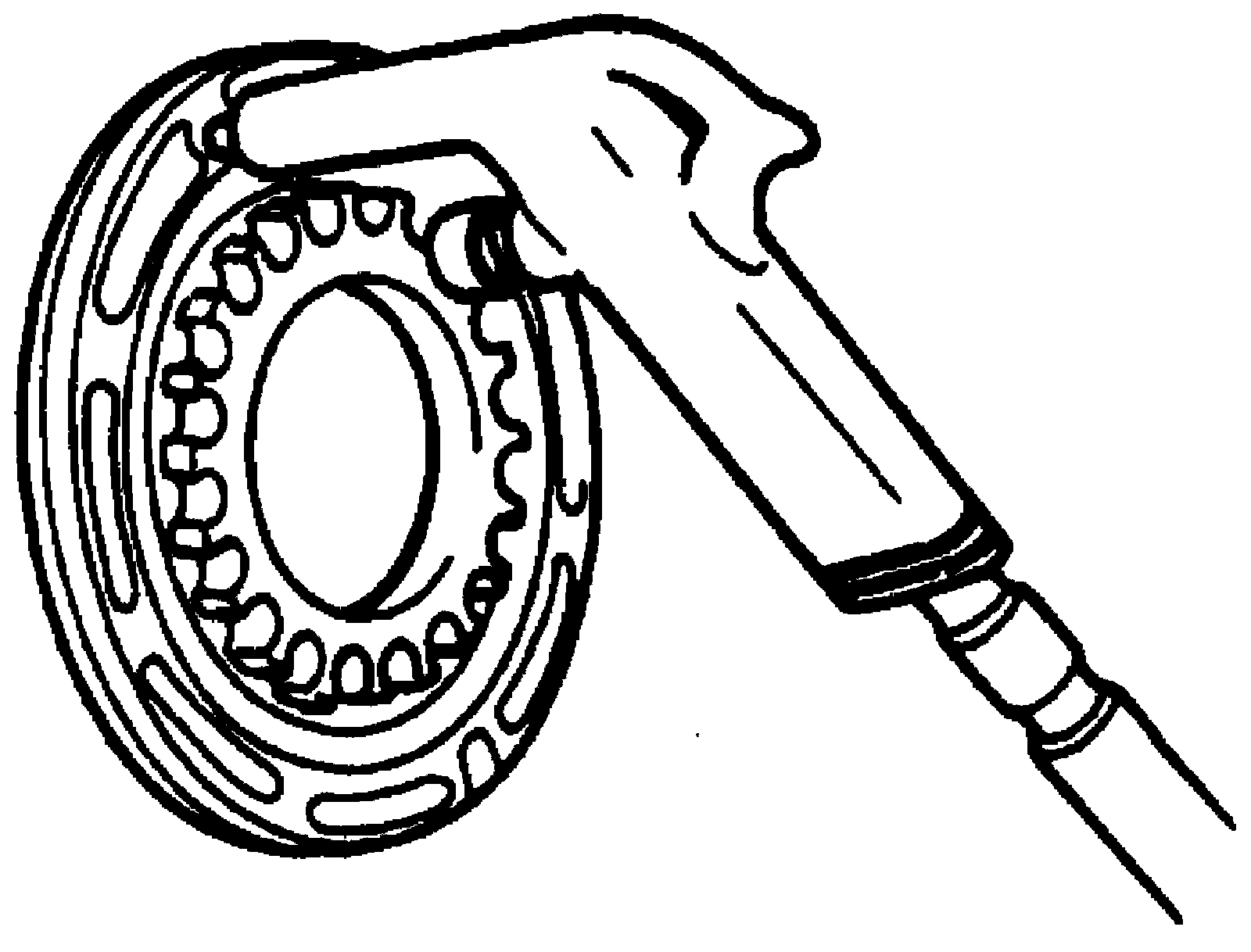

^ Blow low pressure air to check ball section for leakage.





Forward Clutch Piston Return Spring
^ Measure free length.

Standard free length of forward clutch piston return spring
24.81 mm (0.977 in.)

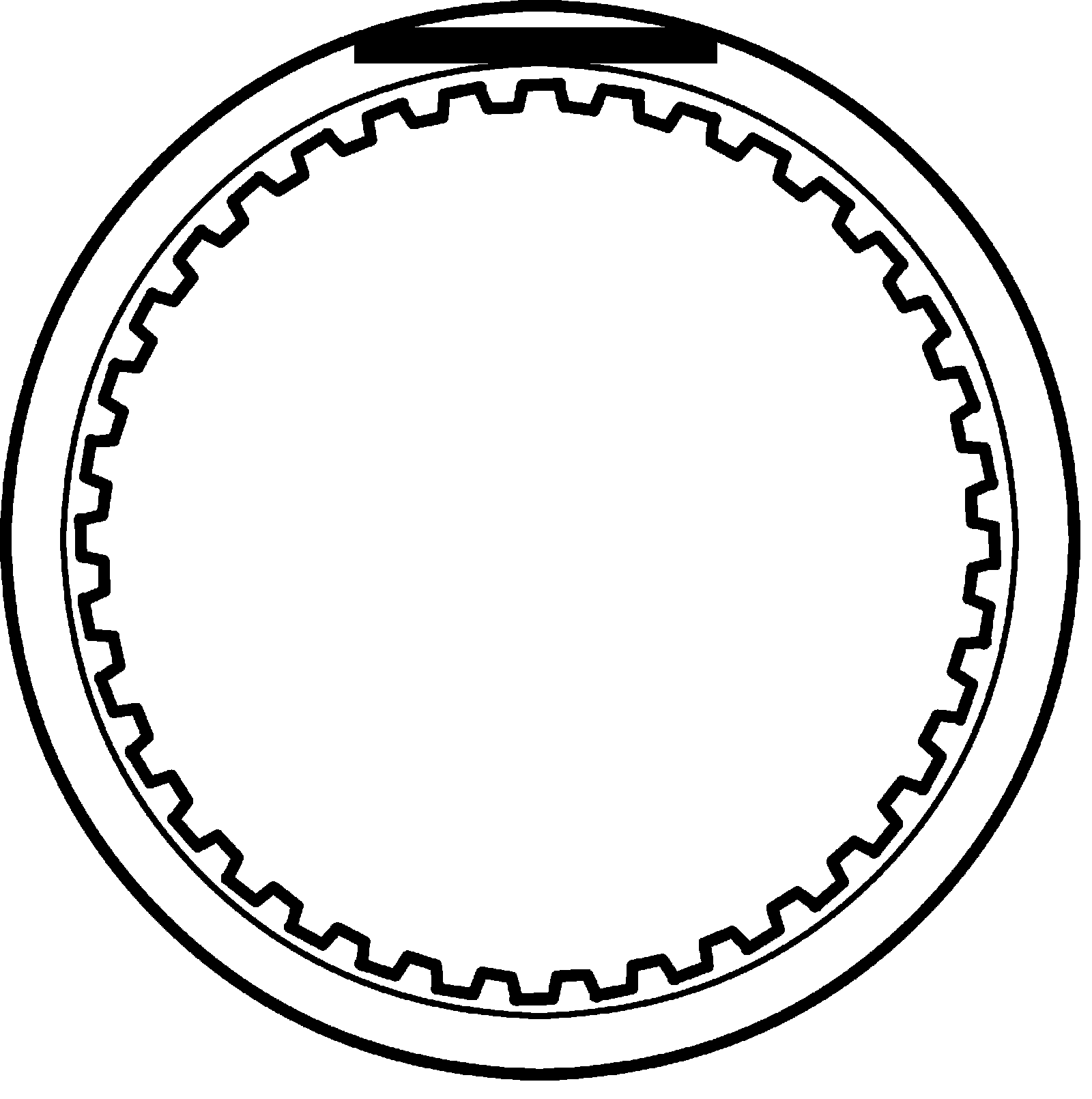

Clutch Plate and Disc

^ Check that sliding surface of discs and plate are not worn or burnt. If necessary, replace them.

NOTE:
^ If disc lining is exfoliated, discolored or worn hardly, replace all discs.
^ If only a part of printed numbers is corroded, replace all discs.
^ Before assembling new discs, soak them in A/T fluid for at least 2 hours.
