Fuel Pressure Check

Fuel Pressure Check

System Diagram

Special Tool
(A): 09912 58442
(B): 09912 58432
(C): 09912 58490

System Diagram:

Troubleshooting

NOTE: Before using the following flow chart, check that battery voltage is higher than 11 V. If it is lower, fuel pressure becomes lower than specification even if fuel pump and line are in good condition.

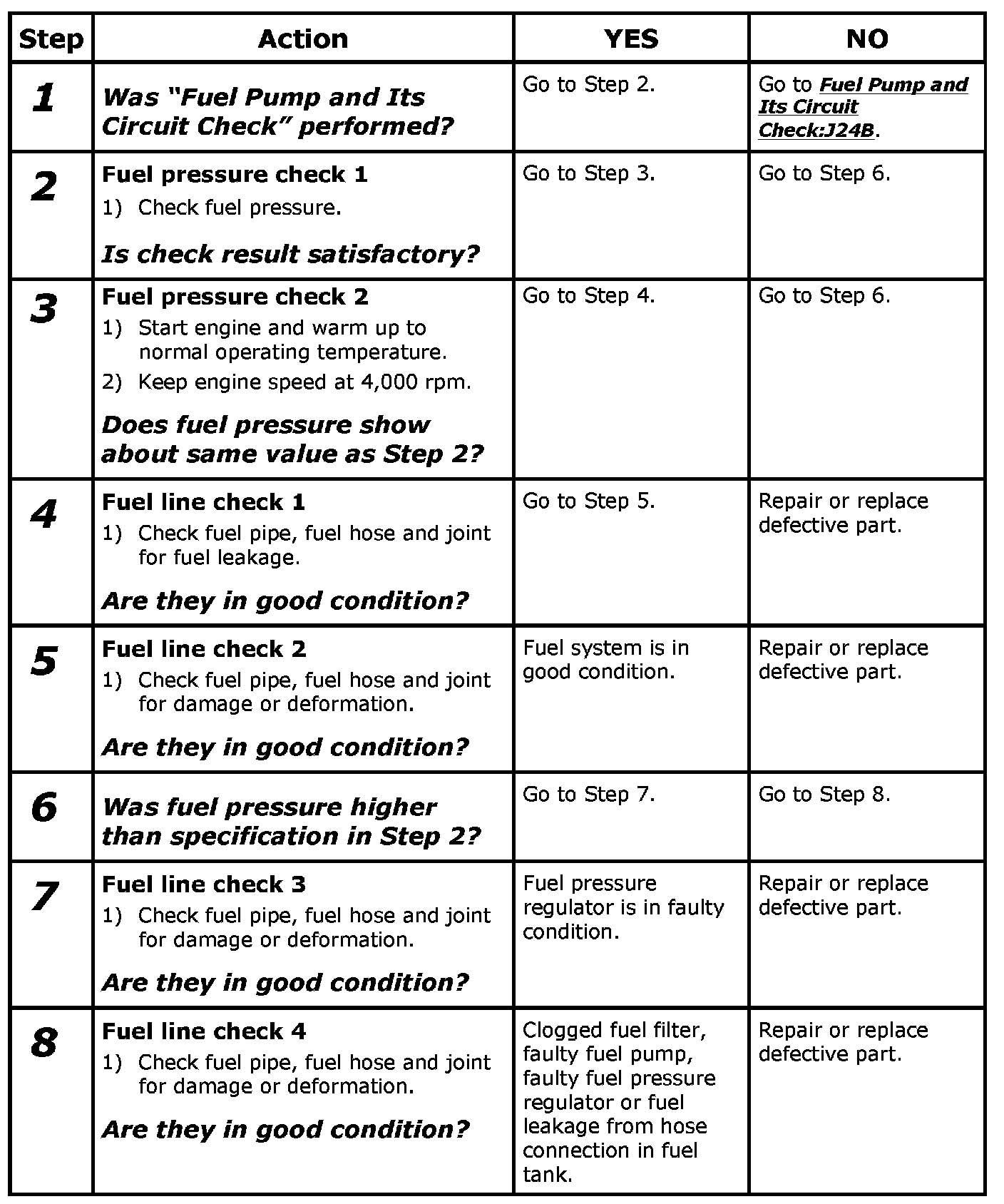

Step 1-8:
