Ignition Coil (Plug Cap) Inspection

Ignition Coil (Plug Cap) Inspection

1. Remove ignition coil assemblies.

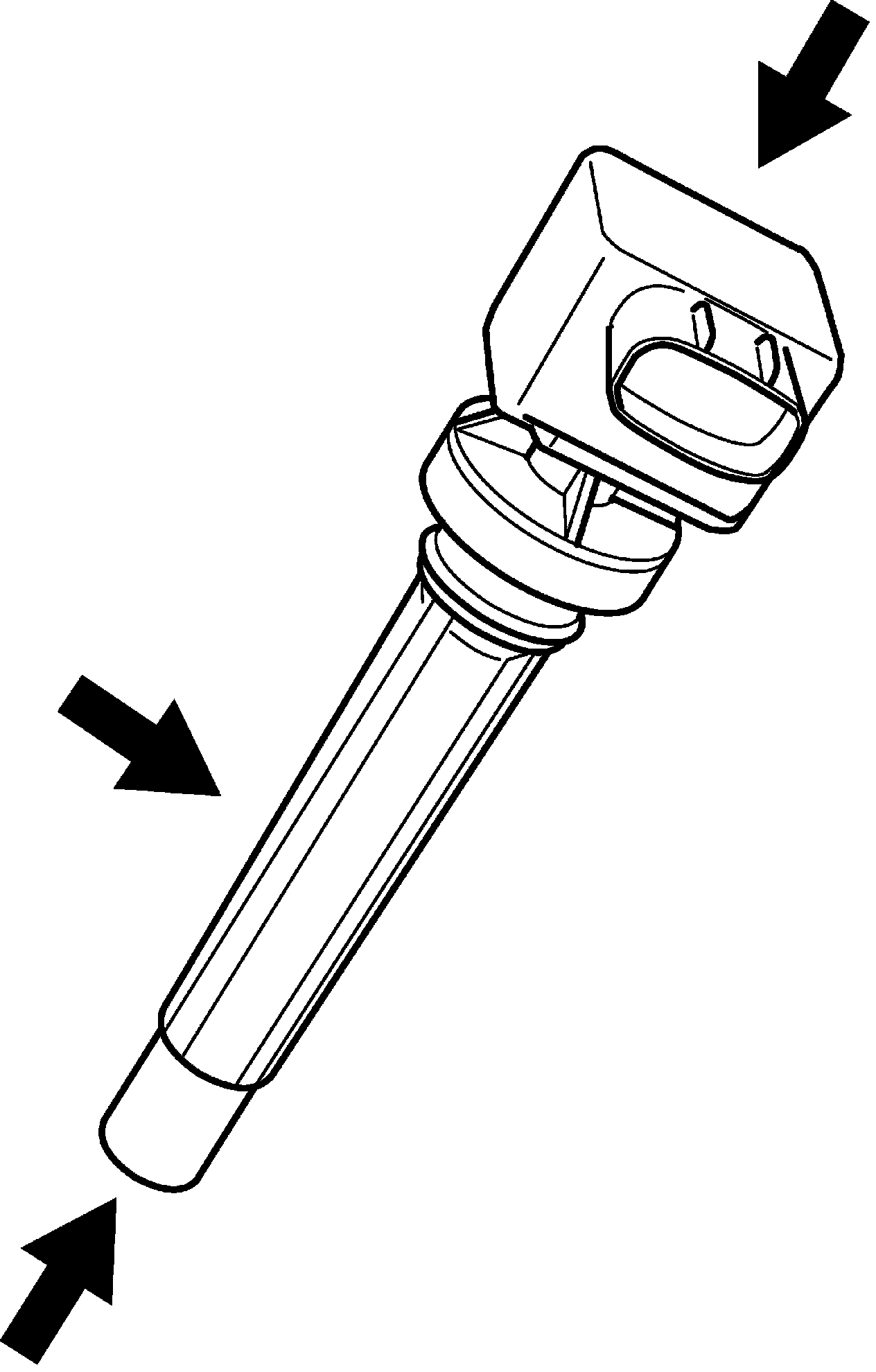

2. Check ignition coil assembly for damage, deterioration and terminal corrosion. If defective condition is found, replace.






3. Install ignition coil assemblies.
