VIN (Vehicle Identification Number) Registration (EVAP Leak-Check Model)

VIN (Vehicle Identification Number) Registration (EVAP Leak-Check Model)

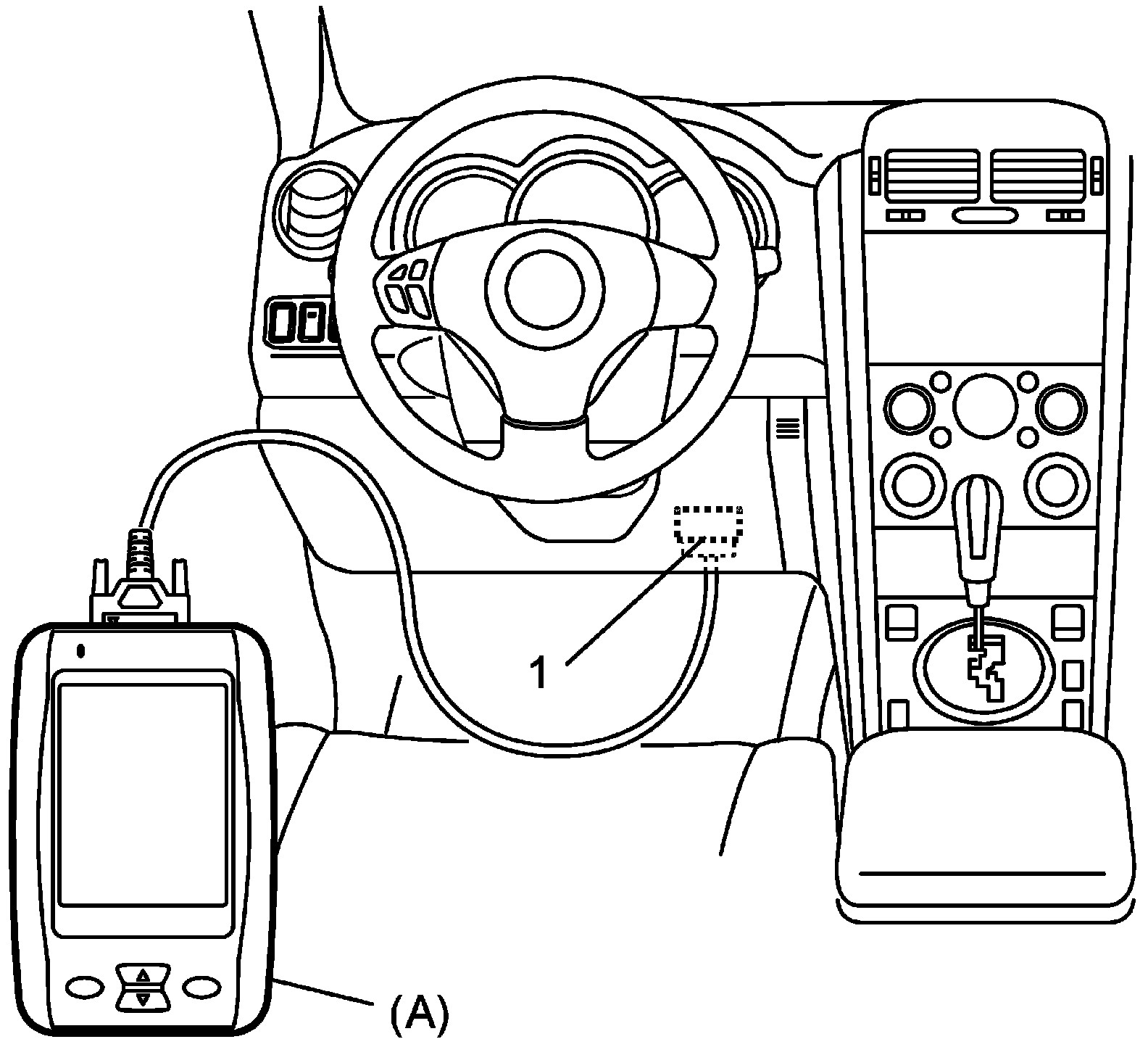

1. Connect SUZUKI scan tool to data link connector (DLC) (1) located on underside of instrument panel at drive's seat side.

Special Tool
(A): SUZUKI scan tool (SUZUKI-SDT)






2. Check VIN shown on left of instrument panel.
3. Turn ignition switch to ON position.
4. Select "VIN registration" mode of SUZUKI scan tool.
5. Confirm whether code of 17 digits displayed on SUZUKI scan tool is corresponding to VIN shown on the left side of instrument panel VIN, register VIN (vehicle identification number) data into ECM referring to VIN (Vehicle Identification Number) Registration (EVAP-Leak- Check Model):J24B.
6. Push "EXIT" button of SUZUKI scan tool.
