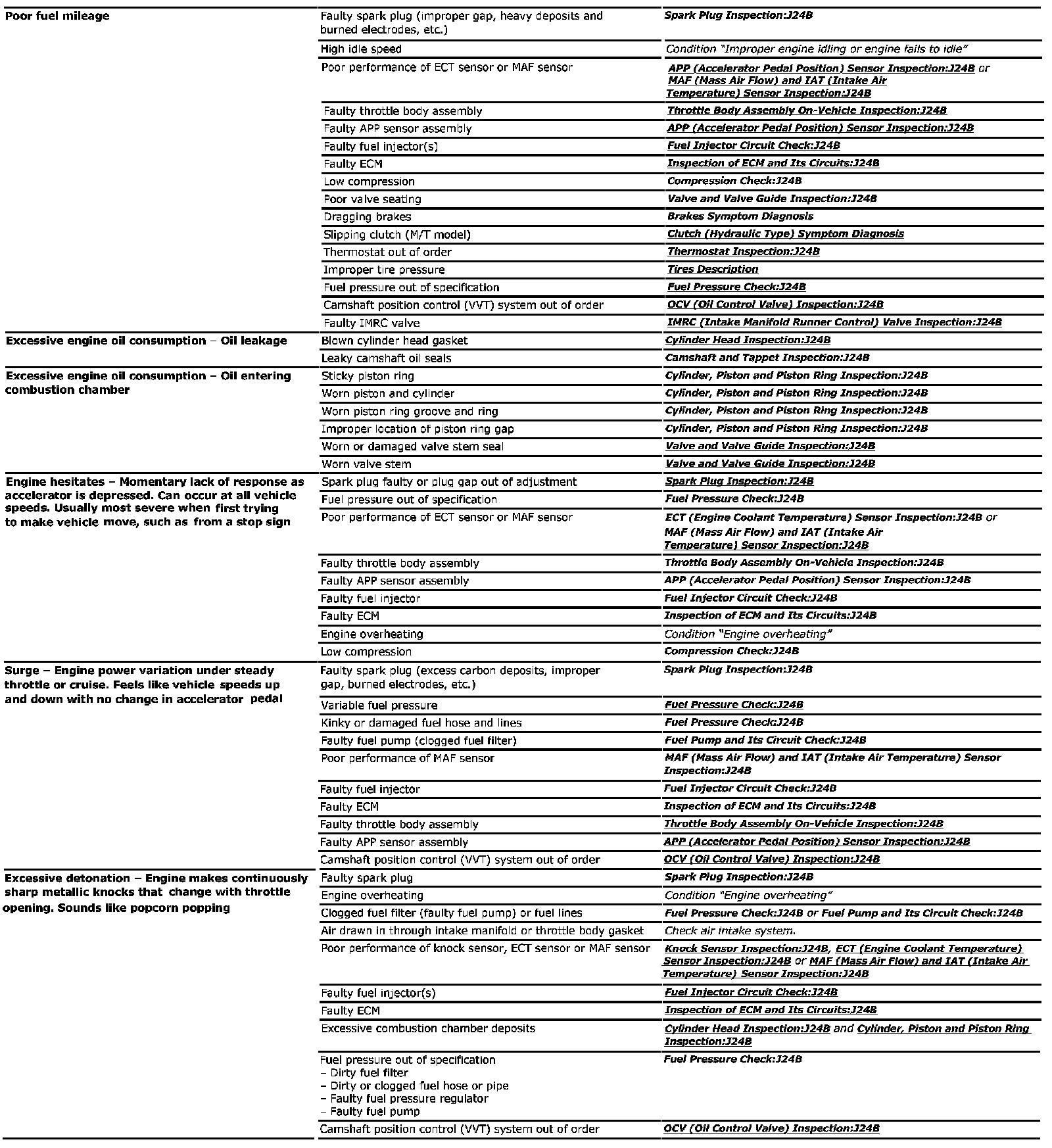

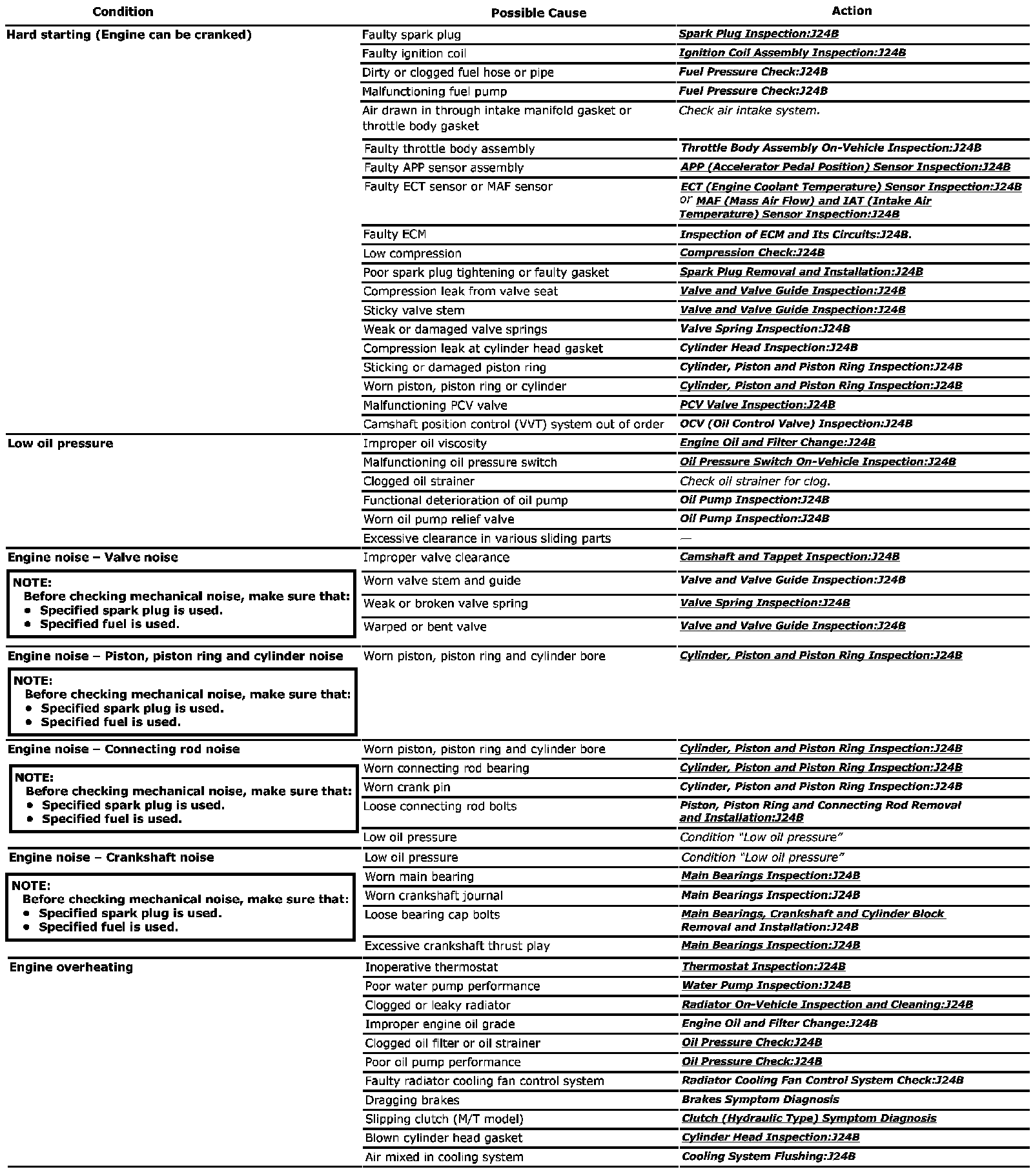

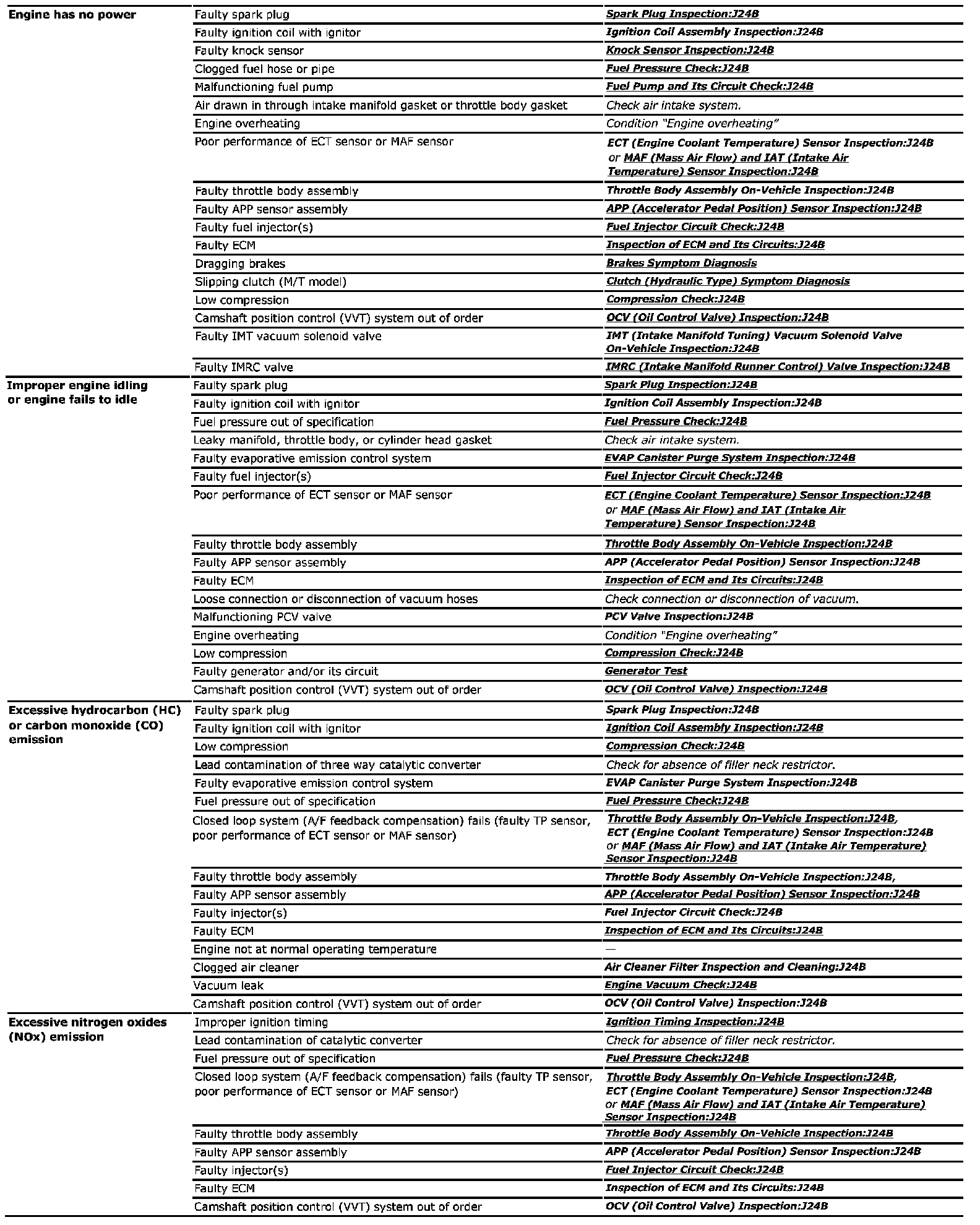

Engine Symptom Diagnosis

Engine Symptom Diagnosis

Perform troubleshooting referring to the following when ECM has detected no DTC and no abnormality has been found in Visual Inspection:J24B and Engine Basic Inspection:J24B. Visual Inspection Engine Basic Inspection
