Fuse Box No.3 (In J/B)

Fuse Box No.3 (In J/B)

Fuse Box No.3:

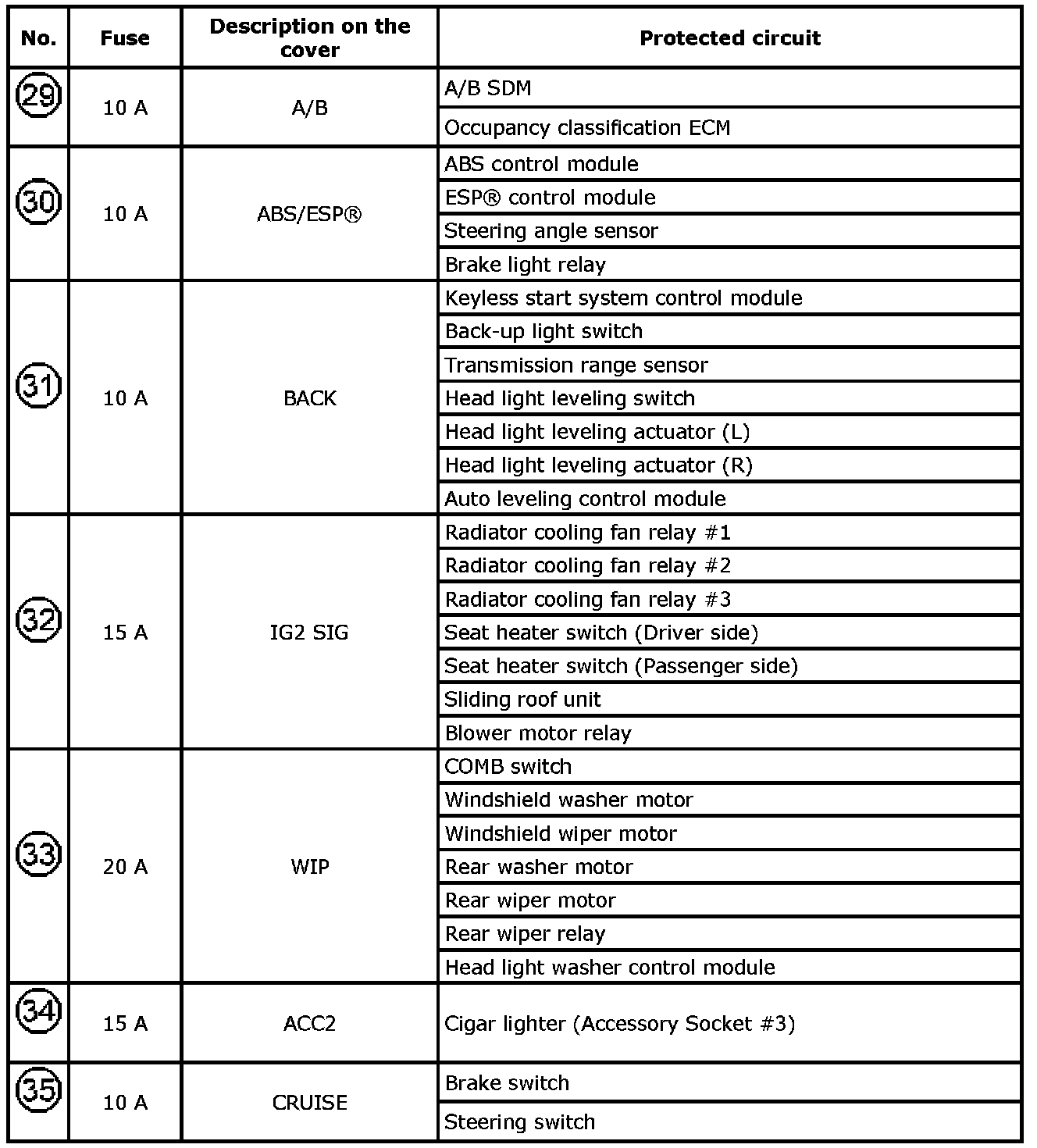

Fuse Box No.3 Application Table Fuse 29-Fuse 35:

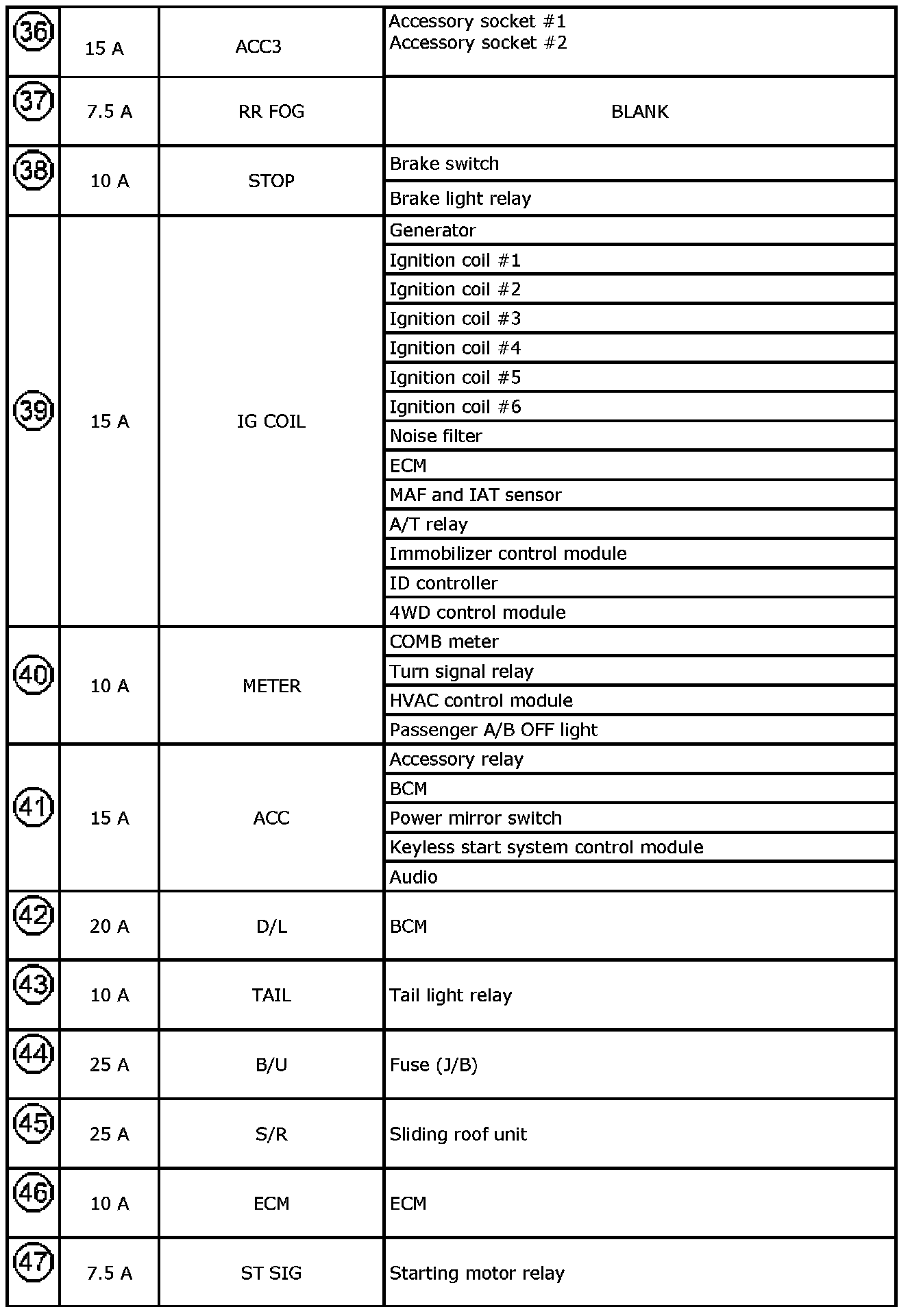

Fuse Box No.3 Application Table Fuse 36-Fuse 47:




Fuse Box No.3 Application Table Fuse 48-Fuse 59:
