Wheels and Tires: Testing and Inspection

Suspension, Wheels and Tires Symptom Diagnosis

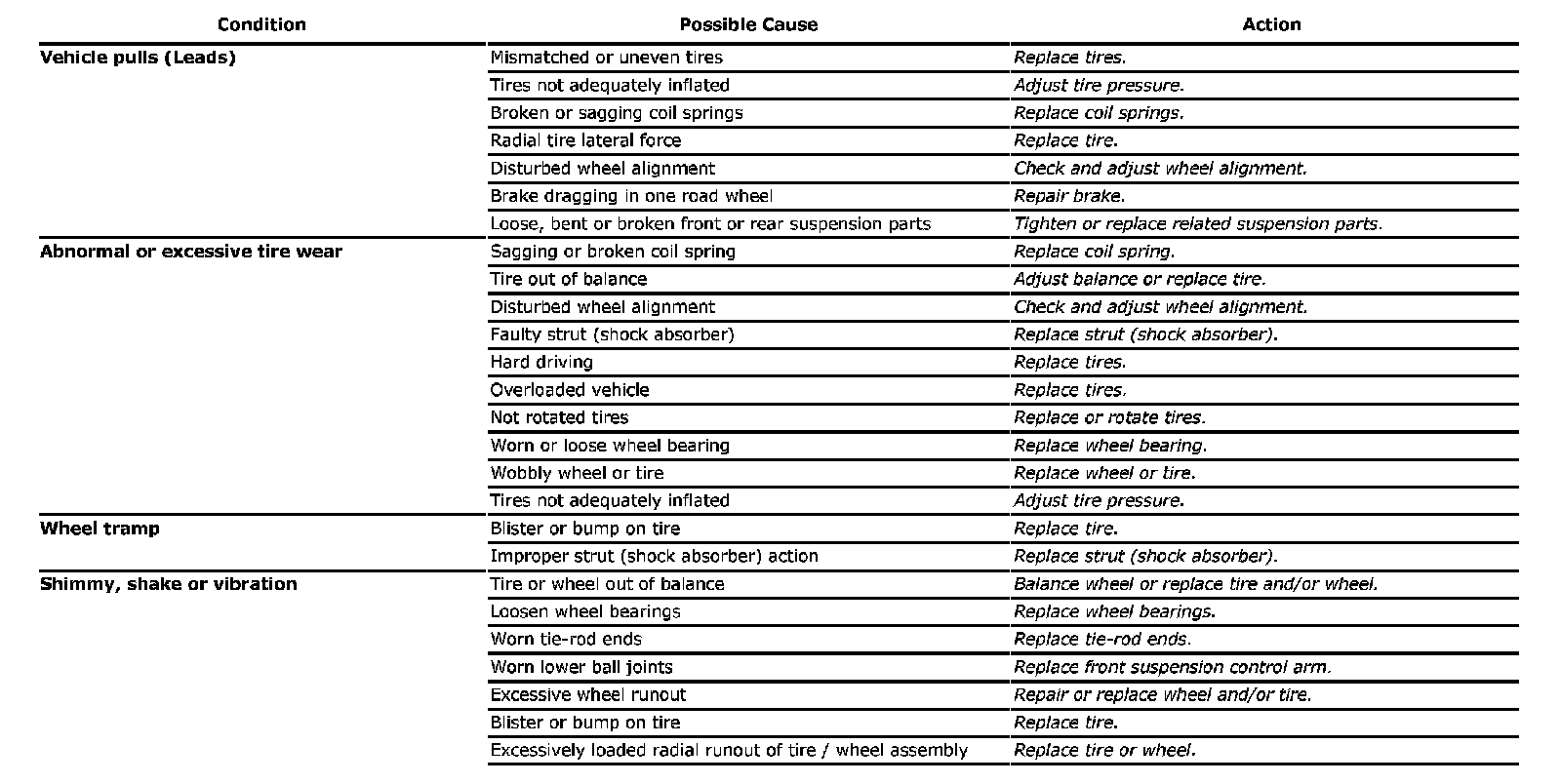

Suspension, Wheels and Tires Symptom Diagnosis (Part 1):

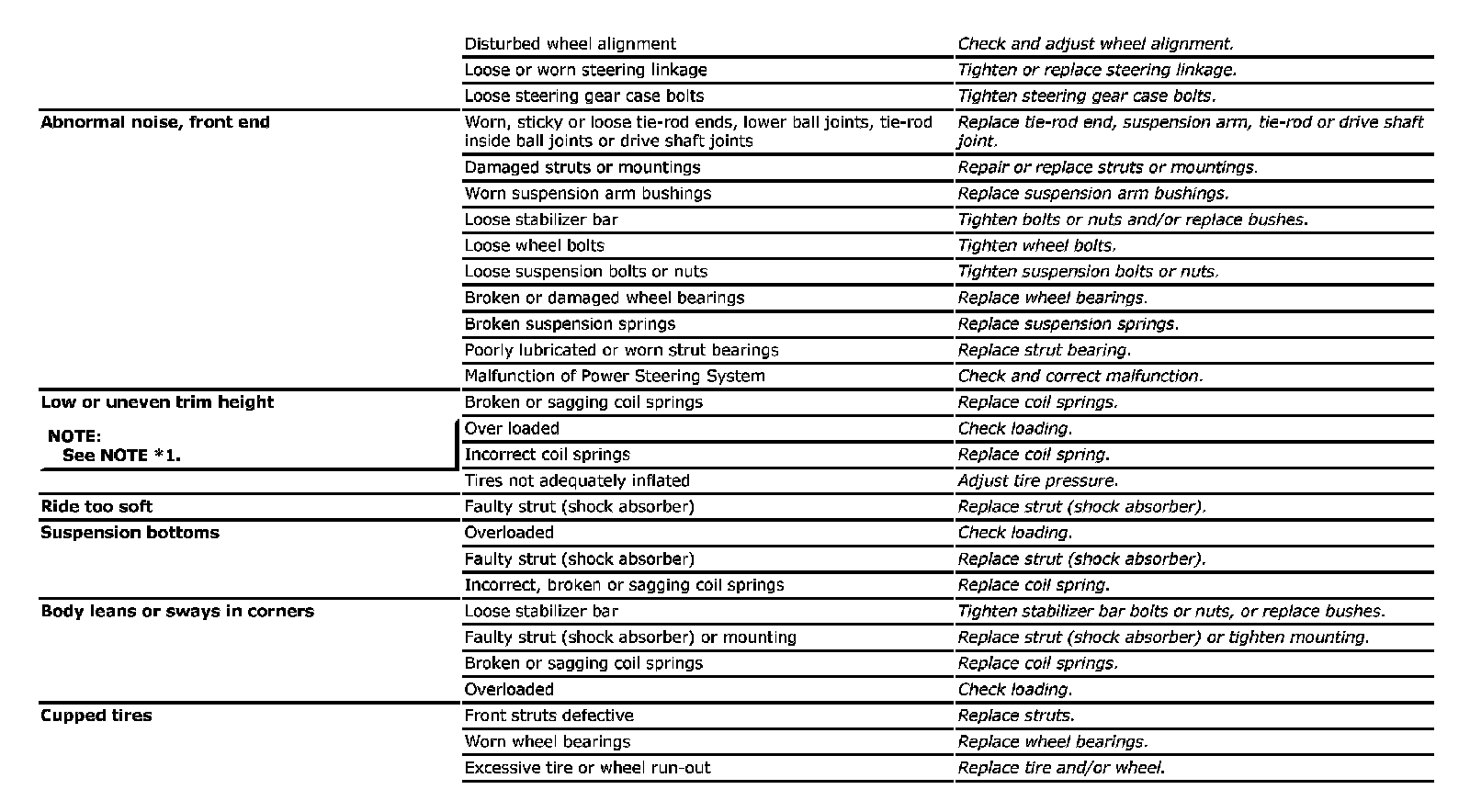

Suspension, Wheels and Tires Symptom Diagnosis (Part 2):

Suspension, Wheels and Tires Symptom Diagnosis (Part 3):

NOTE:
*1: Right-to-left trim height ("H") difference should be within 15 mm (0.6 in.) with curb weight. (same with rear side.)
