G Connectors

B: A/C Wire / F: Console Wire / G: Instrument Panel Harness / Q: A/B Wire

G: Instrument Panel Harness

B: A/C Wire / F: Console Wire / G: Instrument Panel Harness / Q:A/B Wire View:

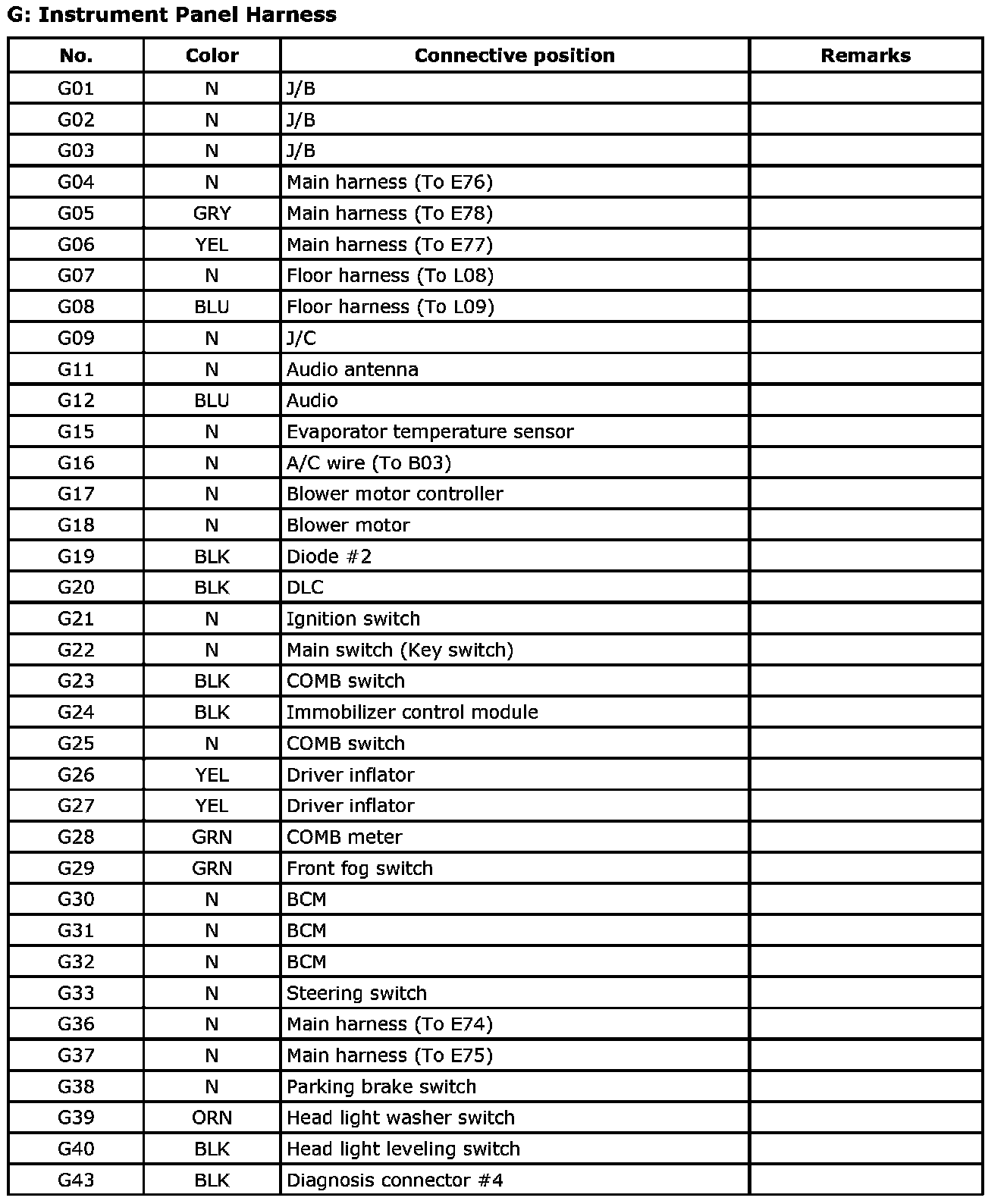

G: Instrument Panel Harness Index (Part 1):

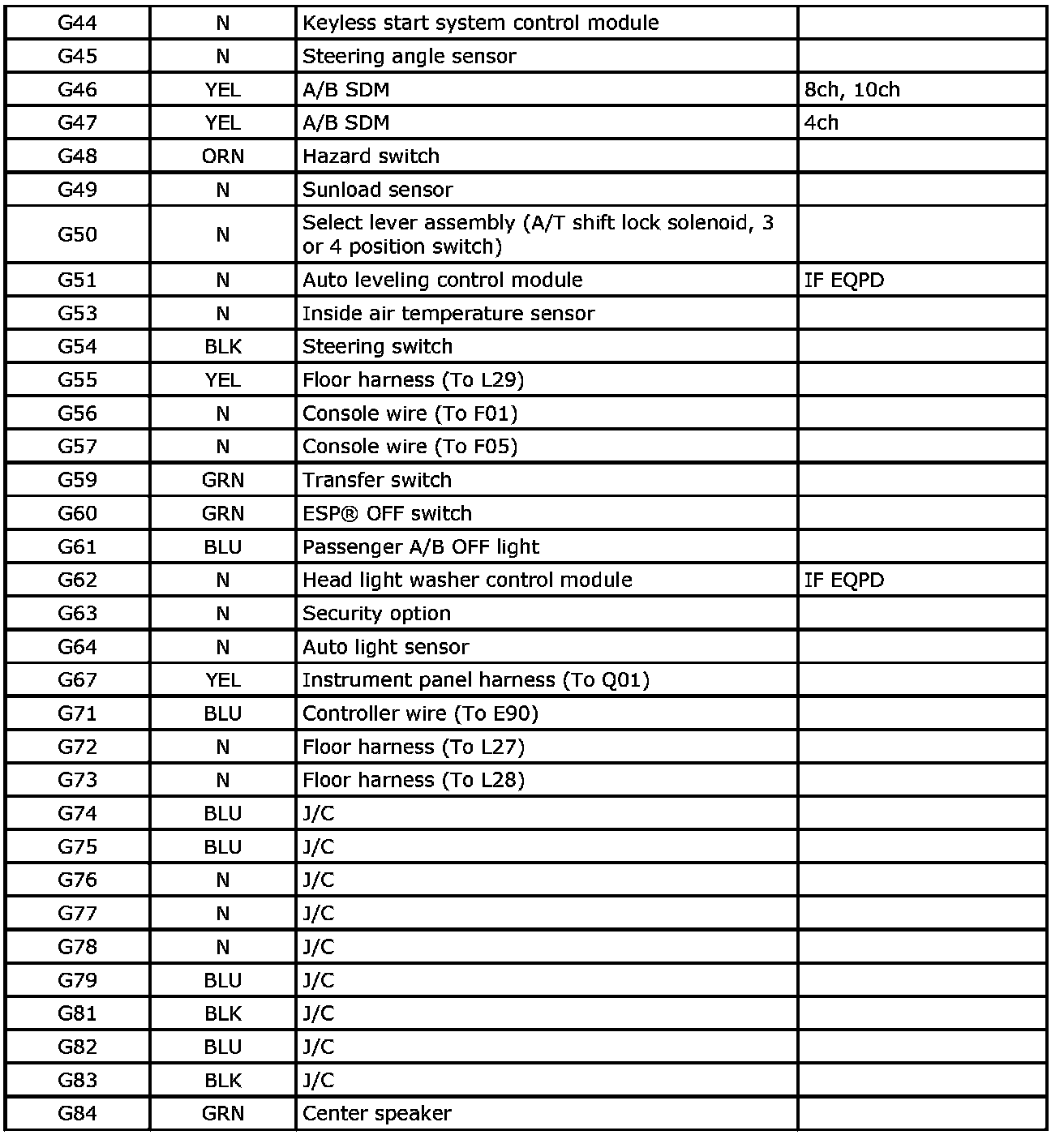

G: Instrument Panel Harness Index (Part 2):
