E Connectors

E: Main Harness, Front Height Sensor Wire

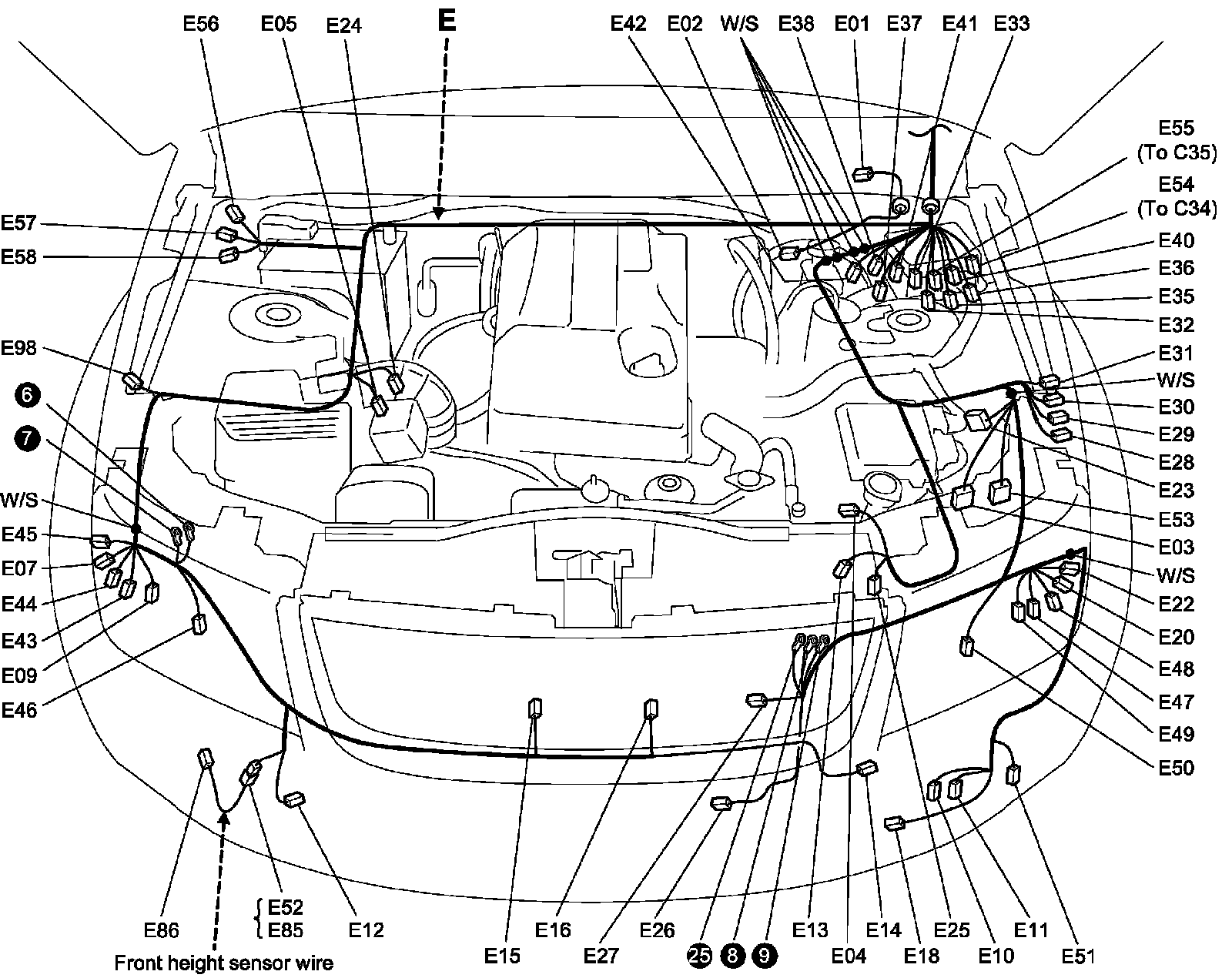

E: Main Harness, Front Height Sensor Wire View:

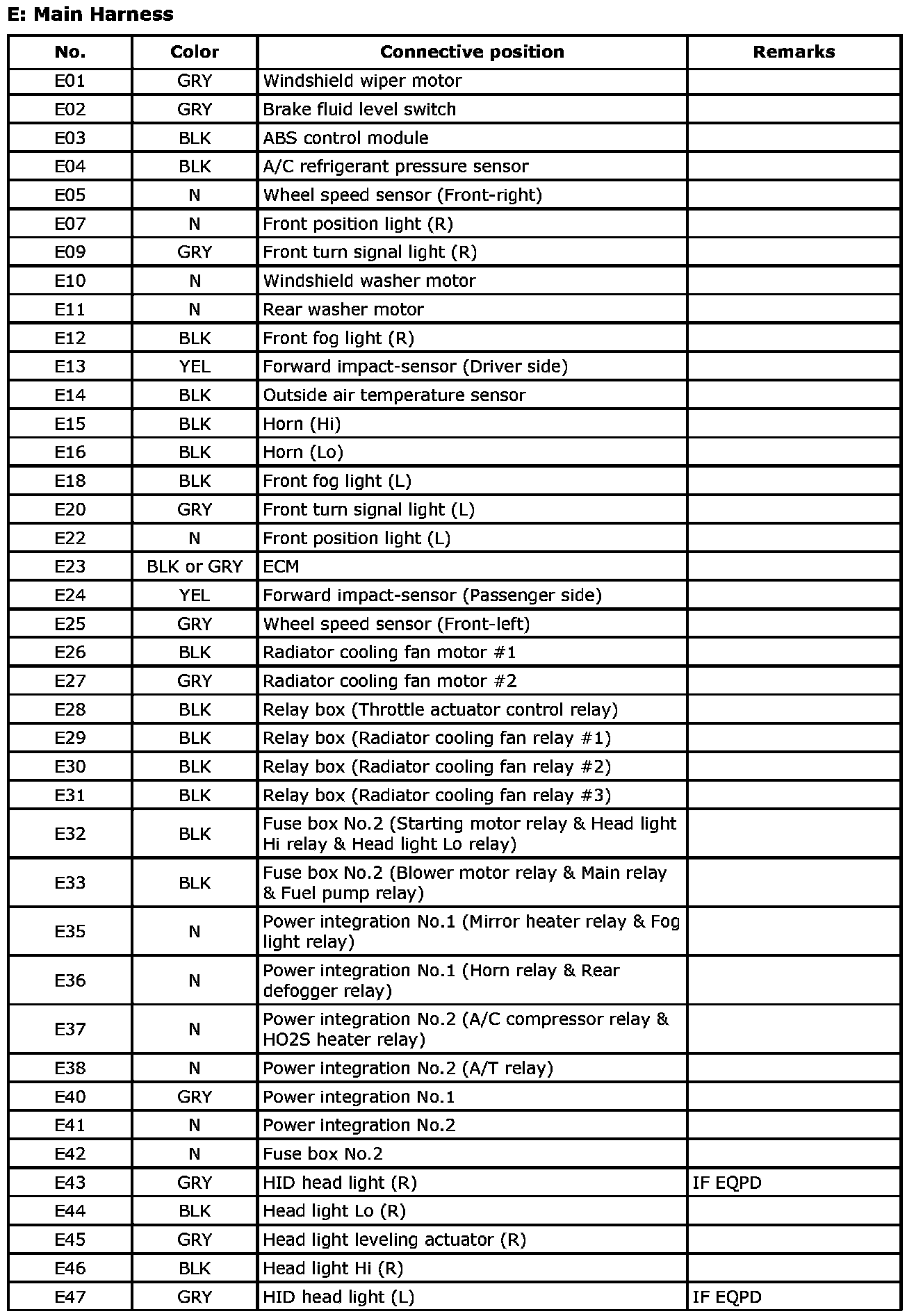

E: Main Harness Index (Part 1):

E: Main Harness Index (Part 2):

E: Front Height Sensor Wire Index:

Instrument Panel

E: Main Harness, Controller Wire

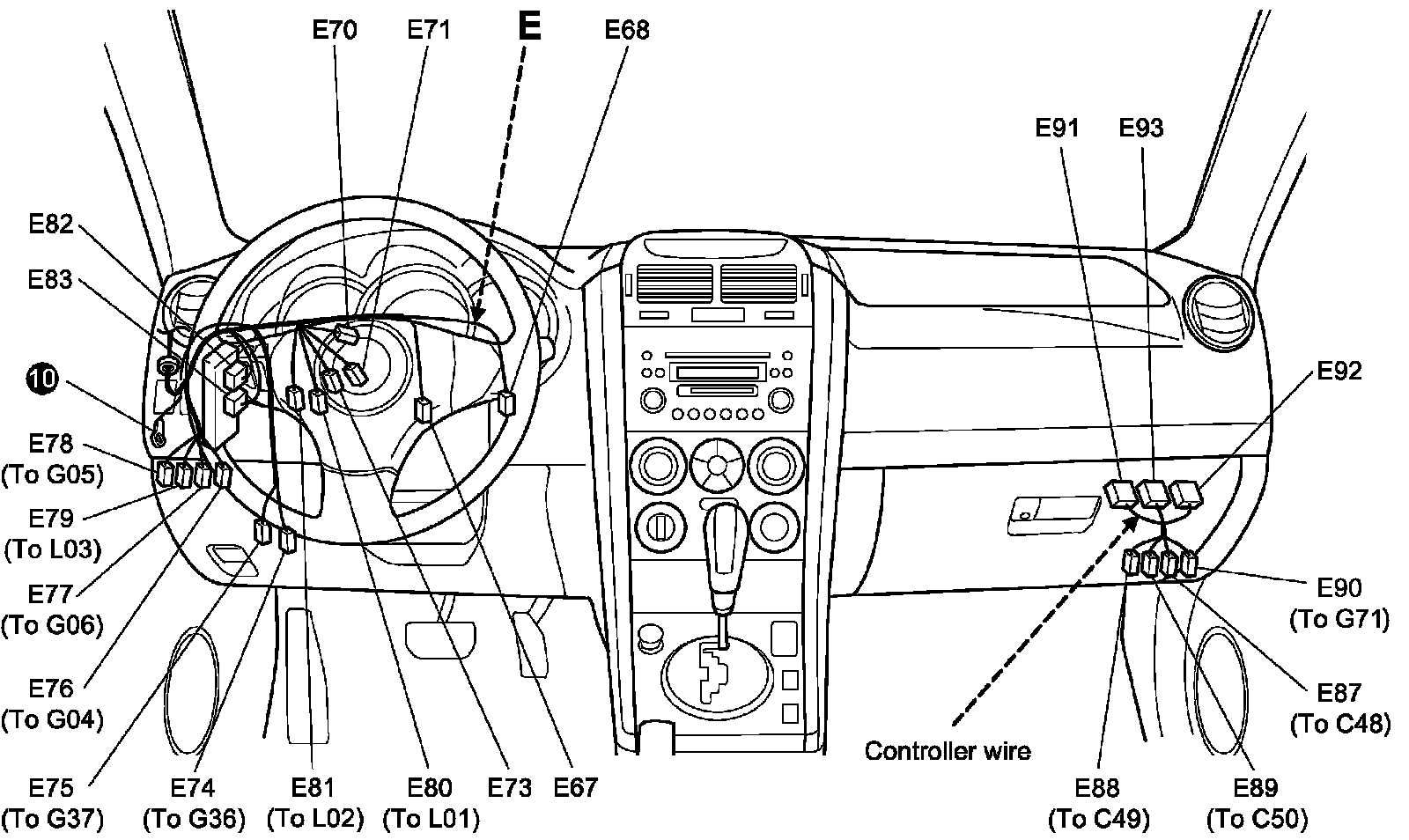

E: Main Harness, Controller Wire View:

E: Main Harness Index:

E: Controller Wire Index:
