DRL System Description

DRL System Description (If Equipped)

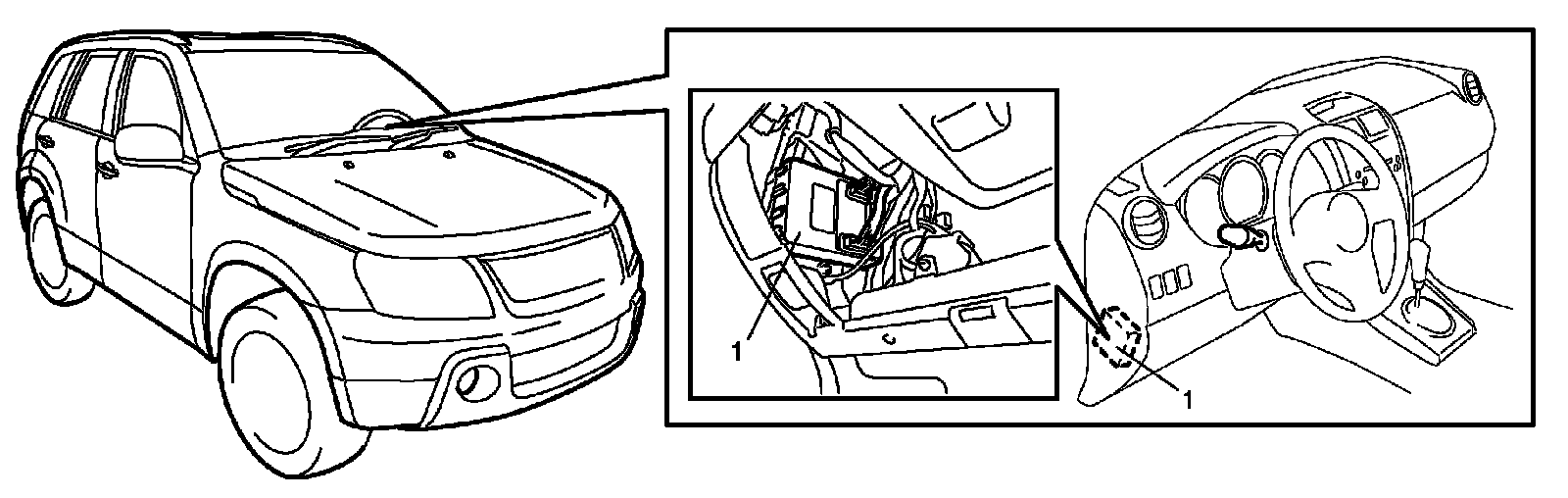

The DRL system is controlled by BCM (1). It lights headlights when following three conditions are met.

Conditions for DRL operation:
- The engine is running
- The lighting switch is at "OFF" position
- The parking brake is not applied
