Blower Motor: Service and Repair

Blower Motor Removal and Installation

Removal
1. Disconnect negative (-) cable at battery.
2. Disable air bag system referring to Disabling Air Bag System:Advanced Air Bag or Disabling Air Bag System:Except Advanced Air Bag.

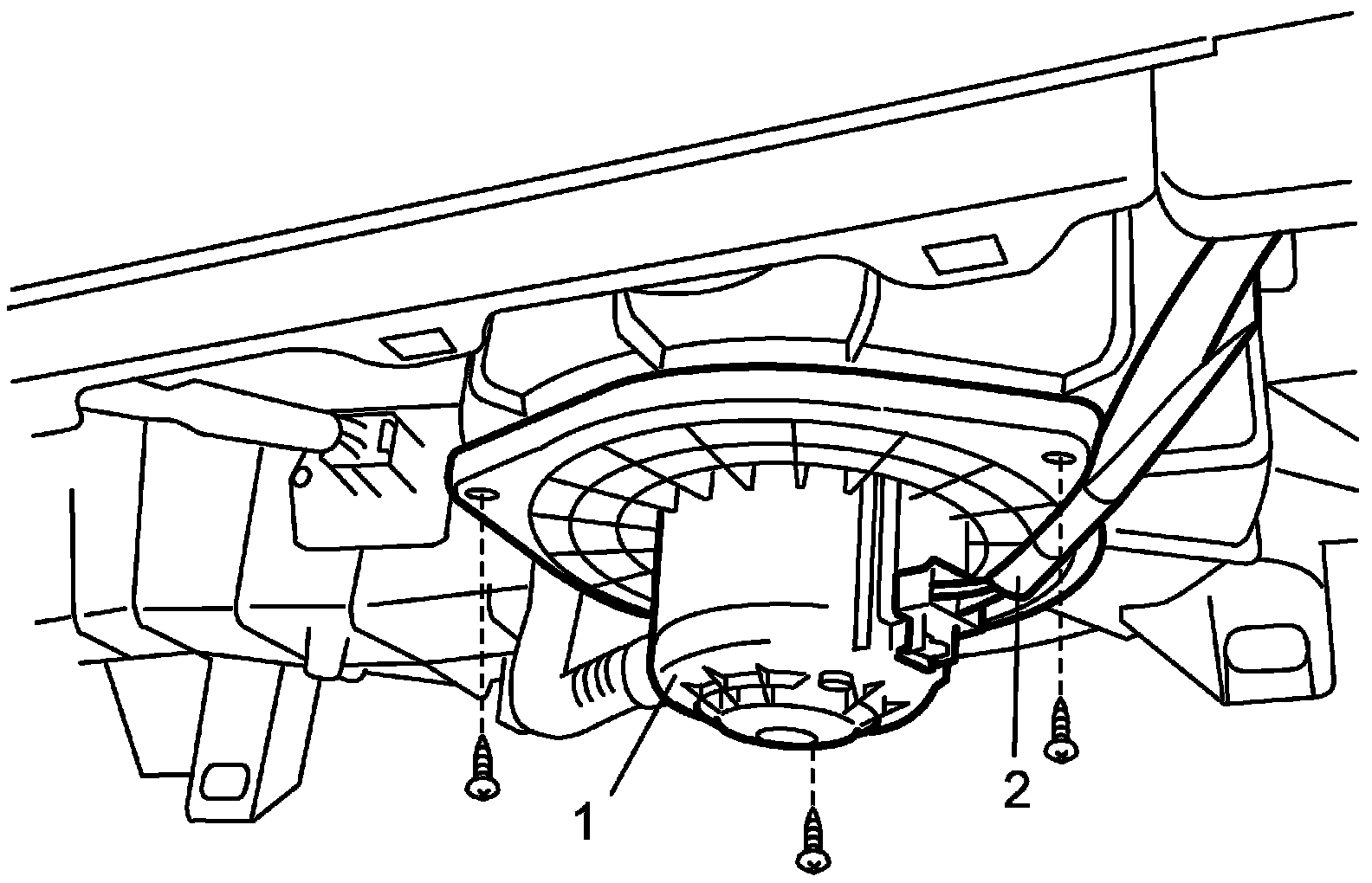

3. Disconnect blower motor lead wire (2) at coupler.
4. Remove blower motor (1) from HVAC unit.






Installation
1. Reverse removal procedure for installation.
2. Enable air bag system referring to Enabling Air Bag System:Advanced Air Bag or Enabling Air Bag System:Except Advanced Air Bag.
