Electronic Stability Program (ESP)

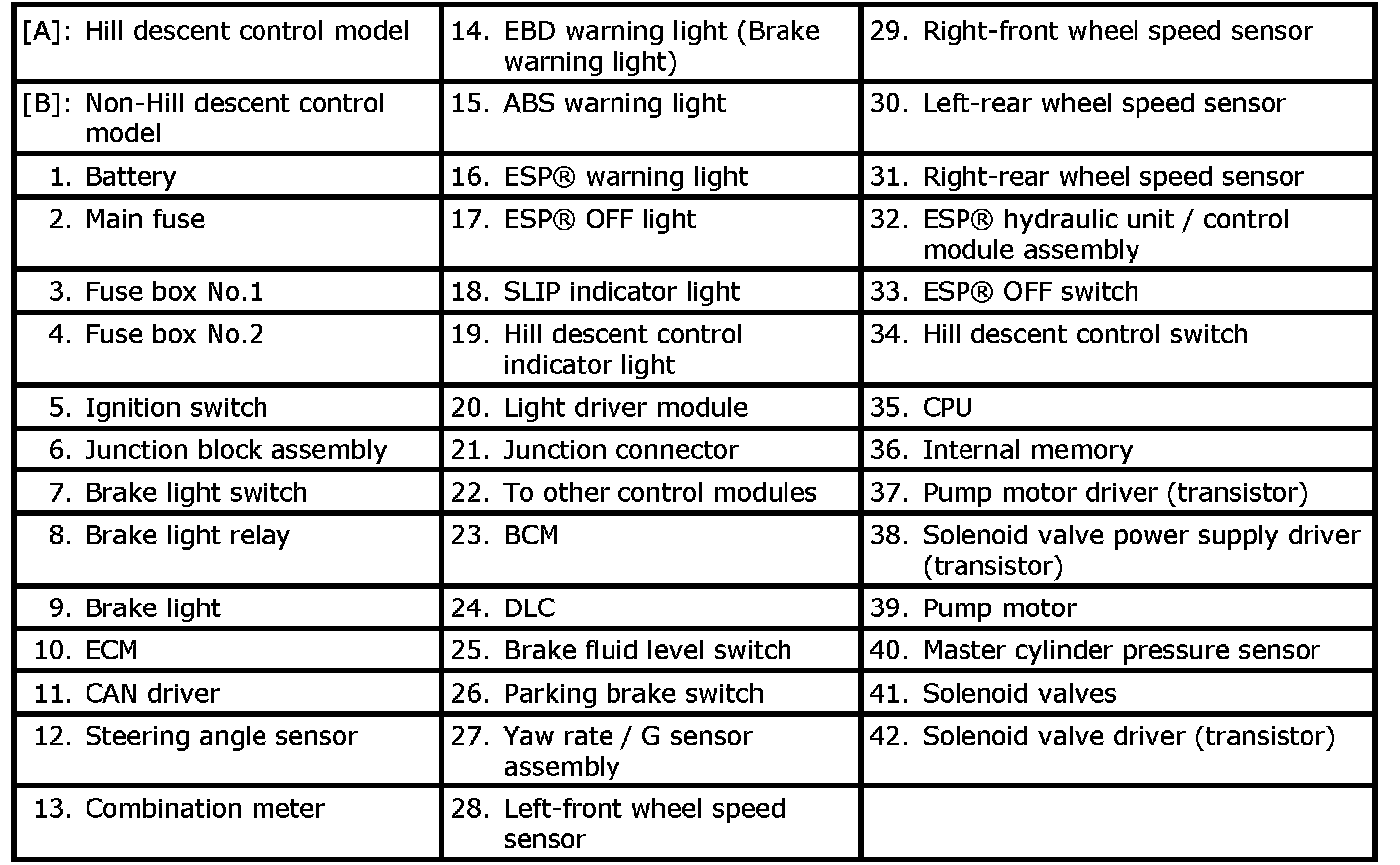

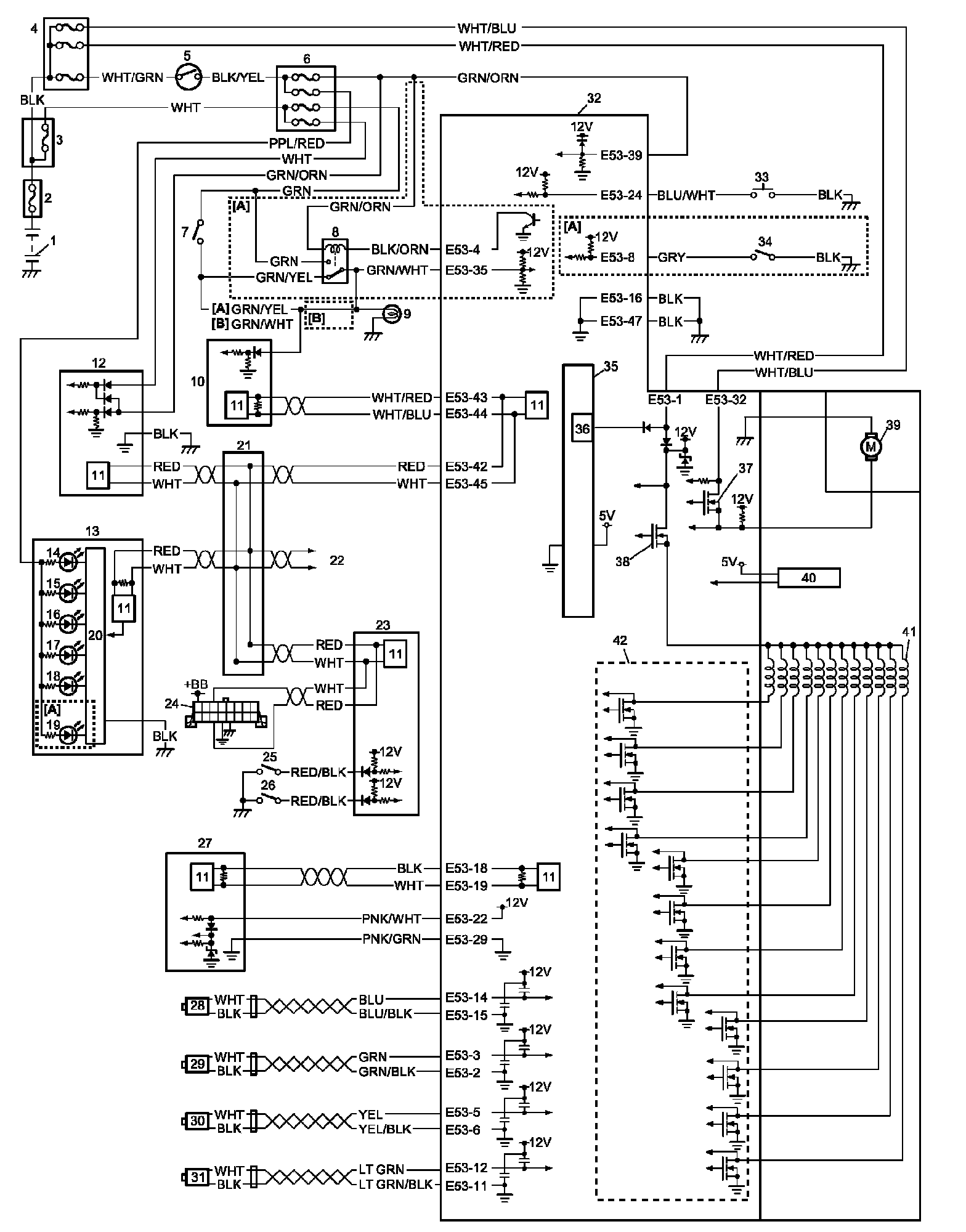

Electronic Stability Program Wiring Circuit Diagram

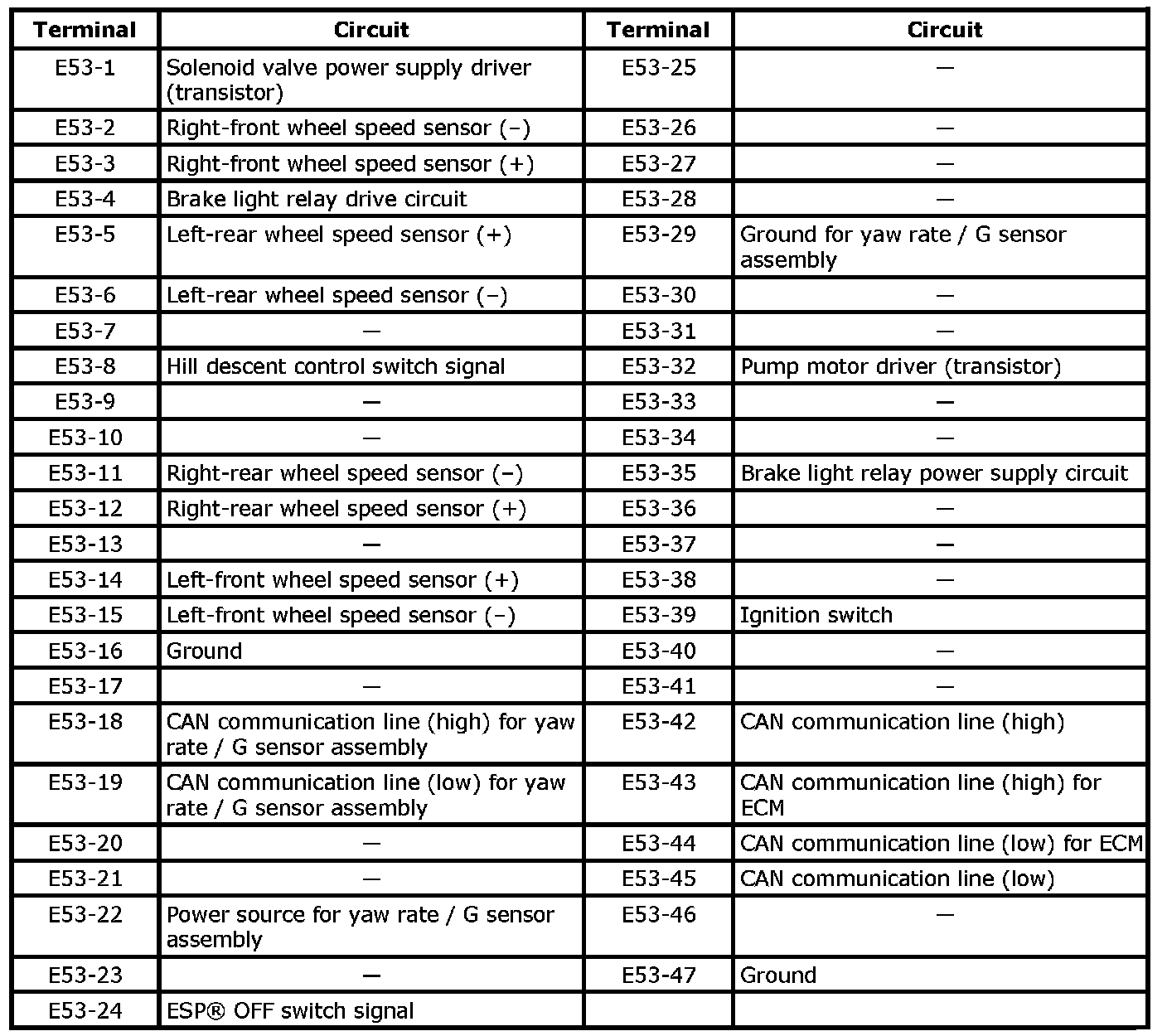

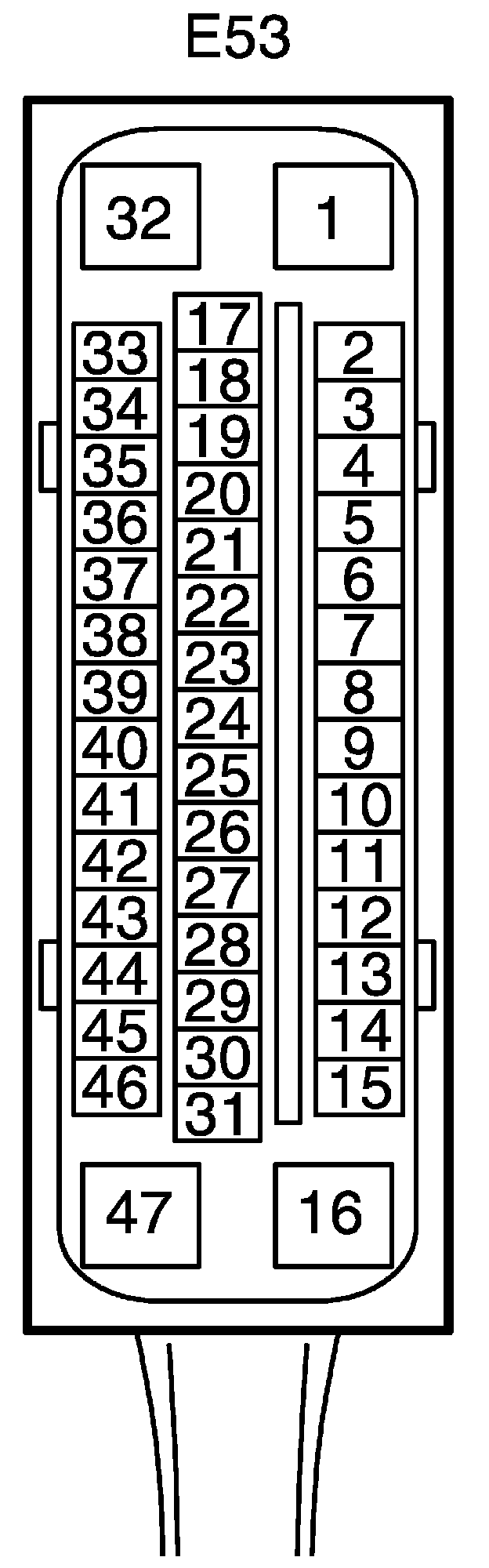

Terminal Arrangement of ESP(R) Control Module Connector (Viewed from Terminal Side)
