BCM Power Circuit and Ground Circuit Check

BCM Power Circuit and Ground Circuit Check

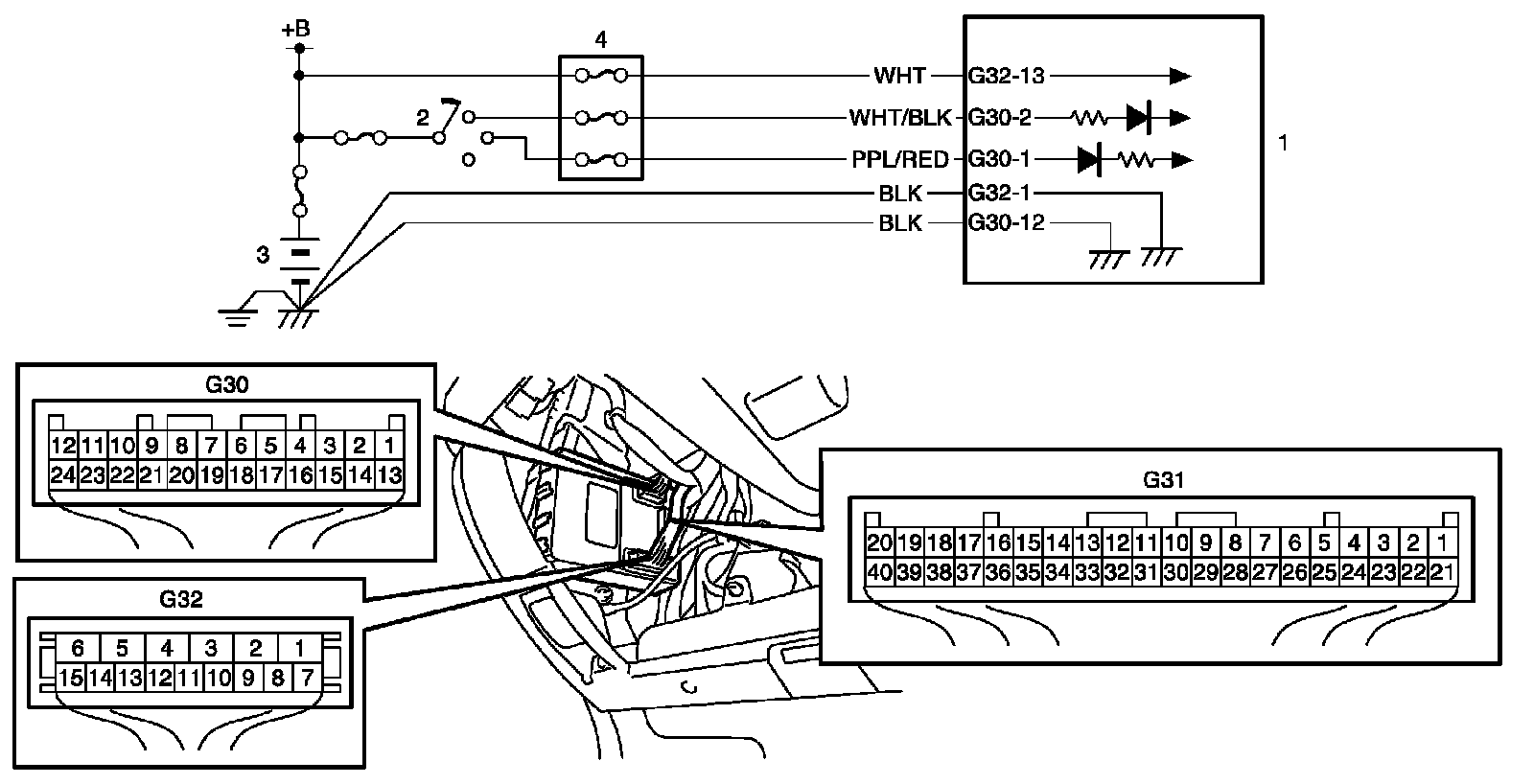

Wiring Diagram


Wiring Diagram:

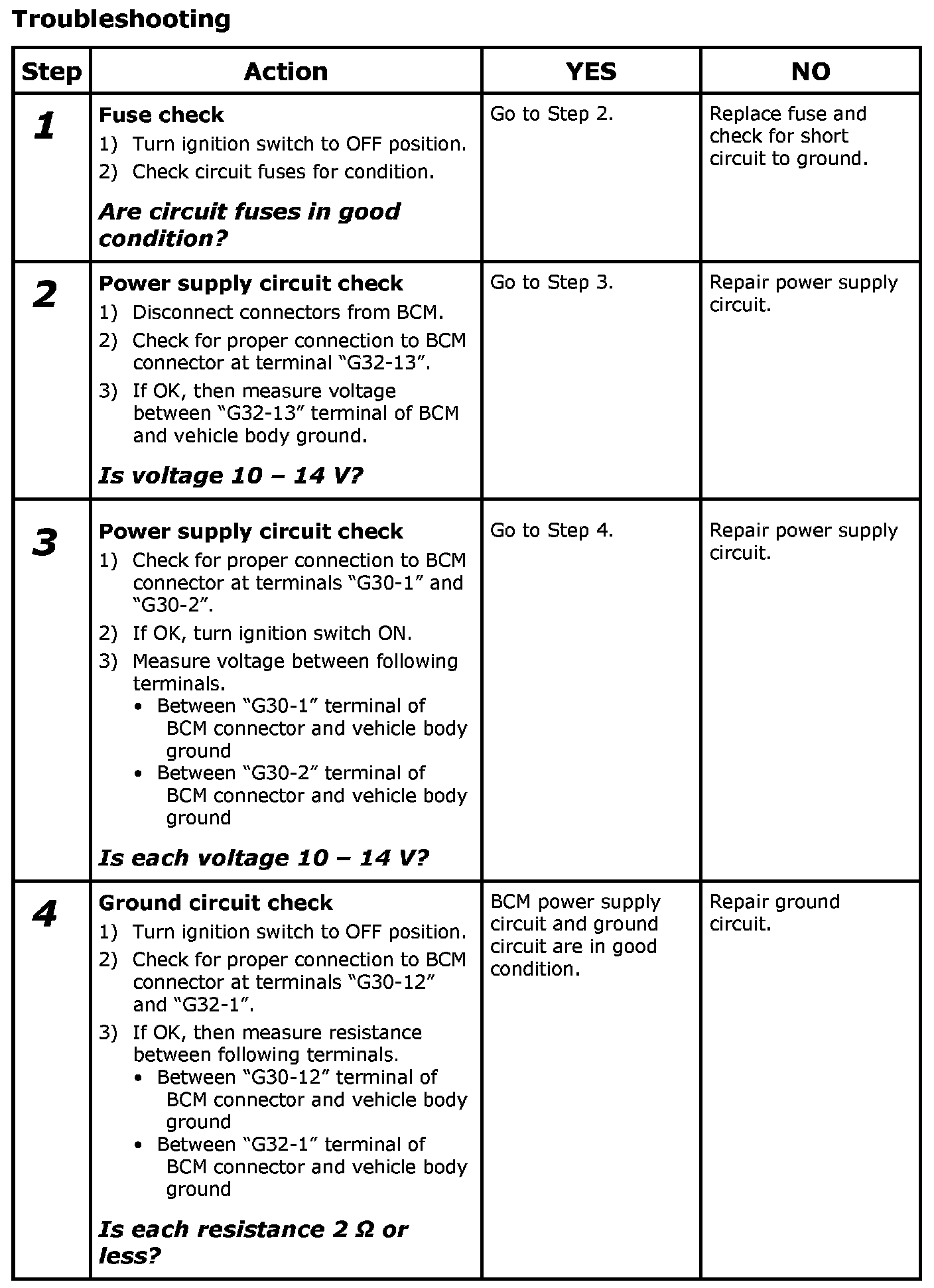

Troubleshooting


Step 1-4:
