Remote Control: Service and Repair

Remote Audio Control Switch Removal and Installation (If Equipped)

Removal

1. Remove steering wheel.

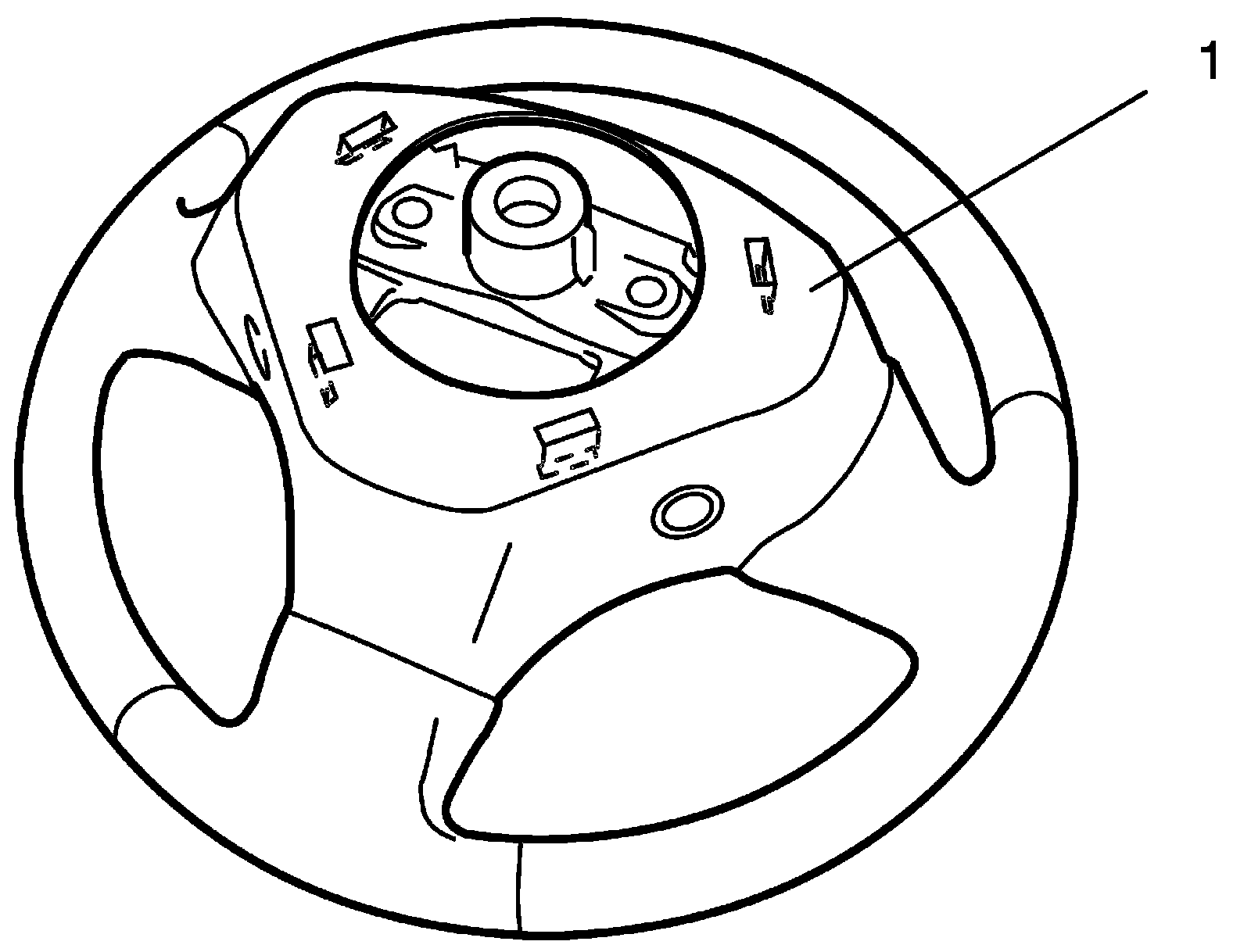

2. Remove steering wheel cover (1) from steering wheel.

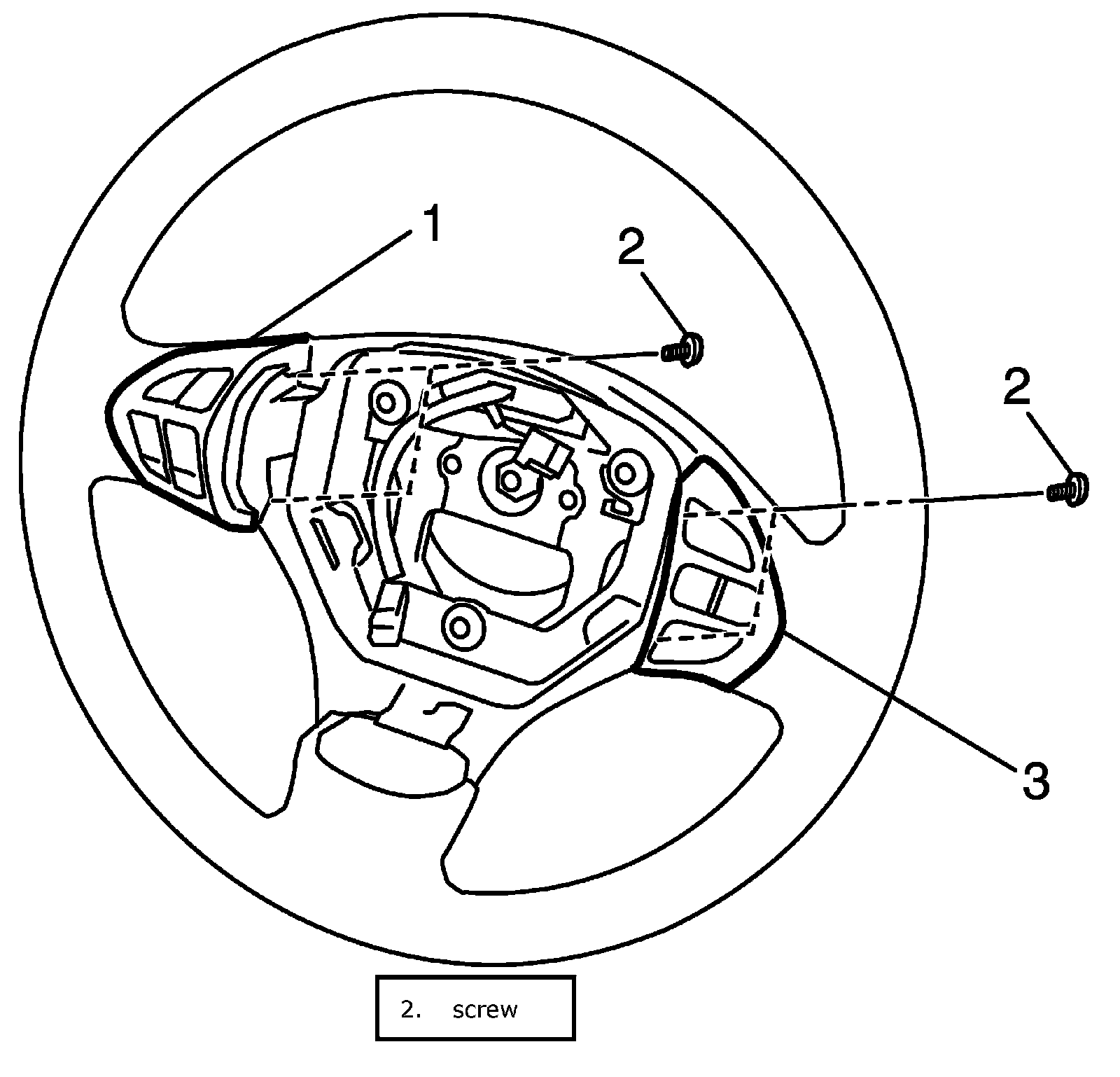

3. Remove remote audio control switch (1) with cruise control switch (3) (if equipped).







Installation

Reverse removal procedure for installation.
