EVAP-Leak-Check Model
DTC P2228 / P2229 (EVAP-Leak-Check Model)DTC Detecting Condition and Trouble Area

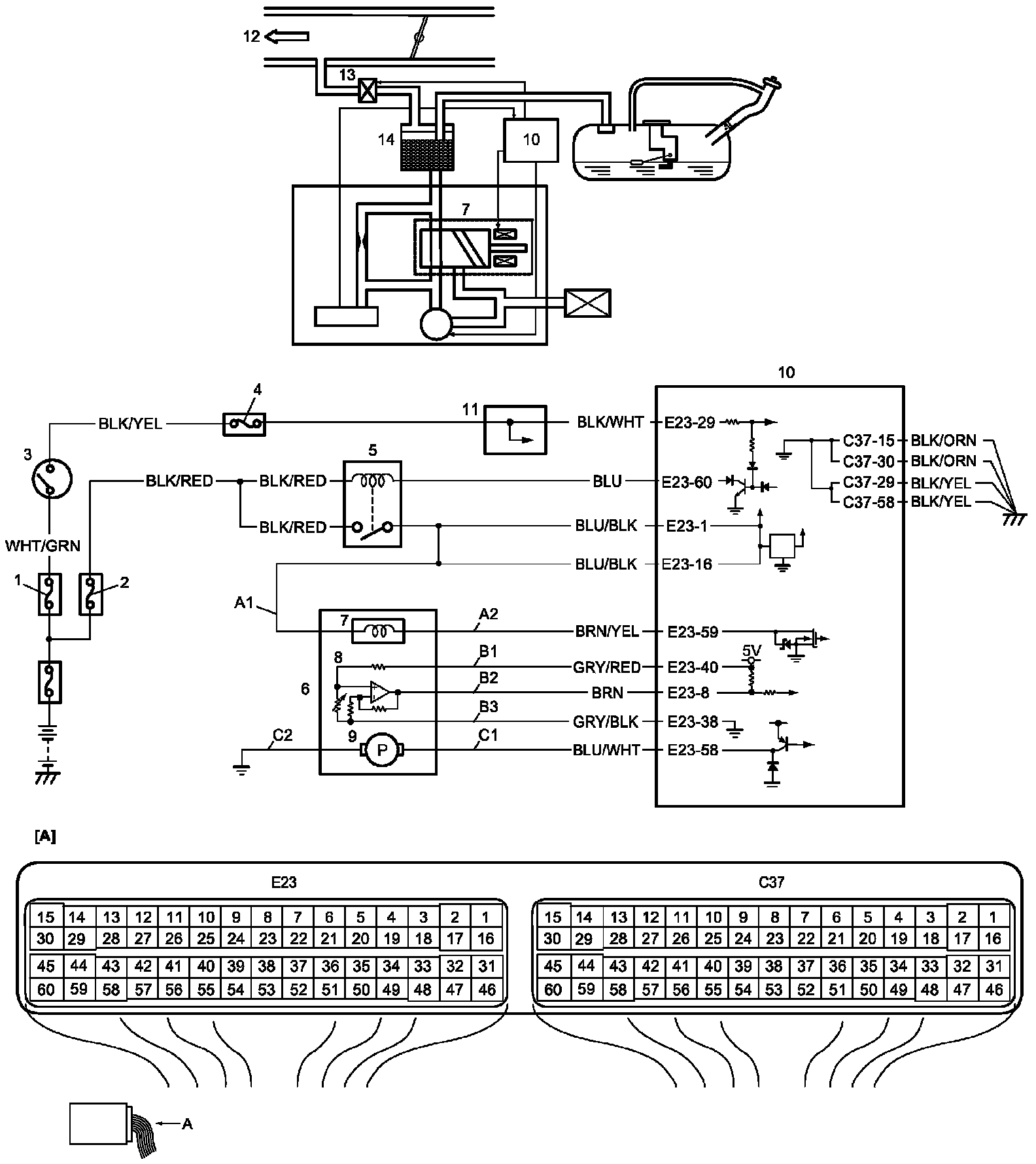

Wiring Diagram
Wiring Diagram:
System Description
Barometric pressure is observed by EVAP leak check pressure sensor in EVAP leak check module.
DTC Confirmation Procedure
1. Run engine at idle speed for 1 min.

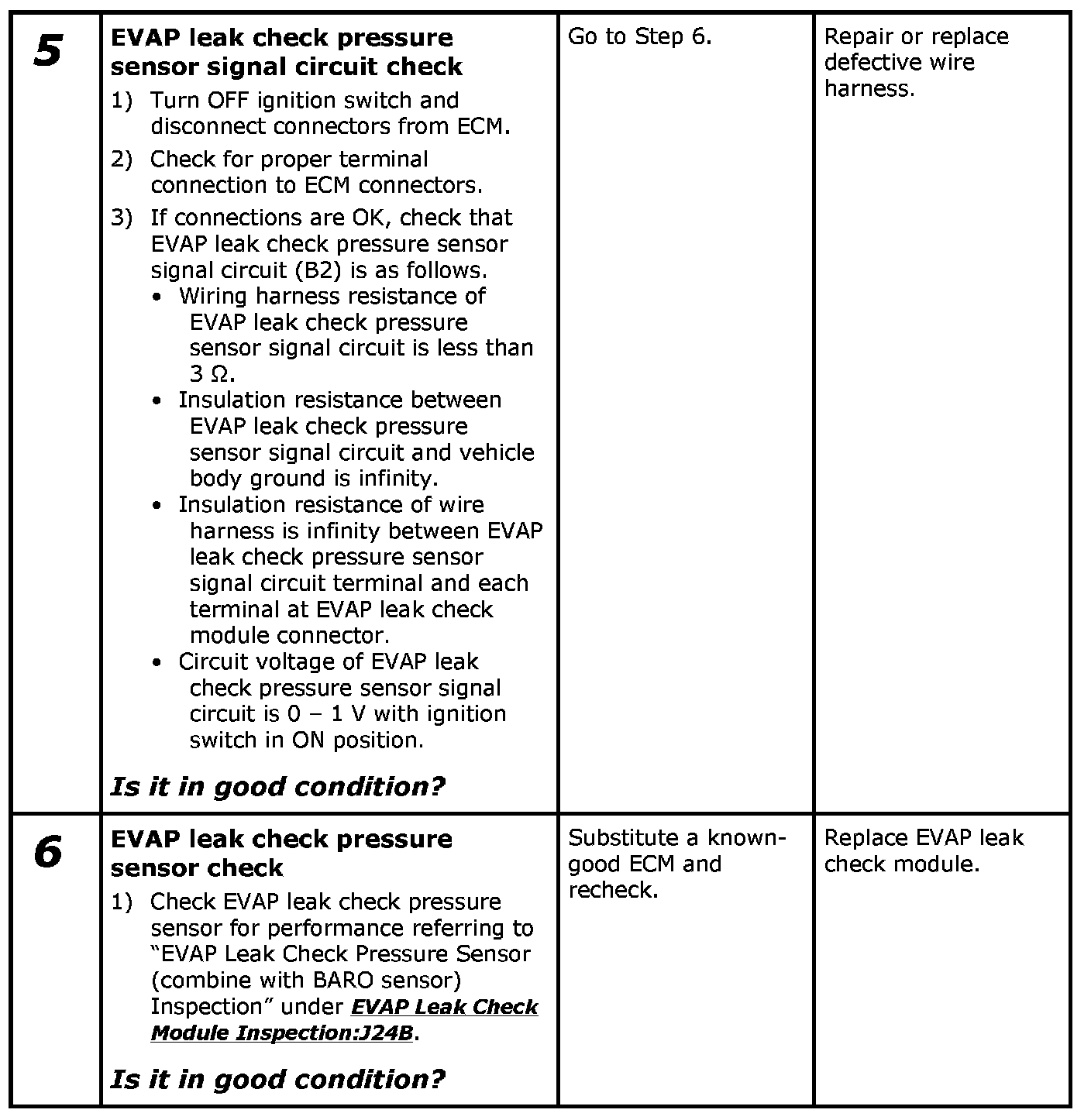

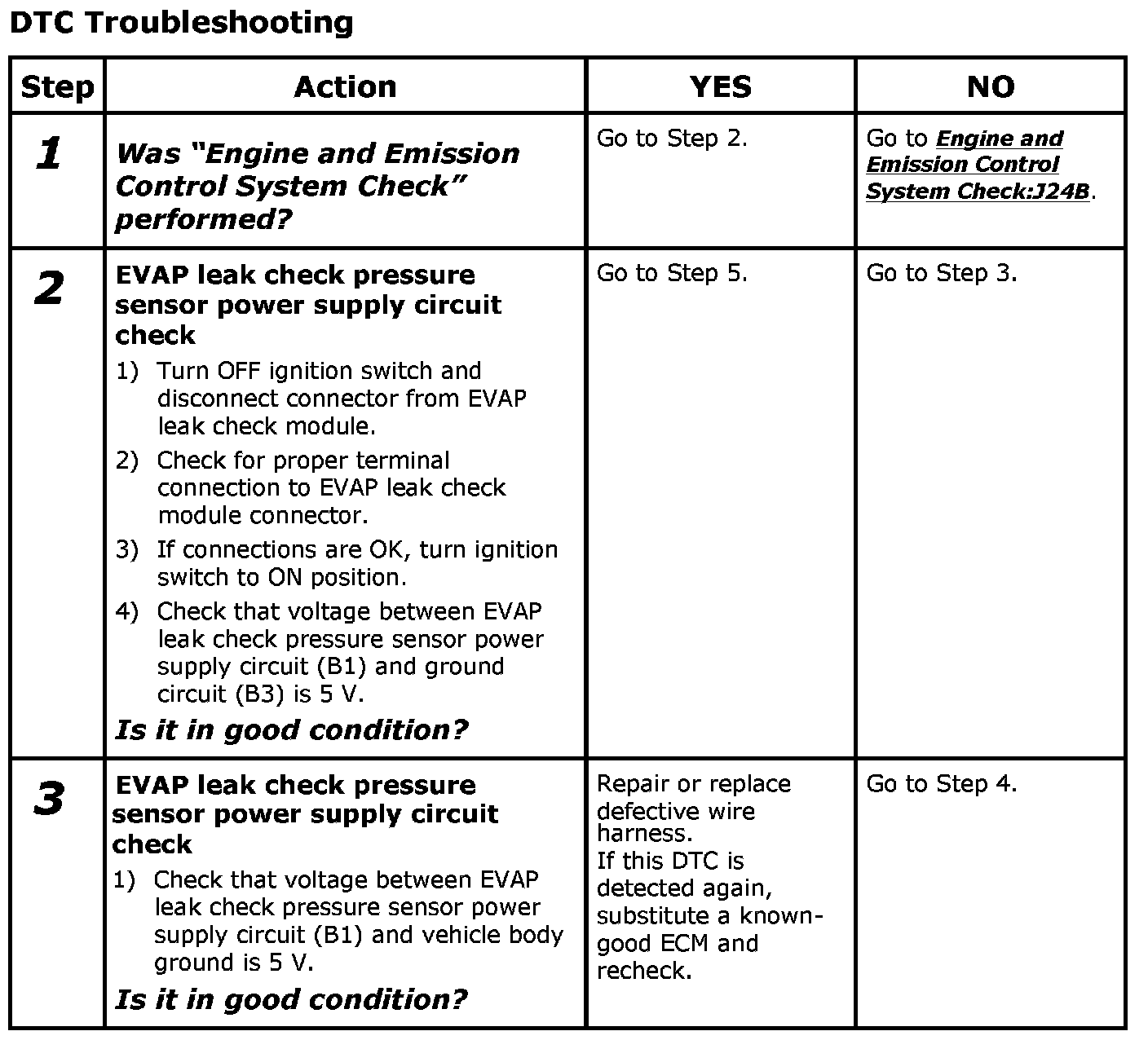

DTC Troubleshooting
Step 1-3:

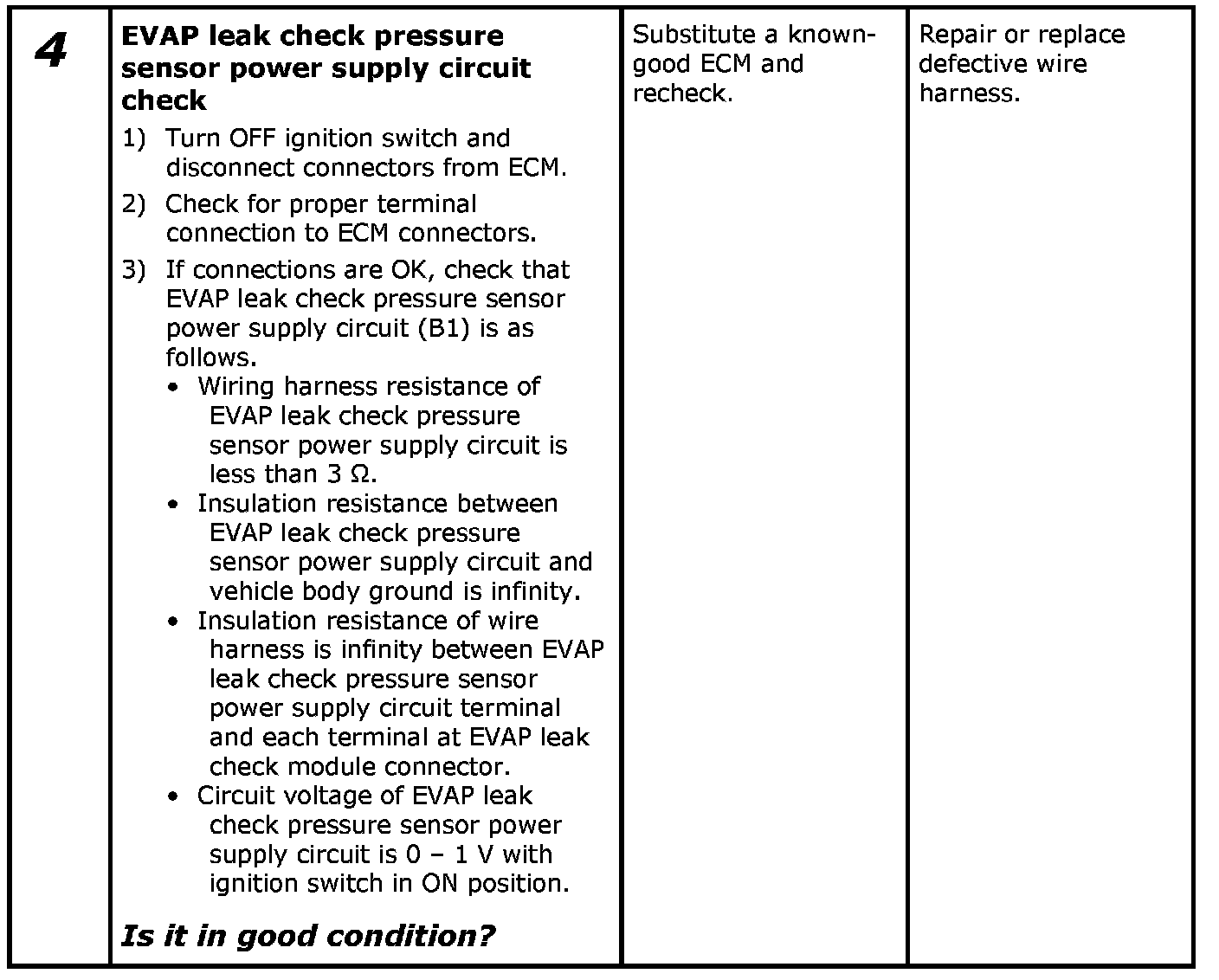

Step 4:
