Immobilizer Control System

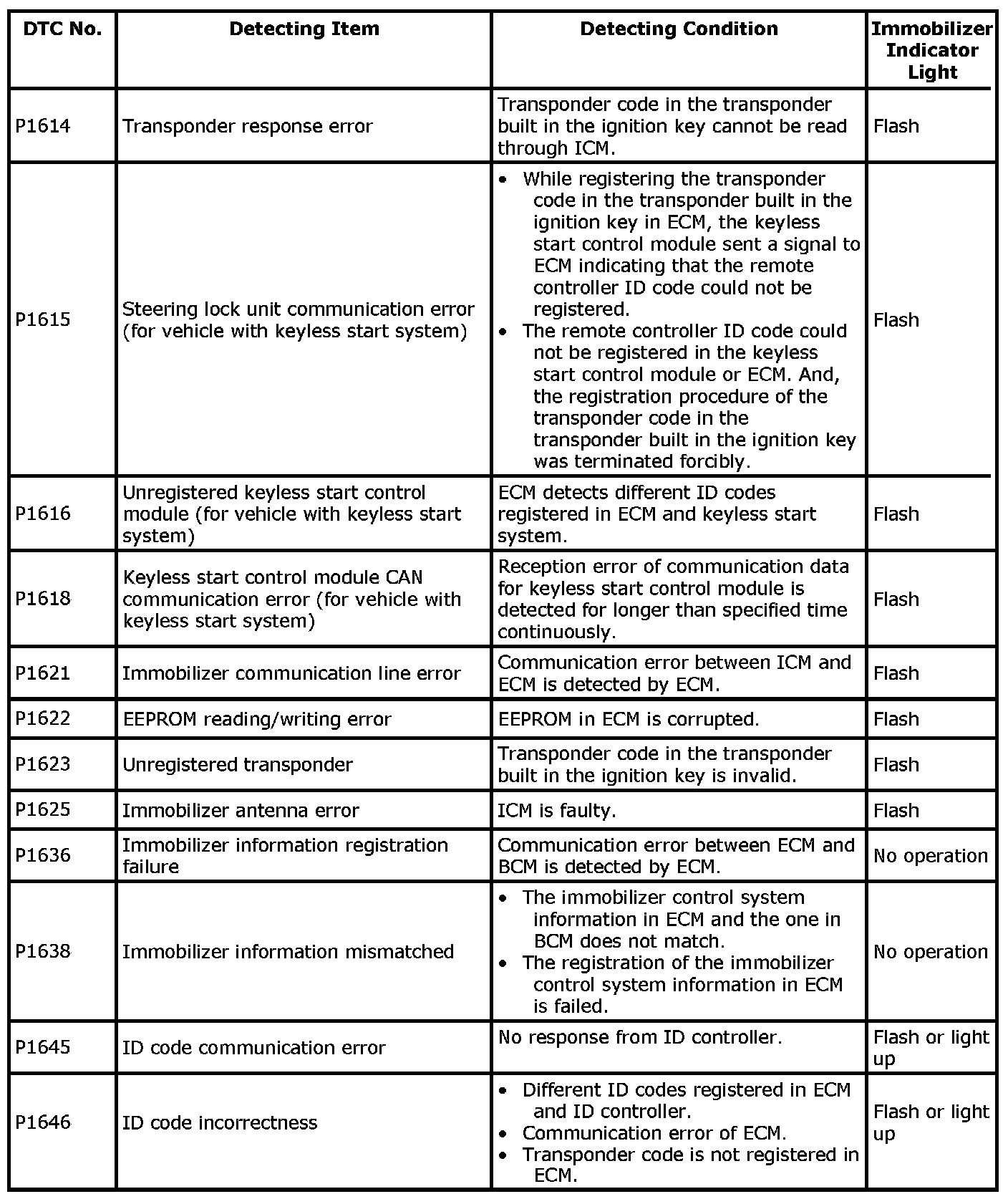

DTC Table

ECM

NOTE: ECM detects diagnostic trouble code (DTC). ICM does not.

P1614-P1646:

NOTE: If any DTC other than the above DTCs is detected, refer to DTC Table:N32A Engine General Information and Diagnosis or DTC Table:J24B Engine General Information and Diagnosis
