5-Speed Automatic Transmission

DTC Table

NOTE:
^ With the CAN communication OBD generic scan tool, DTC No. With delta (L) mark in the following table can not be read.
^ For details of D/C (driving cycle), refer to On-Board Diagnostic System Description: 5 A/T. Description of On-Board Diagnostics

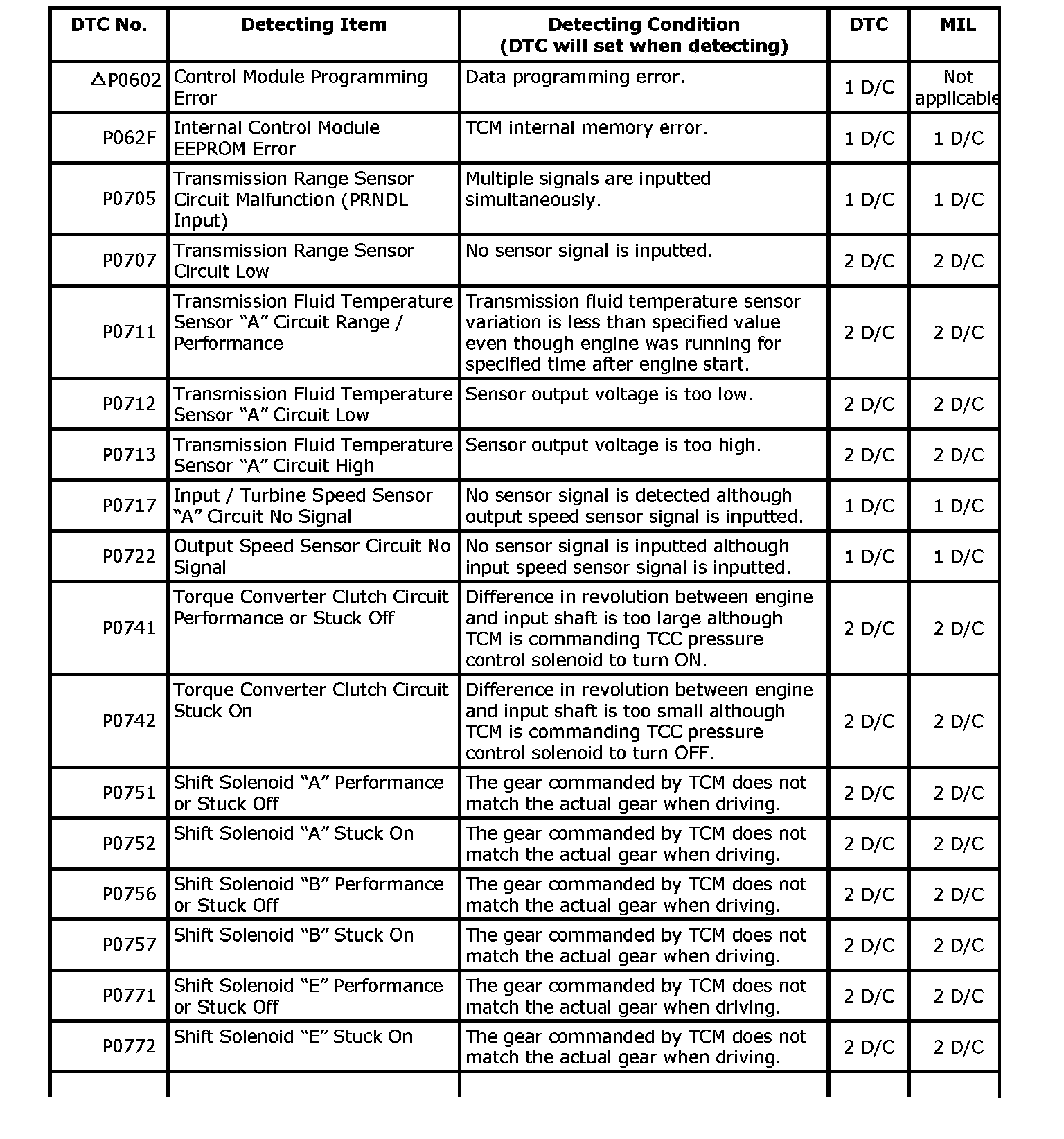

P0602-P0772:

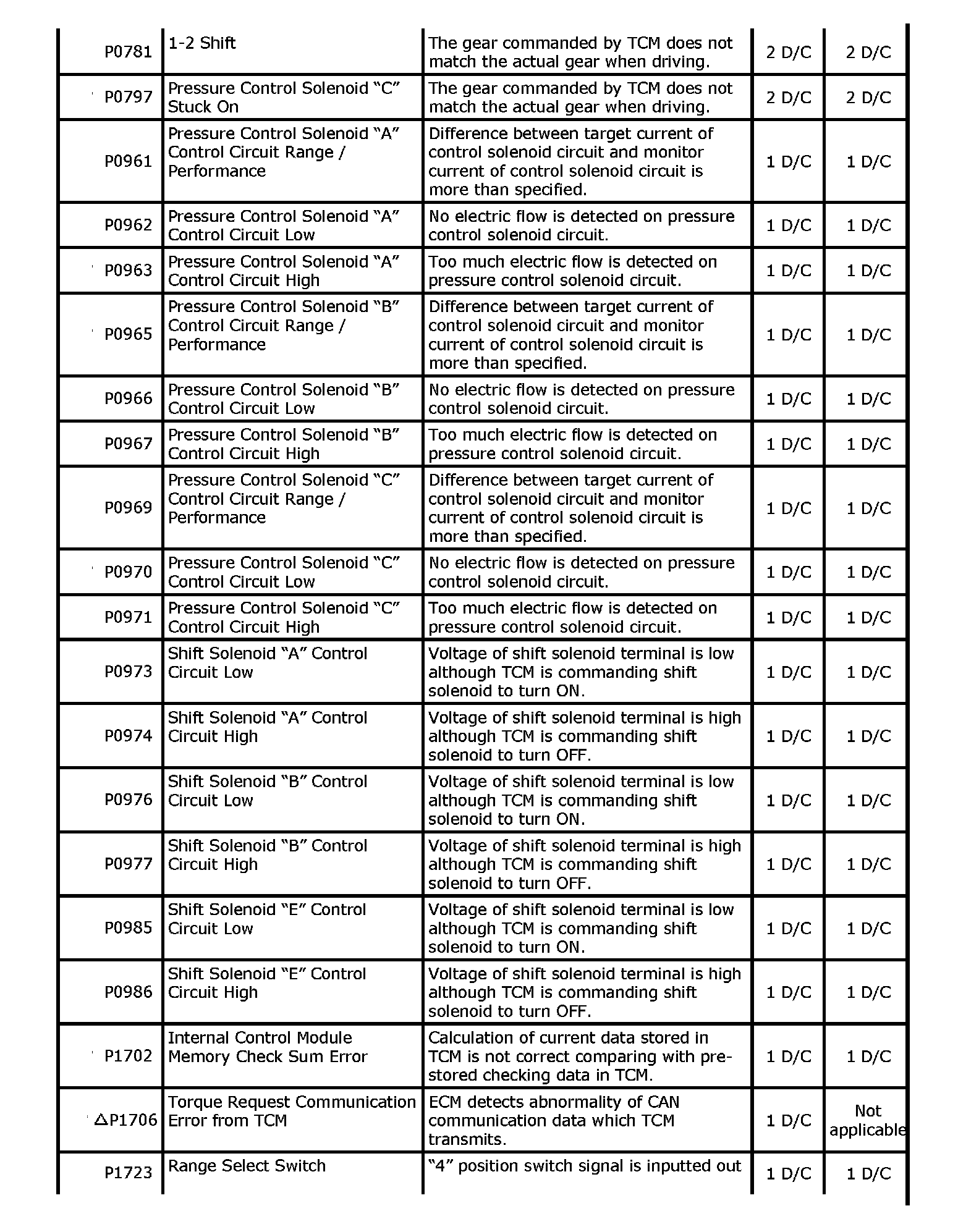

P0781-P1723:

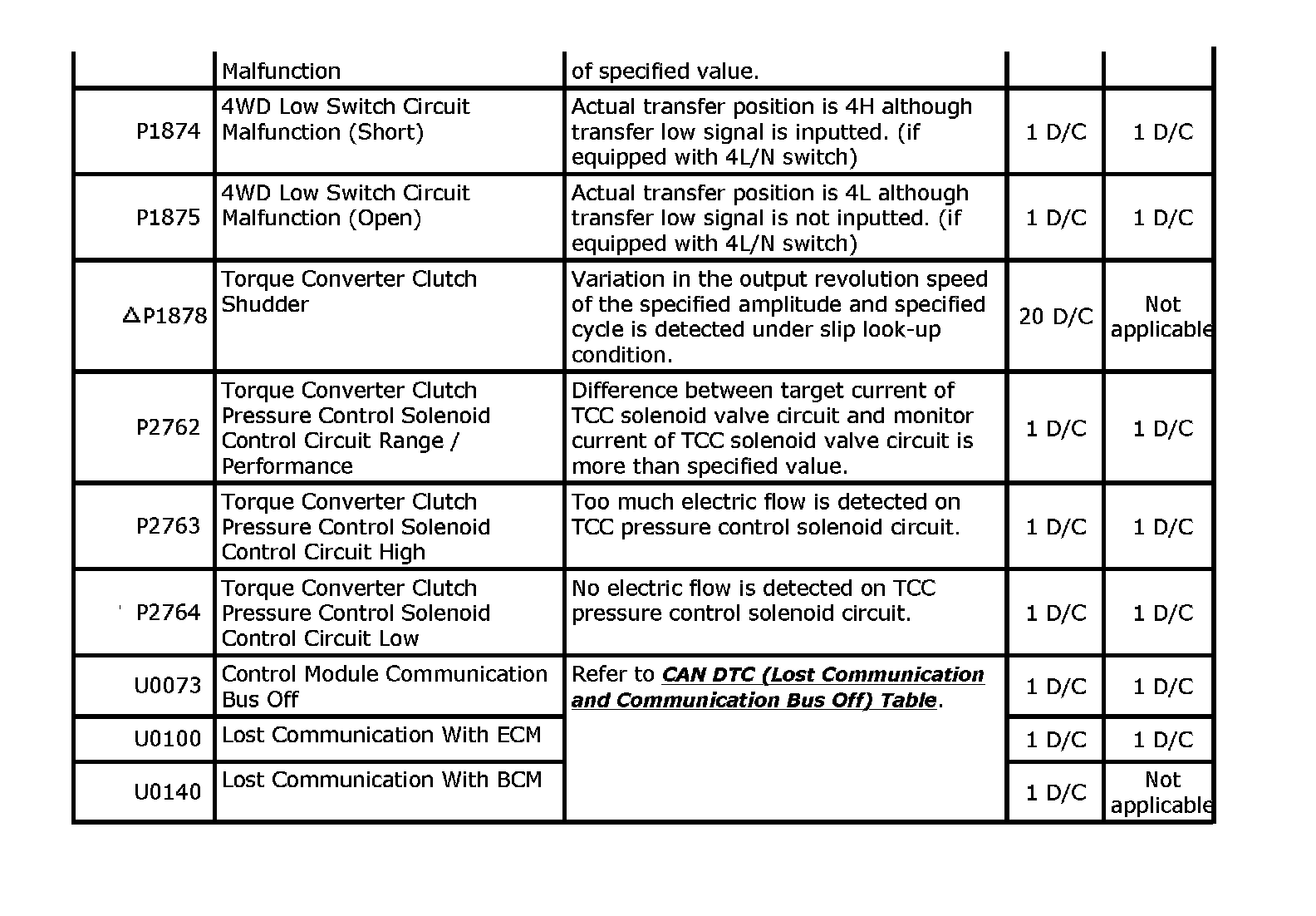

P1874-P2764 / U0073-U0140:
