BCM (Body Control Module): Removal and Installation: Removal

NOTE: If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to [ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT ].

Disconnect the battery negative terminal.
Remove the lower instrument panel LH. Refer to [INSTRUMENT PANEL ASSEMBLY: EXPLODED VIEW ]
Remove the knee protector. Refer to [INSTRUMENT PANEL ASSEMBLY: EXPLODED VIEW ]
Remove the BCM screws and release the BCM.

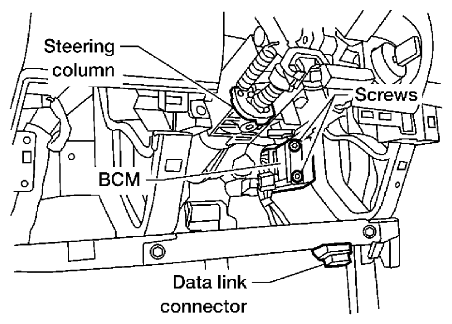

Fig 1: Identifying Steering Column, BCM And Data Link Connector
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the BCM connectors and then remove the BCM.
