2-Pole Lift

WARNING:
  • When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
  • When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, or fuel lines.

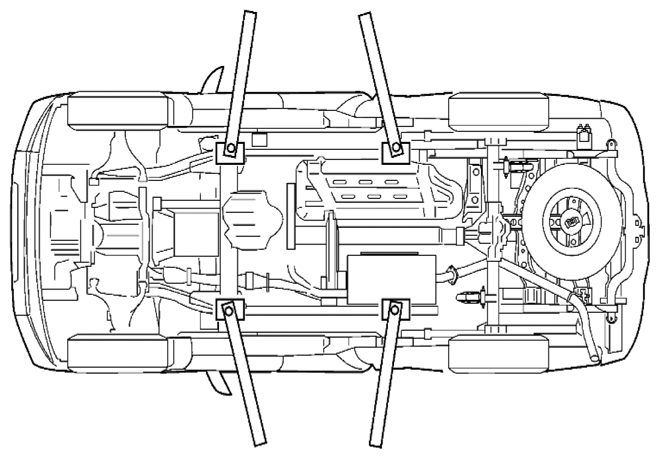

    Fig 1: Identifying Lifting Point - 2-Pole Lift
    G06443856Courtesy of SUZUKI OF AMERICA CORP.
