Water Control Valve: Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Installation is in the reverse order of removal.

Water Control Valve

Install water control valve by making rubber ring (1) groove fit to water control valve flange (A) around the whole circumference.

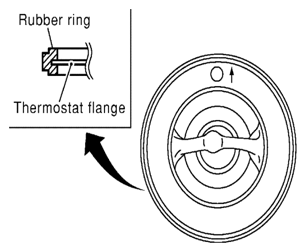

Fig 1: Installing Thermostat With Making Rubber Ring Groove Fit To Thermostat Flange With Whole Circumference
Install water control valve with jiggle valve facing upwards. The position deviation may be within the range of 20°.

Fig 2: Installing Thermostat With Jiggle Valve Facing Upwards
Install the engine coolant temperature sensor if removed.
Use Genuine RTV Silicone Sealant or equivalent.
