ABLS: Wiring Diagram

Fig 1: ABLS - Wiring Diagram (1 Of 8)

G06446200

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: ABLS - Wiring Diagram (2 Of 8)

G06446201

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: ABLS - Wiring Diagram (3 Of 8)

G06446202

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: ABLS - Wiring Diagram (4 Of 8)

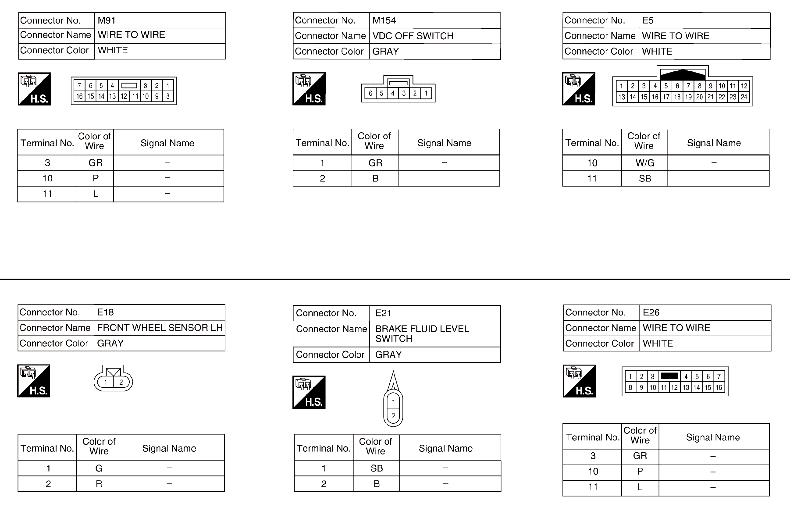

G00500290

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: ABLS - Wiring Diagram (5 Of 8)

G06446204

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: ABLS - Wiring Diagram (6 Of 8)

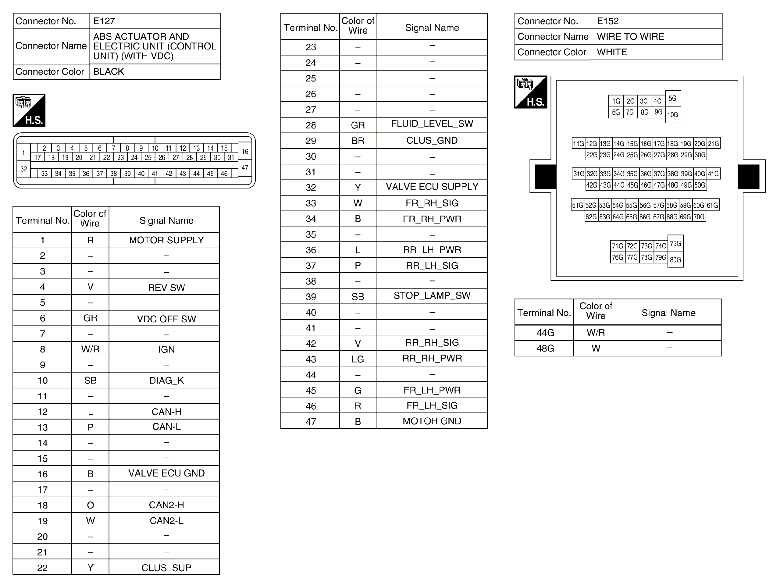

G00500291

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: ABLS - Wiring Diagram (7 Of 8)

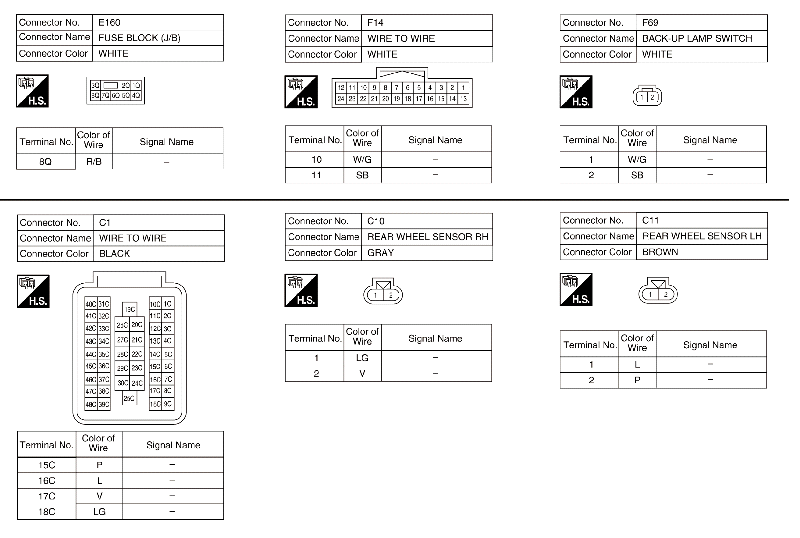

G00500292

Courtesy of SUZUKI OF AMERICA CORP.

Fig 8: ABLS - Wiring Diagram (8Of 8)

G00500293

Courtesy of SUZUKI OF AMERICA CORP.
