2WD Model

SUZUKI does not recommend towing automatic transmission equipped vehicles with the drive wheels on the ground.

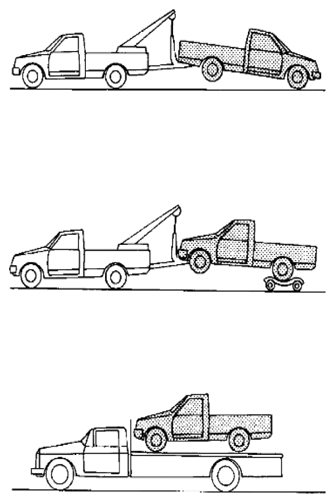

Fig 1: Caution - When Towing With Front Wheels On Ground
G06443793Courtesy of SUZUKI OF AMERICA CORP.
CAUTION:
  • When towing with the front wheels on the ground: Turn the ignition key to the OFF position and move the transmission selector lever to N (neutral) position, turn the ignition key to OFF position and secure the steering wheel in a straight ahead position with a rope or similar device. Never place the ignition key in the LOCK position. This will result in damage to the steering lock mechanism.
