Pinout Values and Diagnostic Parameters

Transfer Control Unit: Reference Value

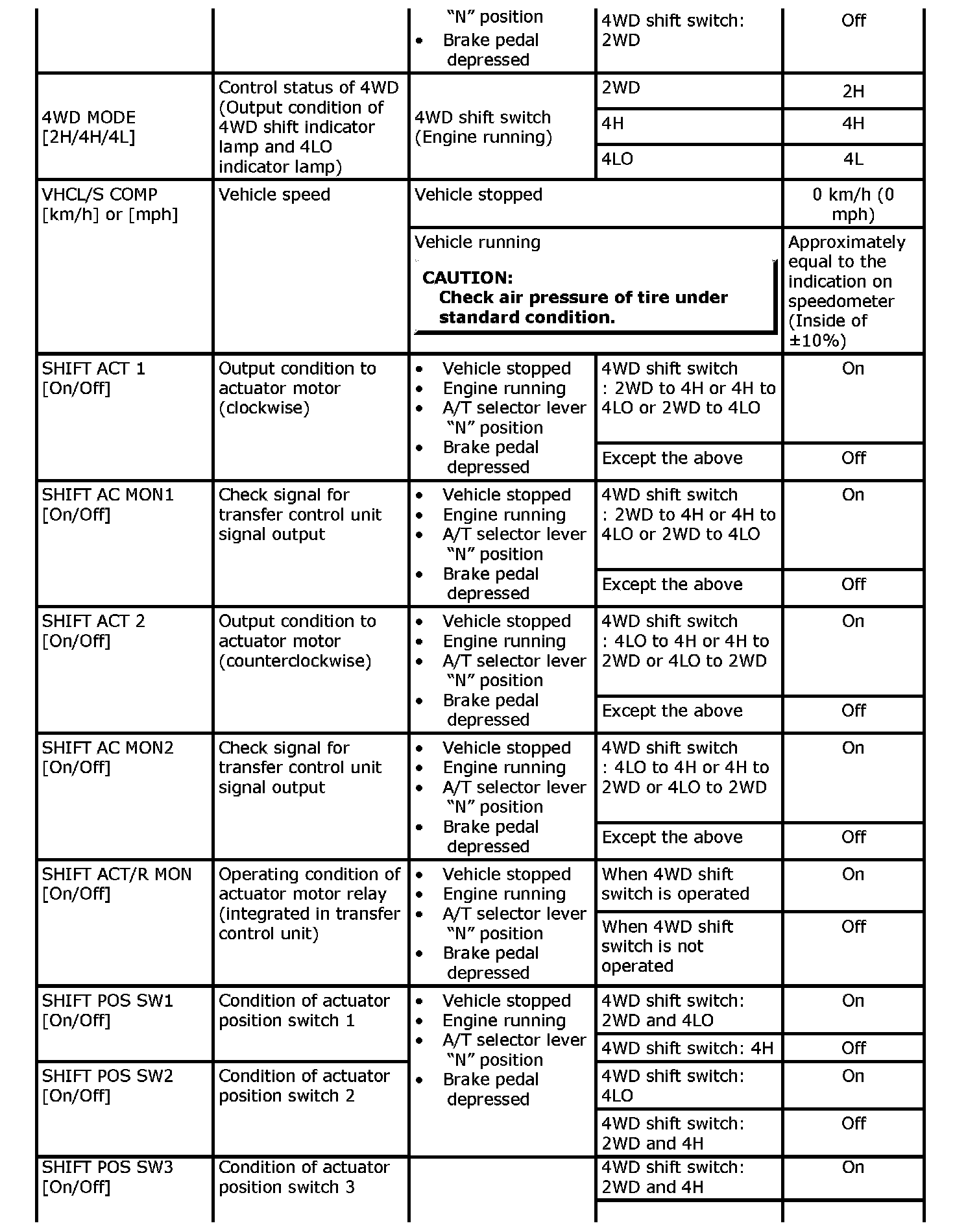

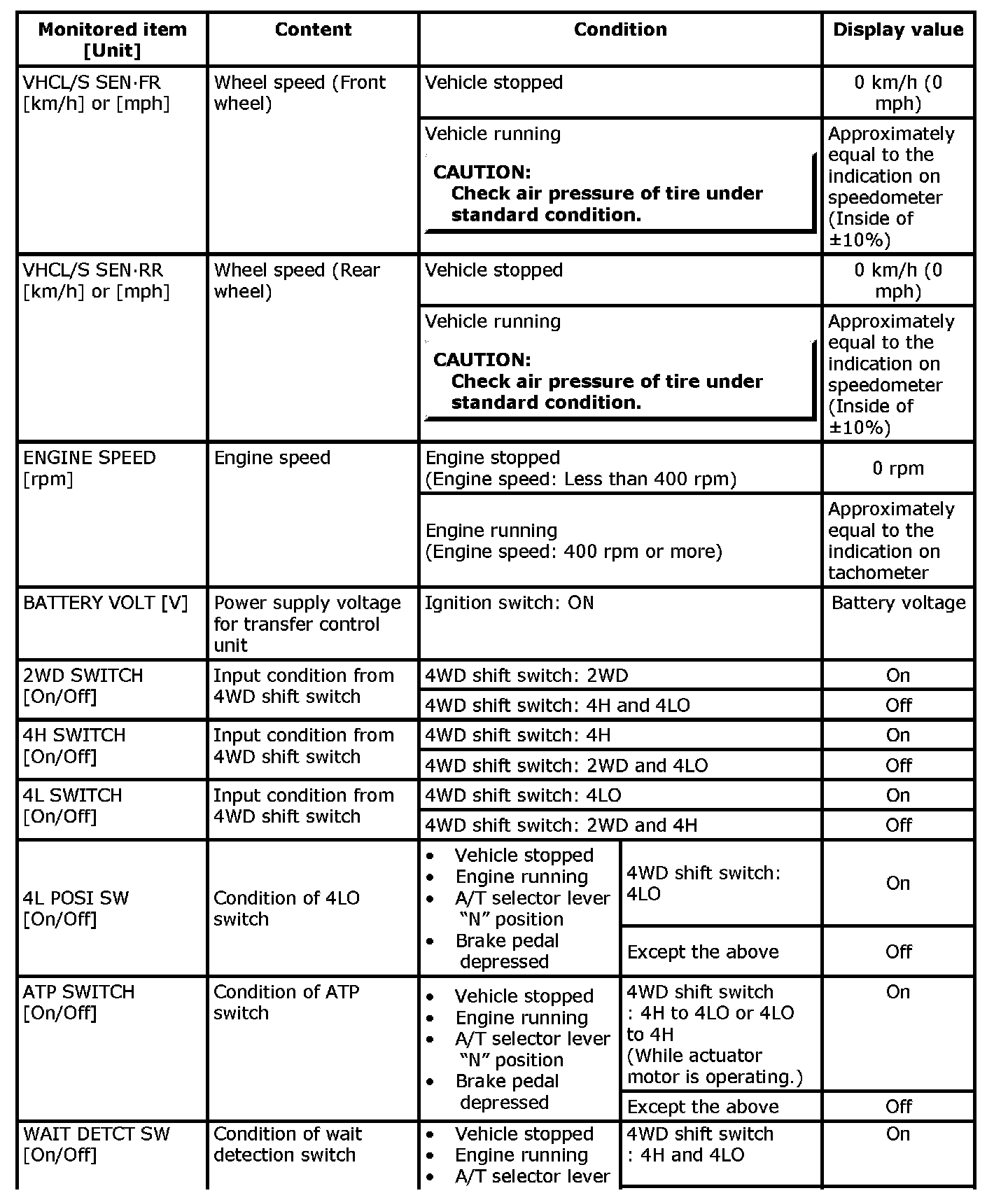

Value On the Diagnosis Tool

SDT Data list item











Physical Values

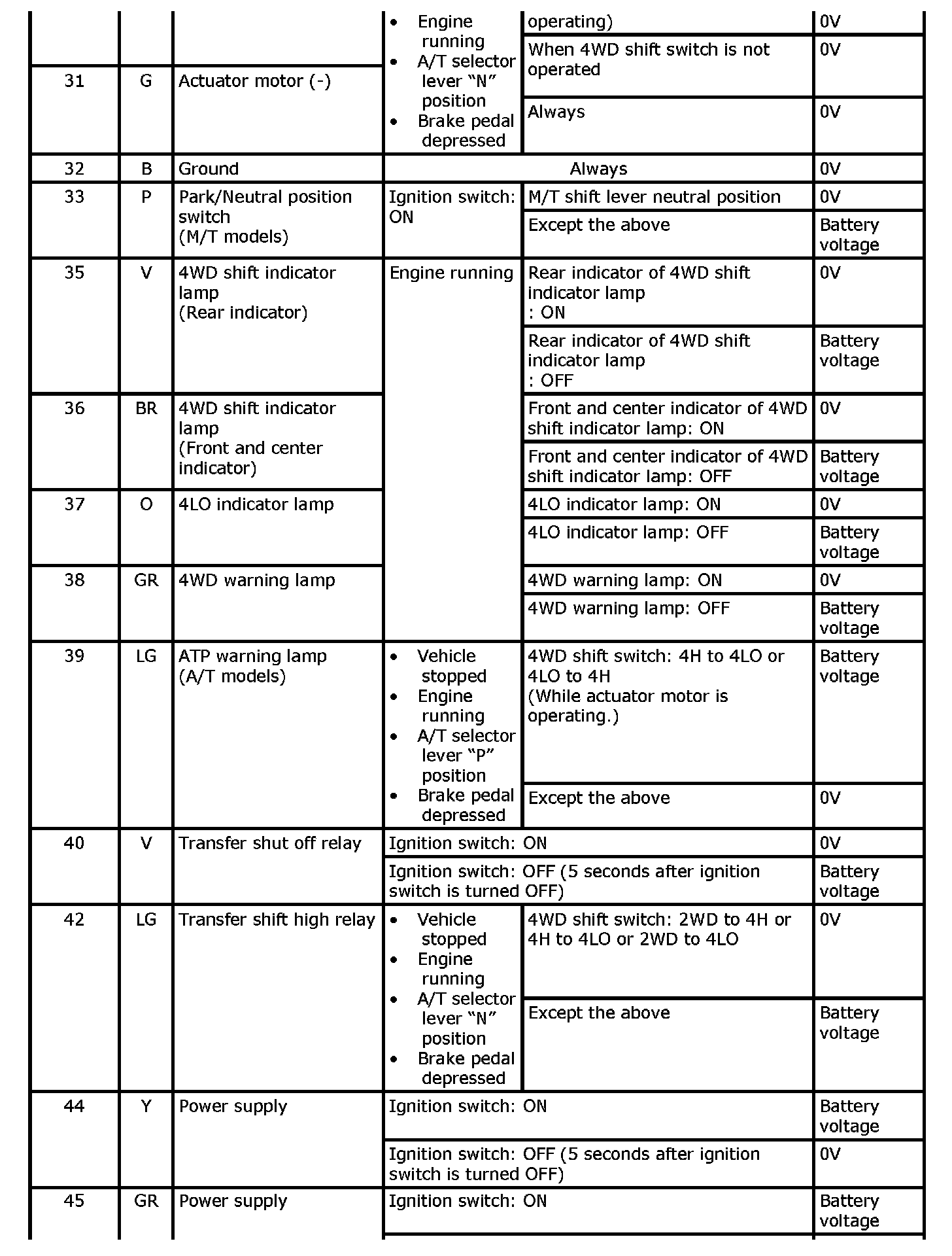

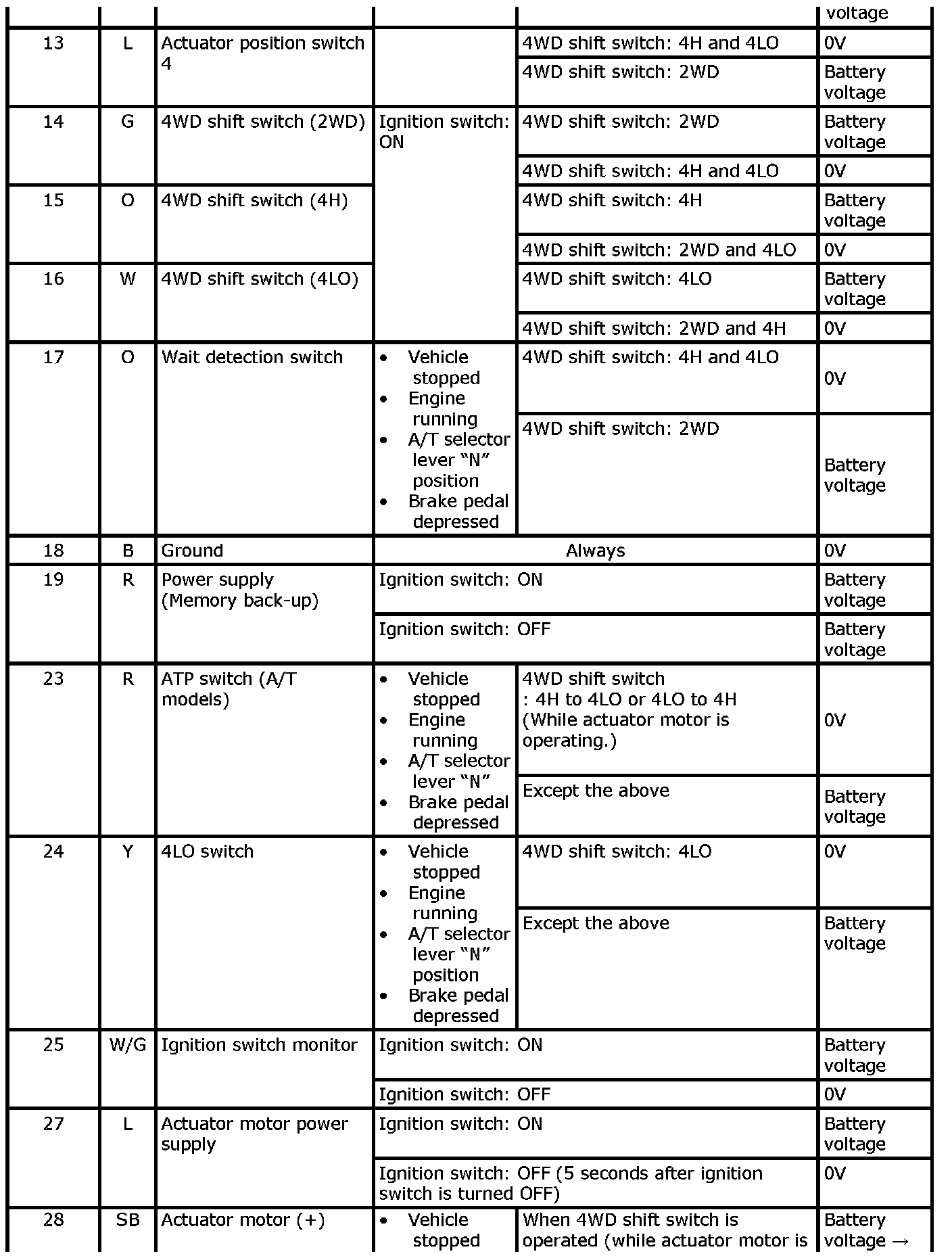

Terminal Layout

















CAUTION:
When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.

NOTE:
Data are reference value and are measured between each terminal and ground.
