Front Drive Shaft: Disassembly and Assembly
Front Drive Shaft: Disassembly and AssemblyDisassembly

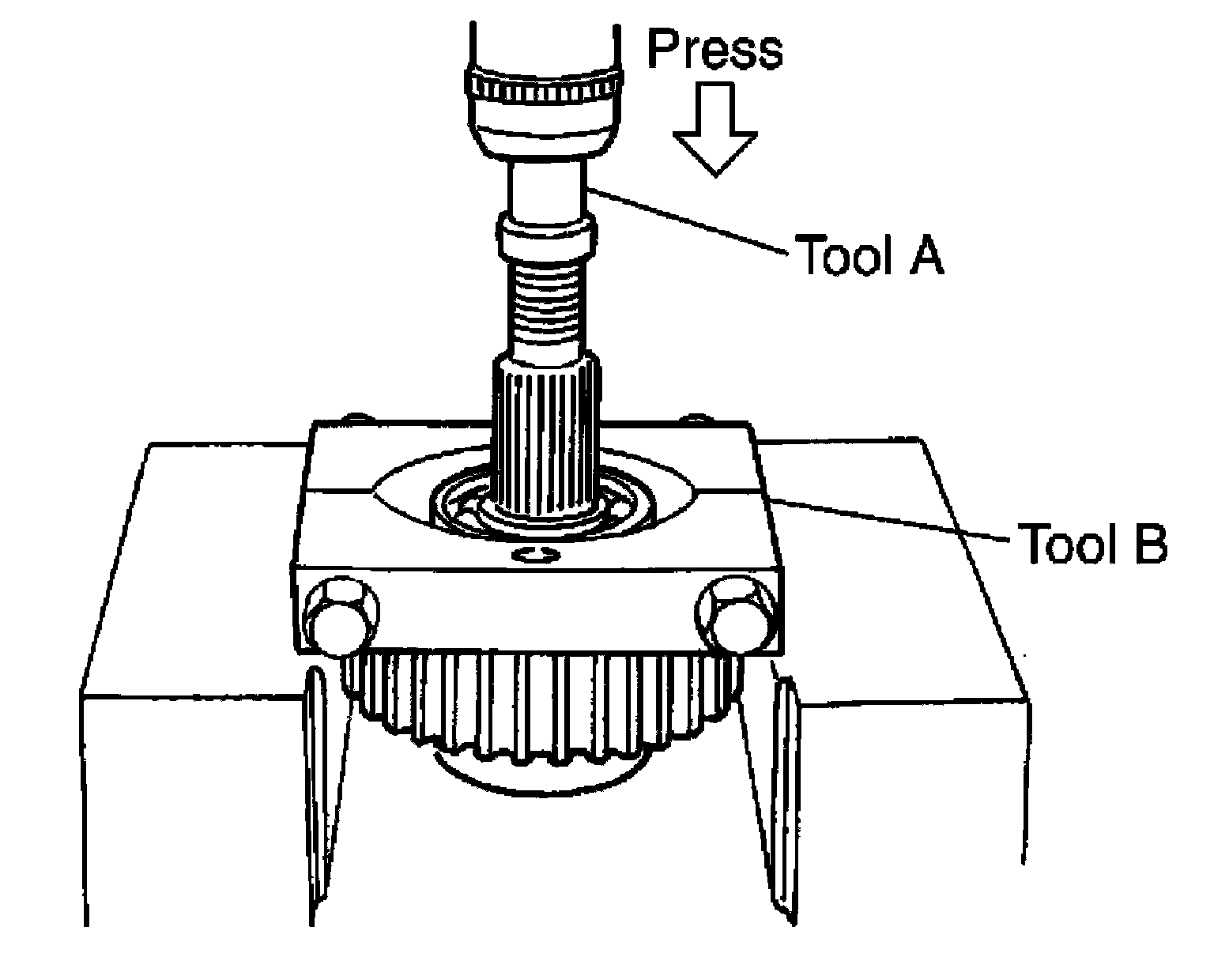

1) Remove the front bearing using Tools.
Tool number
A: ST35300000 ( - )
B: ST30021000 (J-22912-01)
2) Remove the rear bearing using Tools.
Tool number
A: ST33710000 ( - )
B: ST30021000 (J-22912-01)
Inspection after Disassembly

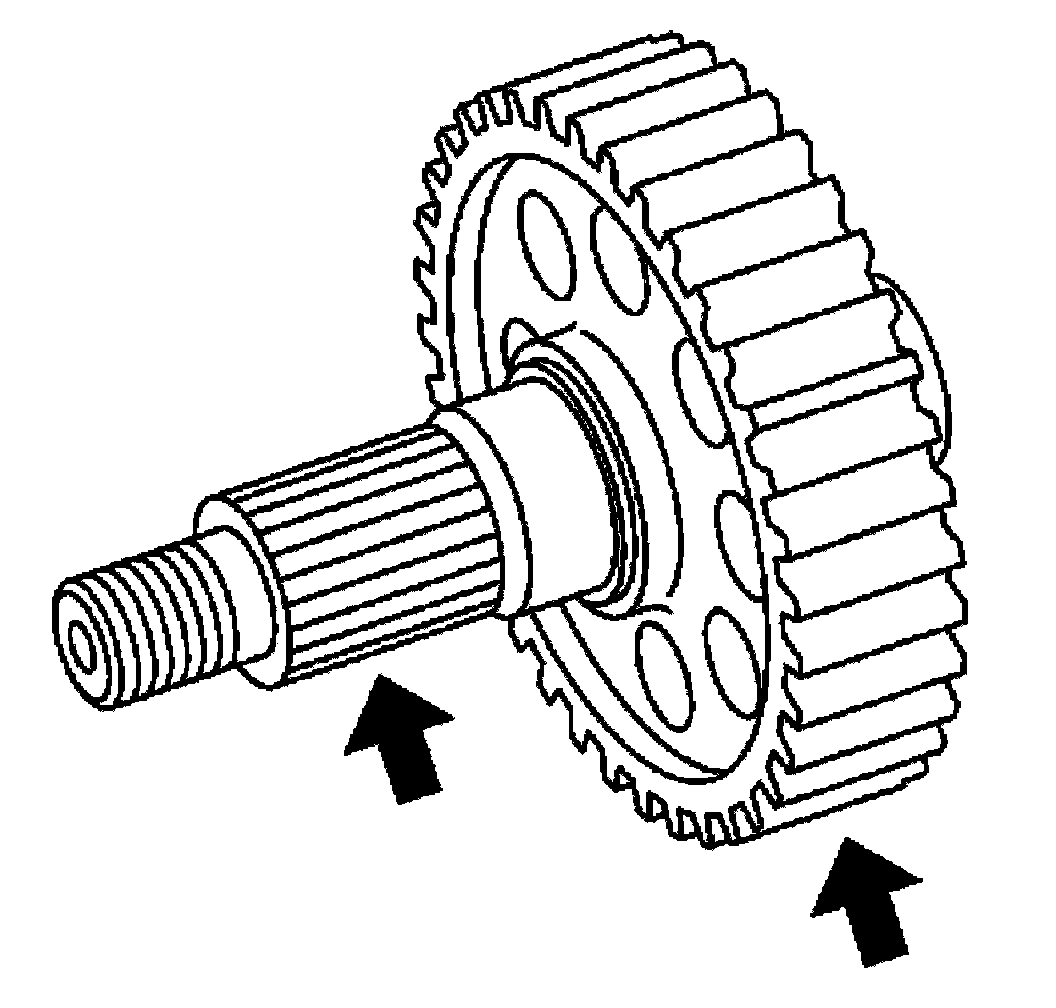

Front Drive Shaft
Check the items below. If necessary, replace them with new ones.
^ Damage, peeling, dent, uneven wear and bending of the shaft.
^ Excessive wear, damage and peeling of the gear.

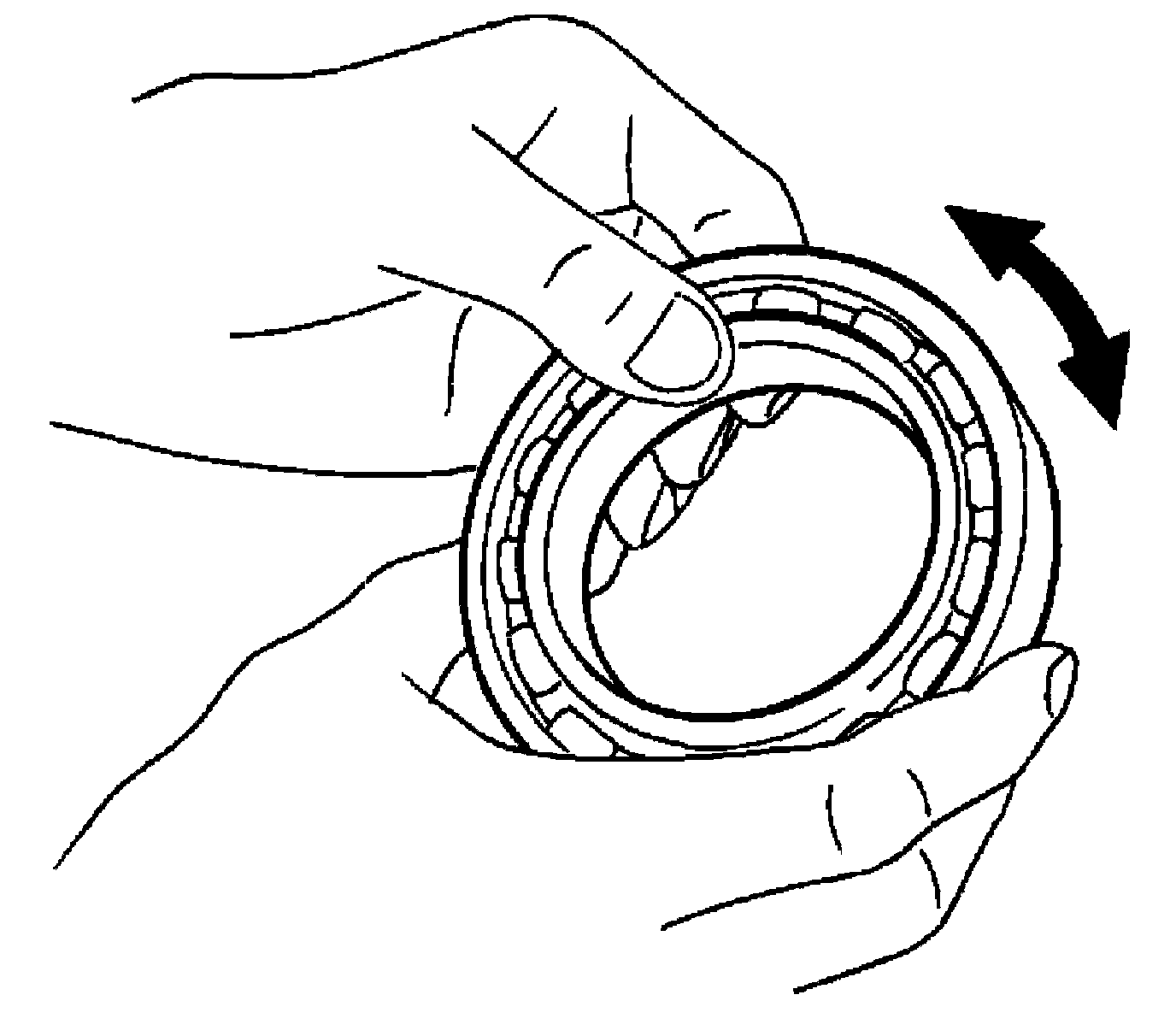

Bearing
Check the bearing for damage and rough rotation. If necessary, replace the bearing with a new one.
Assembly
1) Install the rear bearing using Tools.
Tool number
A: KV38100500 ( - )
B: ST30901000 (J-26010-01)
2) Install the front bearing using Tools.
Tool number
A: KV38100500 ( - )
B: ST30901000 (J-26010-01)
