ABLS

ABLS: Wiring Diagram

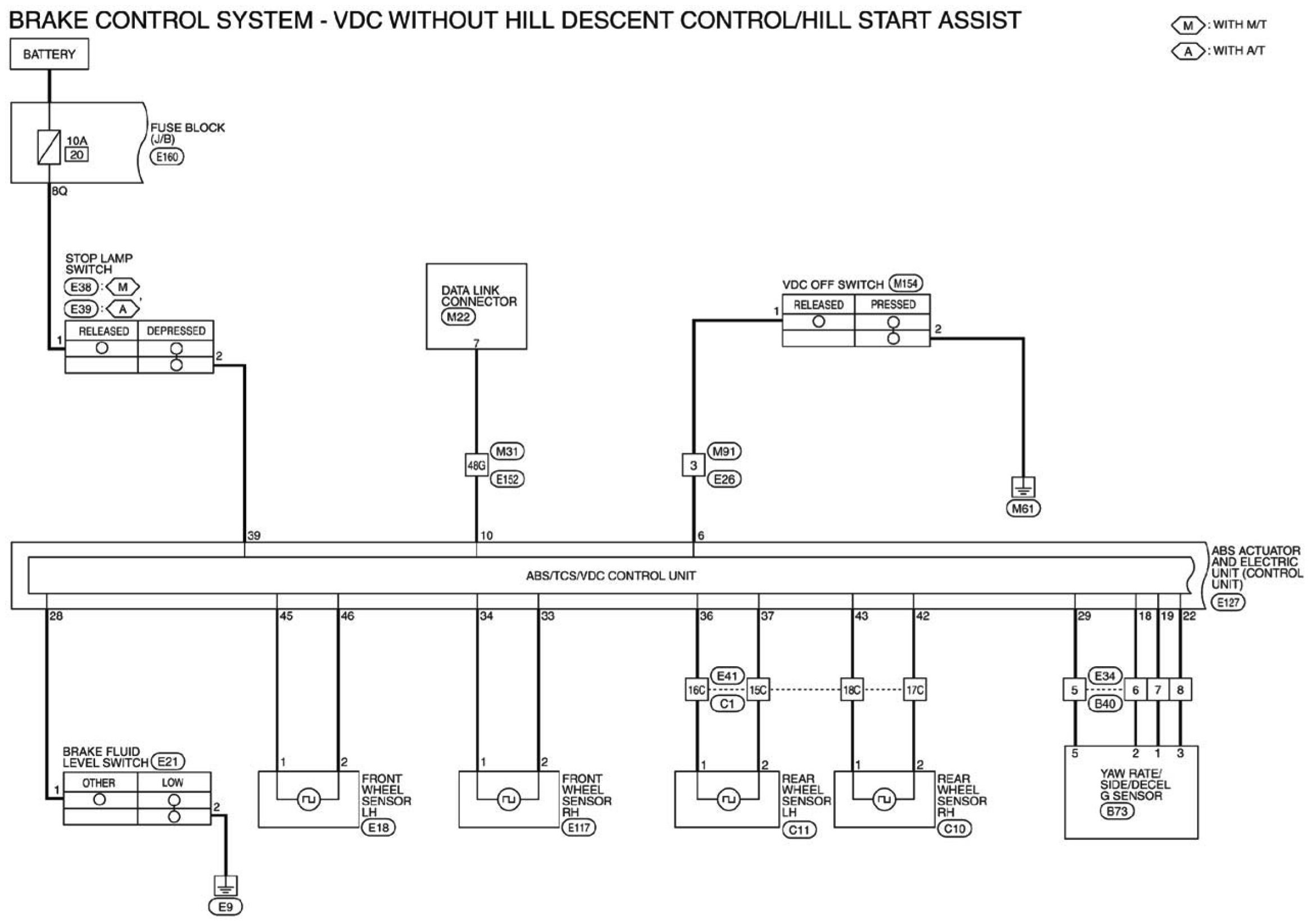

Brake Control System - VDC Without Hill Descent Control/Hill Start Assist (Part 1):

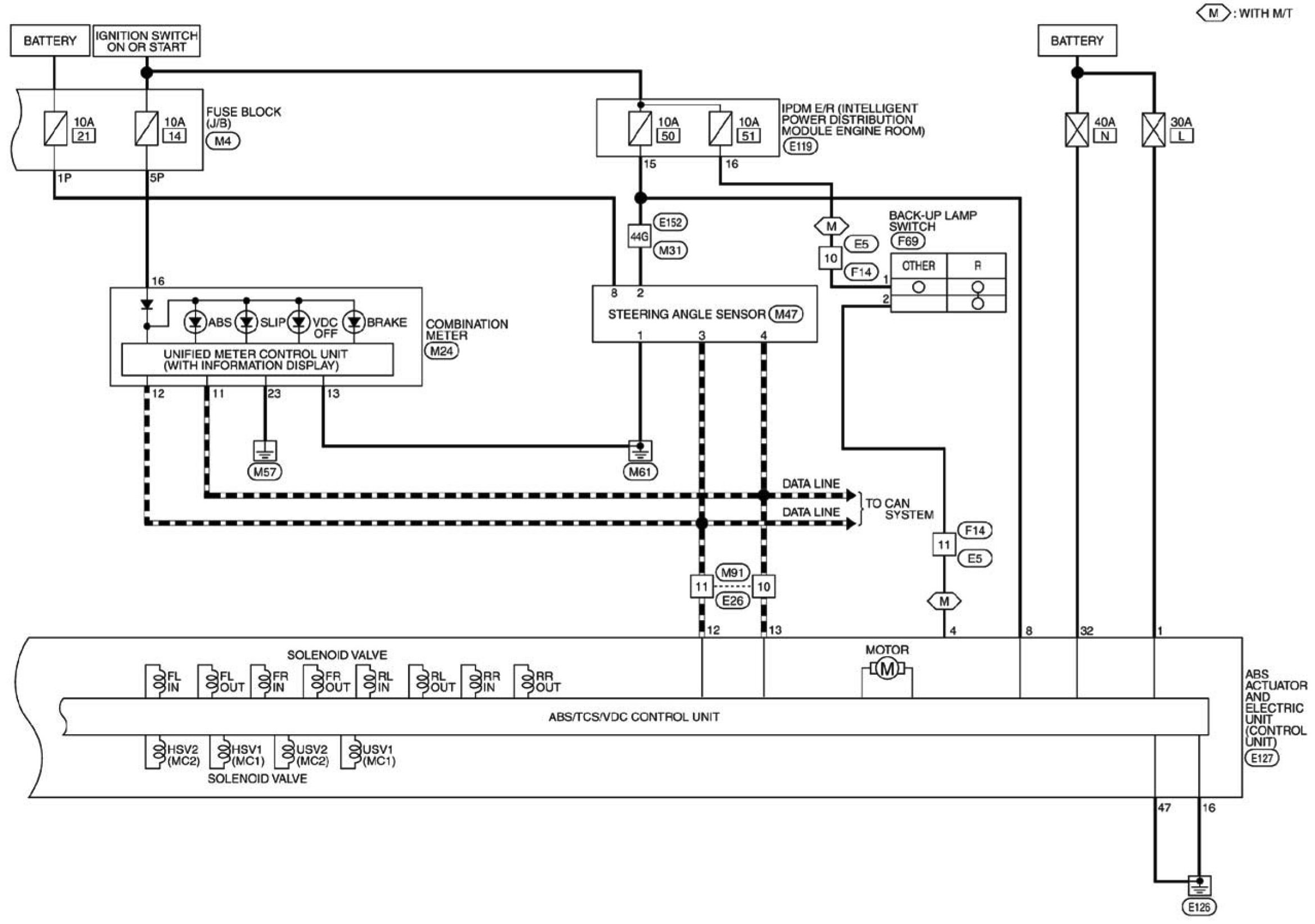

Brake Control System - VDC Without Hill Descent Control/Hill Start Assist (Part 2):

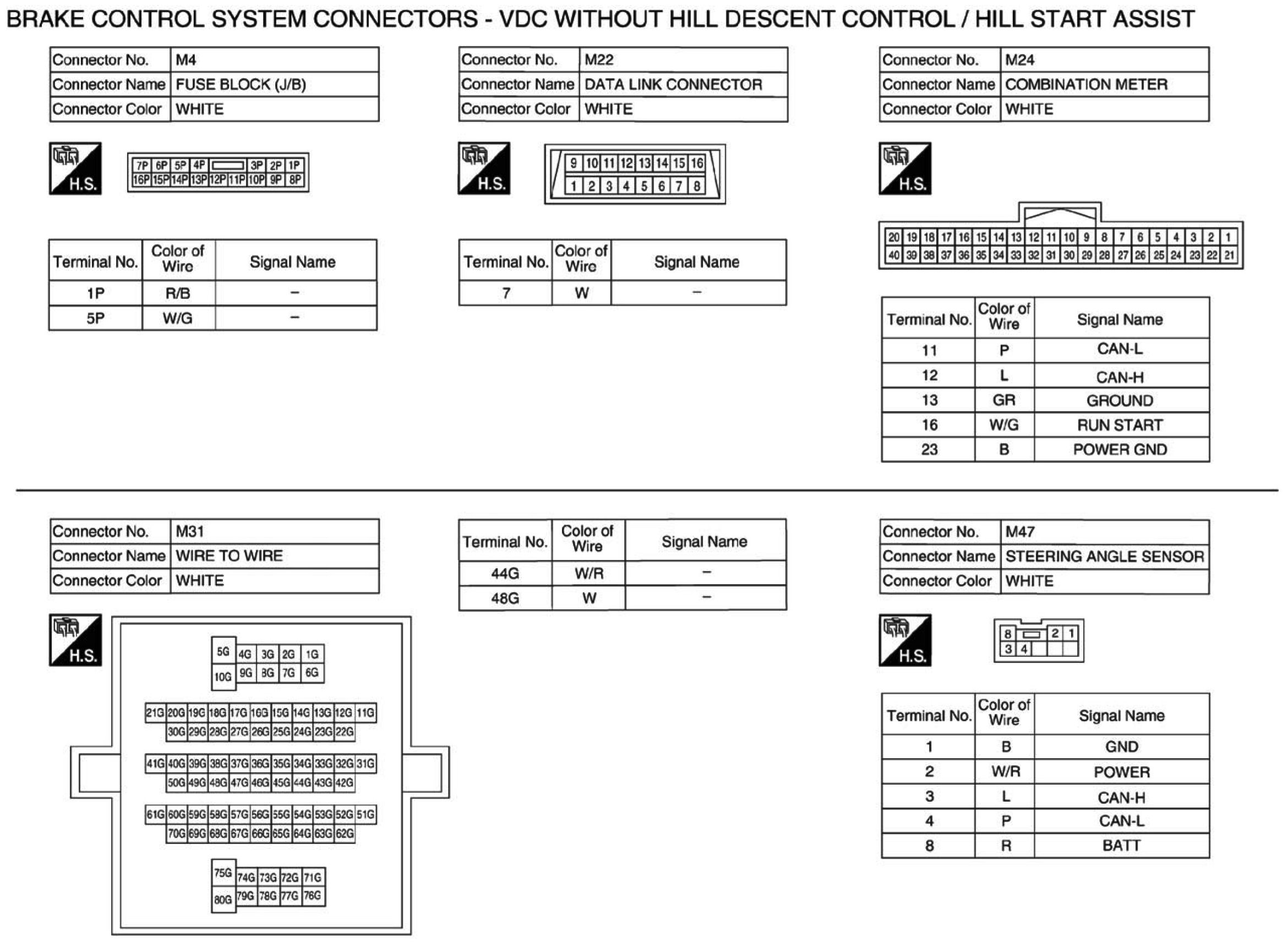

Brake Control System Connectors - VDC Without Hill Descent Control/Hill Start Assist

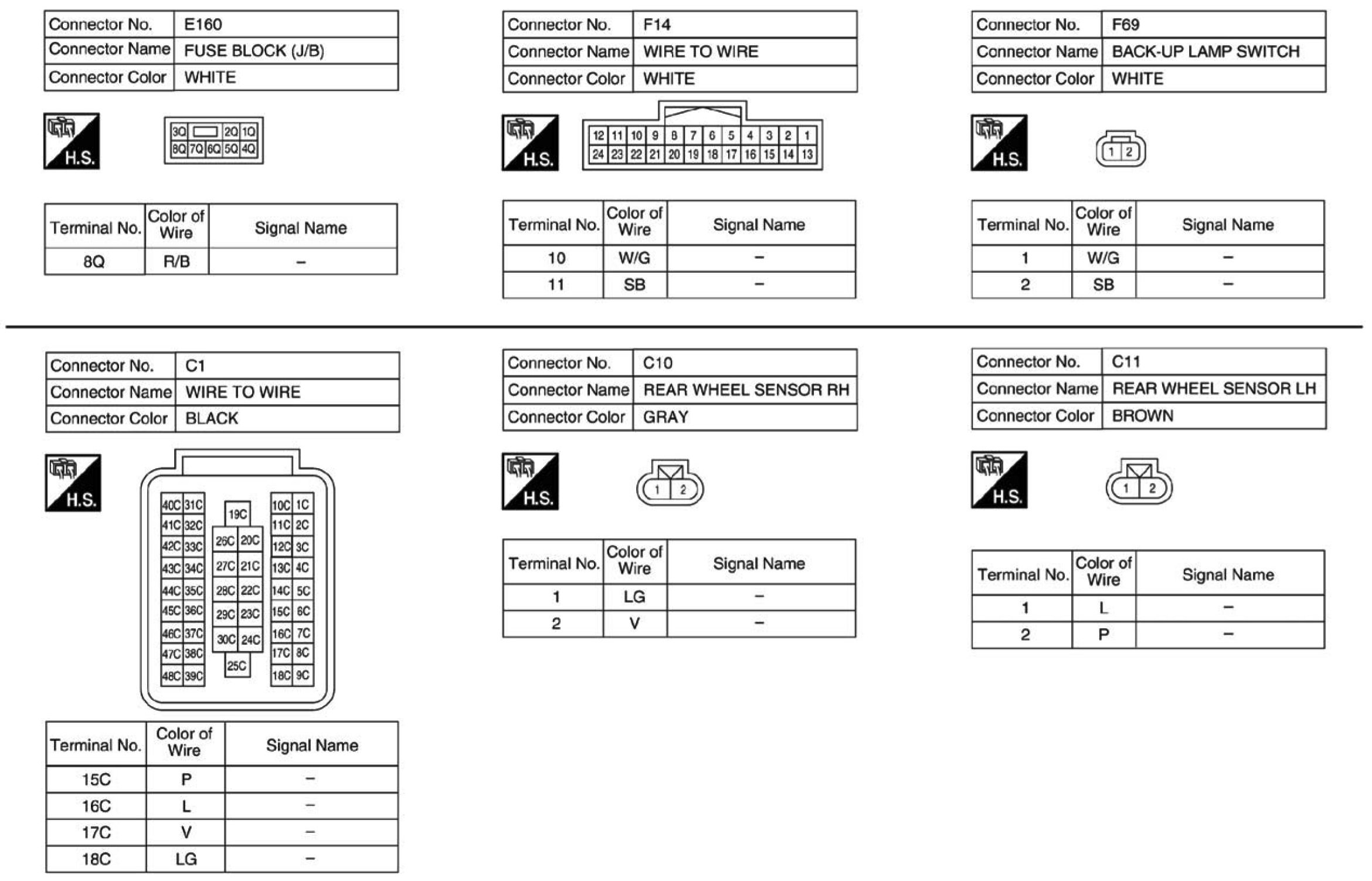

Brake Control System Connectors - VDC Without Hill Descent Control/Hill Start Assist (Part 1):

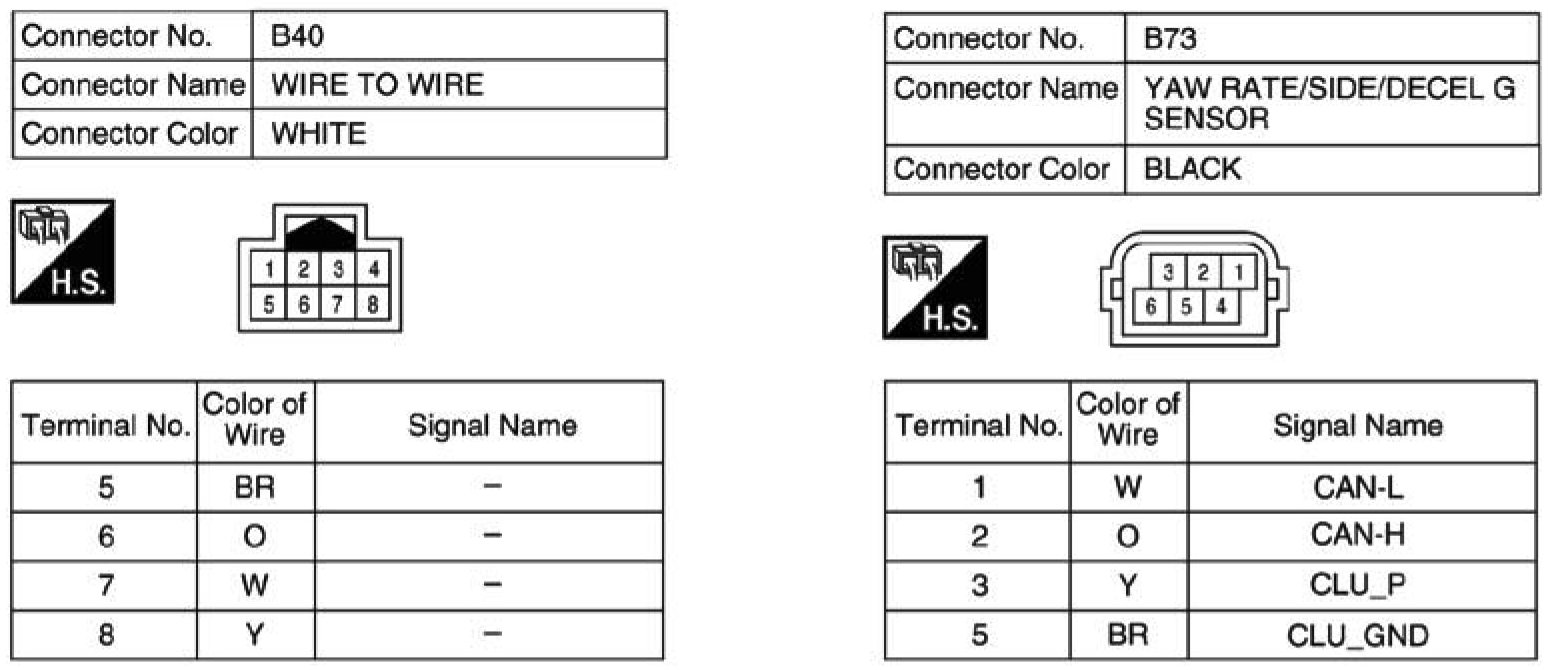

Brake Control System Connectors - VDC Without Hill Descent Control/Hill Start Assist (Part 2):

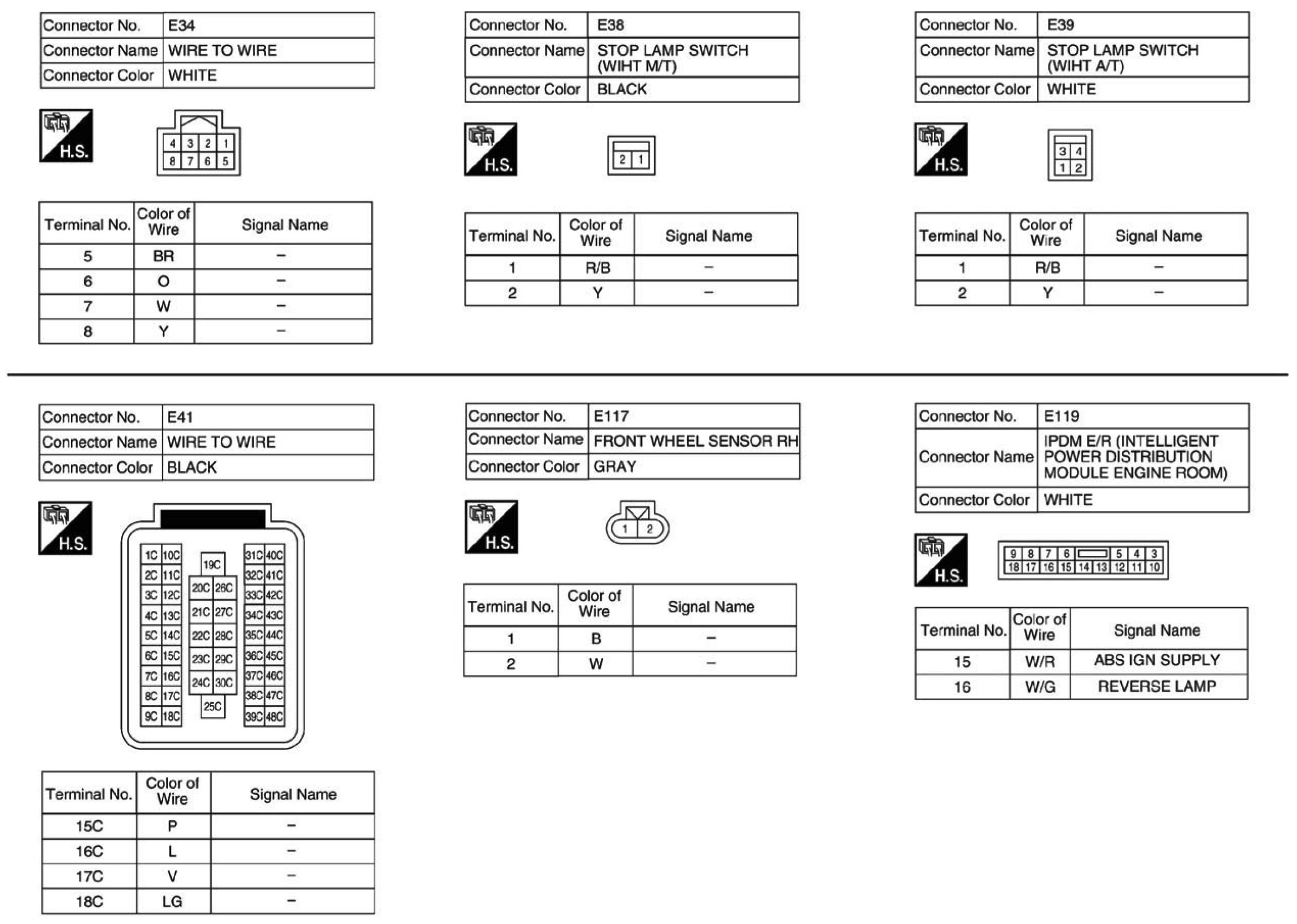

Brake Control System Connectors - VDC Without Hill Descent Control/Hill Start Assist (Part 3):

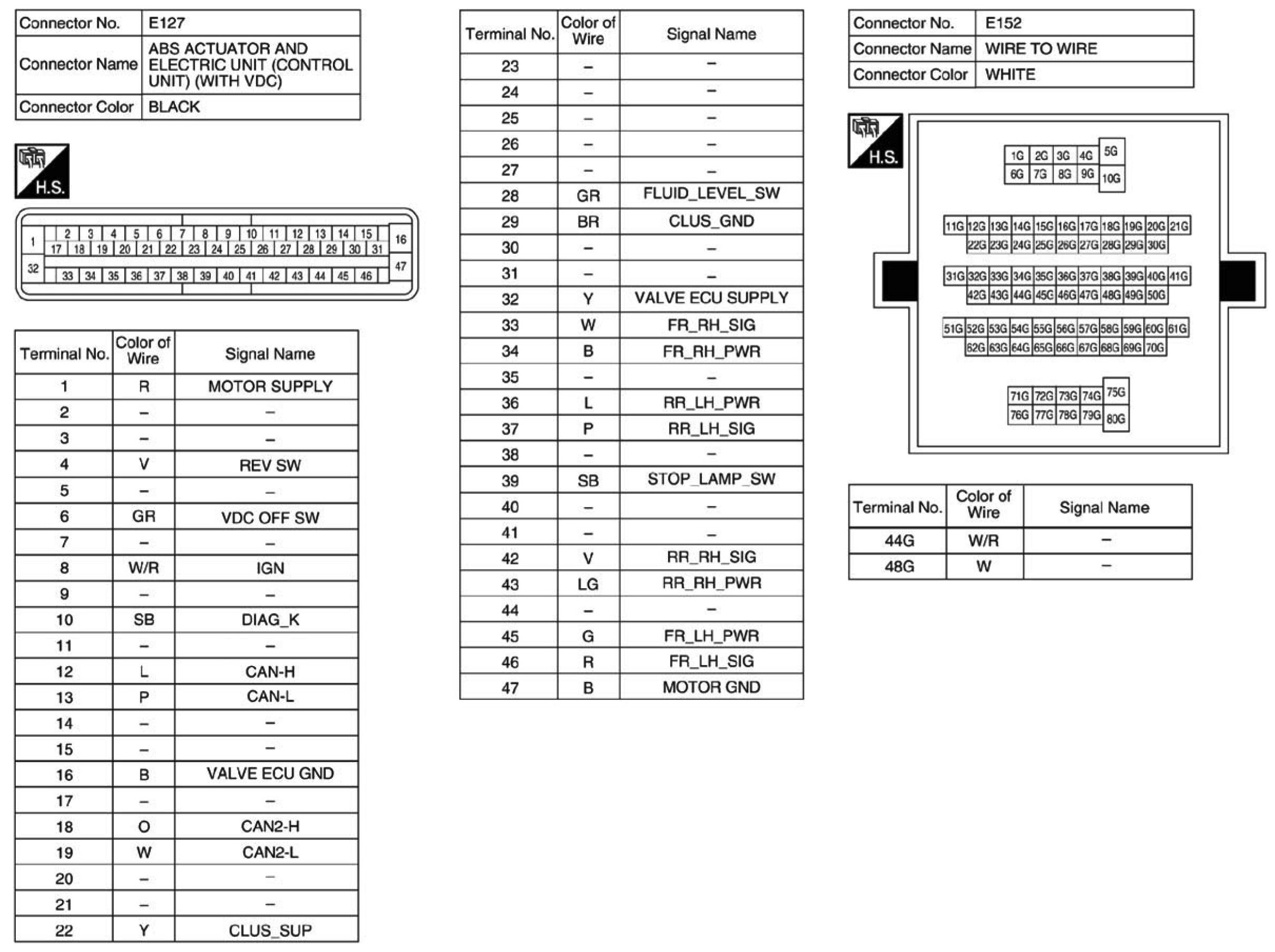

Brake Control System Connectors - VDC Without Hill Descent Control/Hill Start Assist (Part 4):

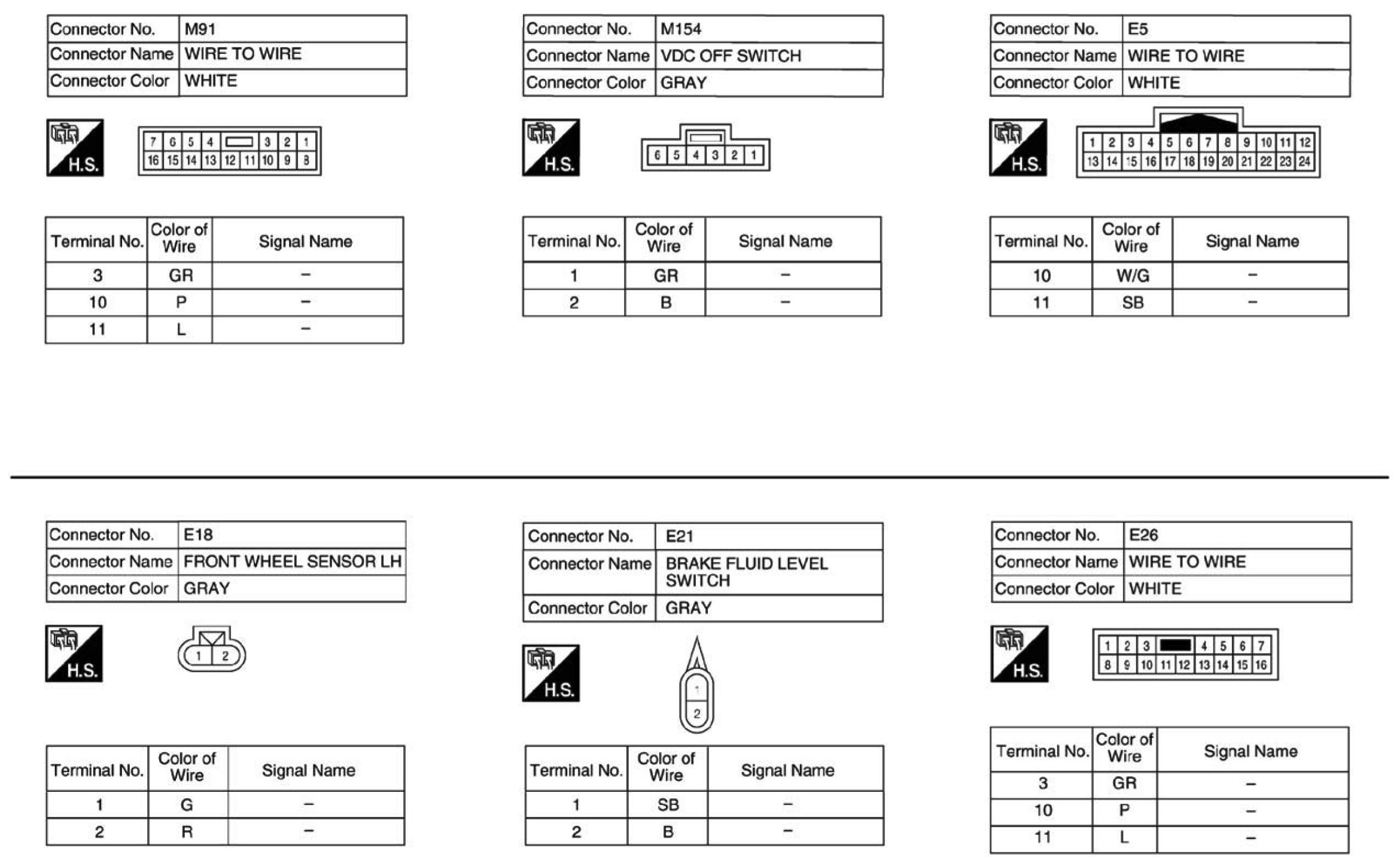

Brake Control System Connectors - VDC Without Hill Descent Control/Hill Start Assist (Part 5):




Brake Control System Connectors - VDC Without Hill Descent Control/Hill Start Assist (Part 6):
