DTC Index: Transfer Control Unit

DTC Index: Transfer Control Unit

DTC Chart

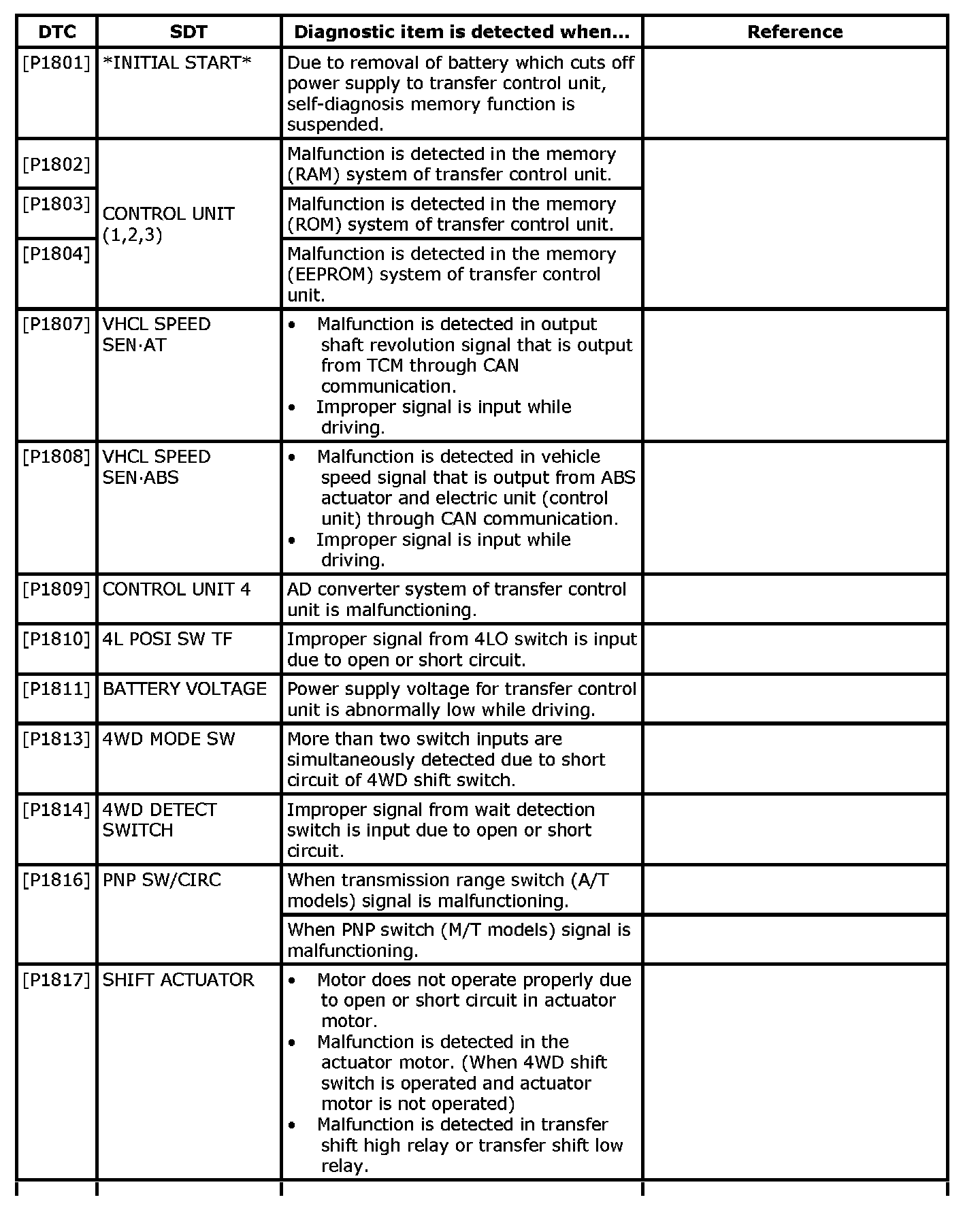

DTC Chart (Part 1):

DTC Chart (Part 2):

NOTE:
If "SHIFT ACT POSI SW [P1818]" or "SHIFT ACT CIR [P1819]" is displayed, first erase "DTC check" results. ("SHIFT ACT POSI SW [P1818]" or "SHIFT ACT CIR [P1819]" may be displayed after installing transfer control unit or transfer assembly.)

Flash Code Chart

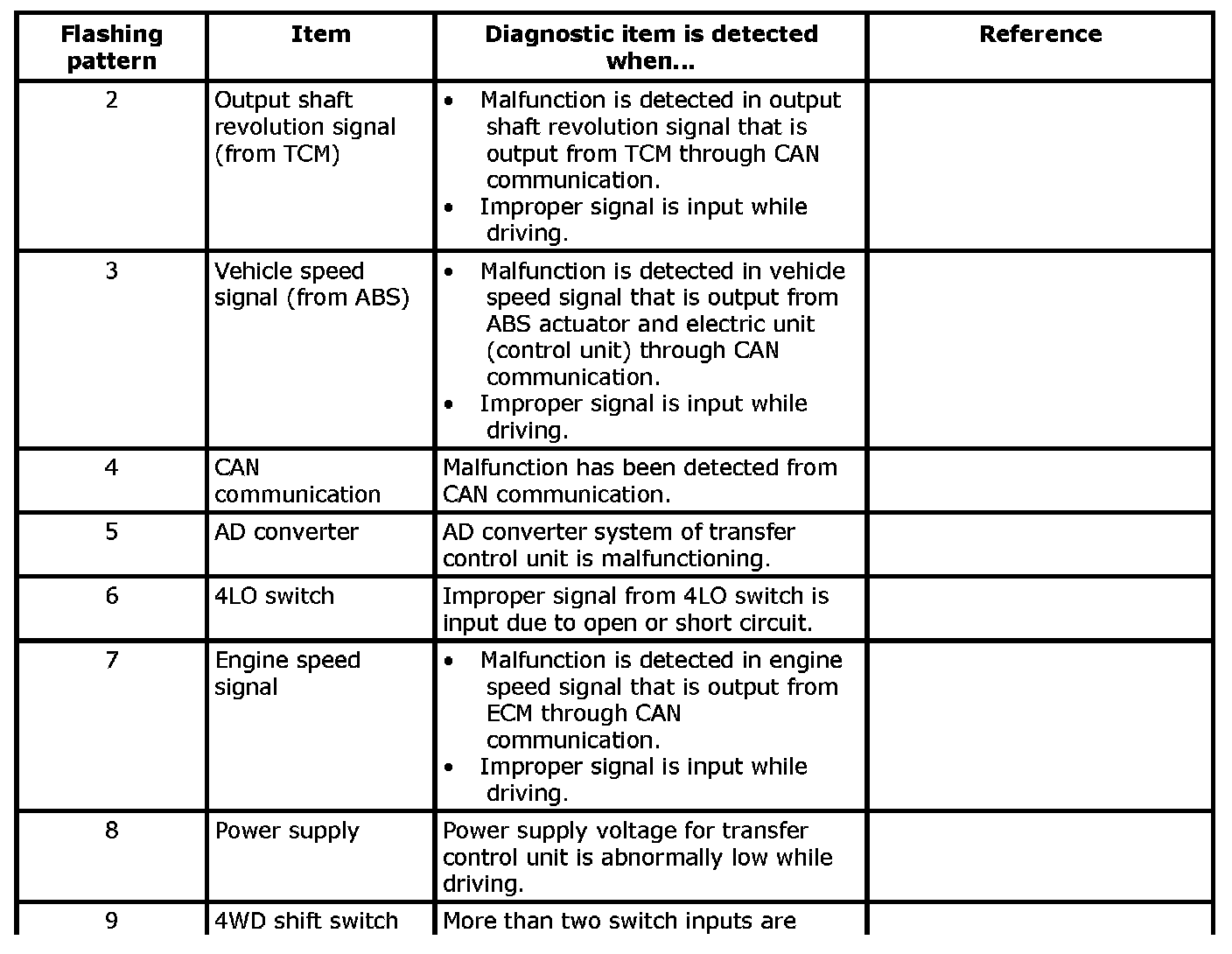

Flash Code Chart (Part 1):

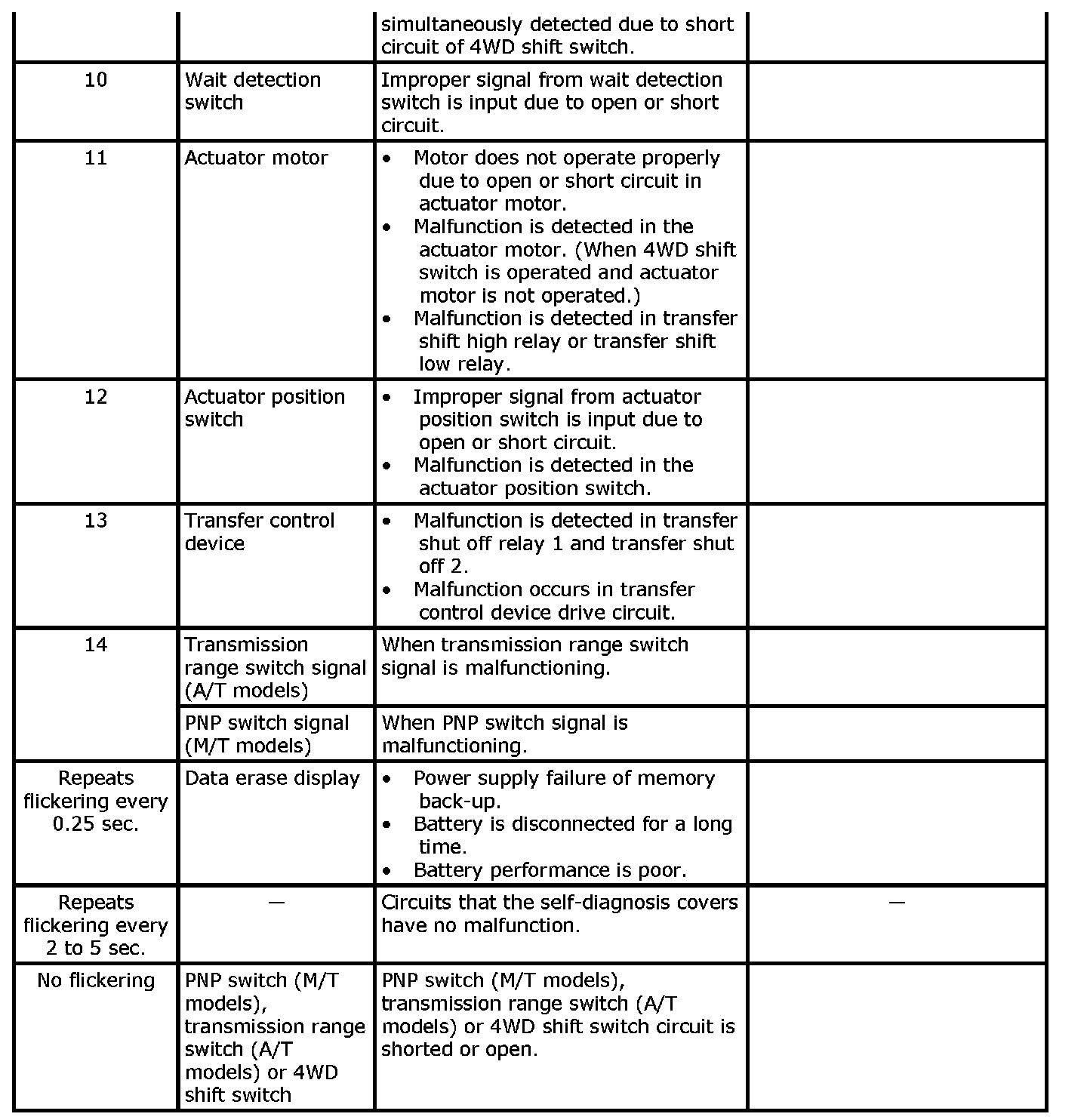

Flash Code Chart (Part 2):

NOTE:
If actuator position switch" or transfer control device" is displayed, first erase "DTC check" results. (They may be displayed after installing transfer control unit or transfer assembly.)
