Manual Type 2

Heater and Air Conditioning Control System: Component Part Location

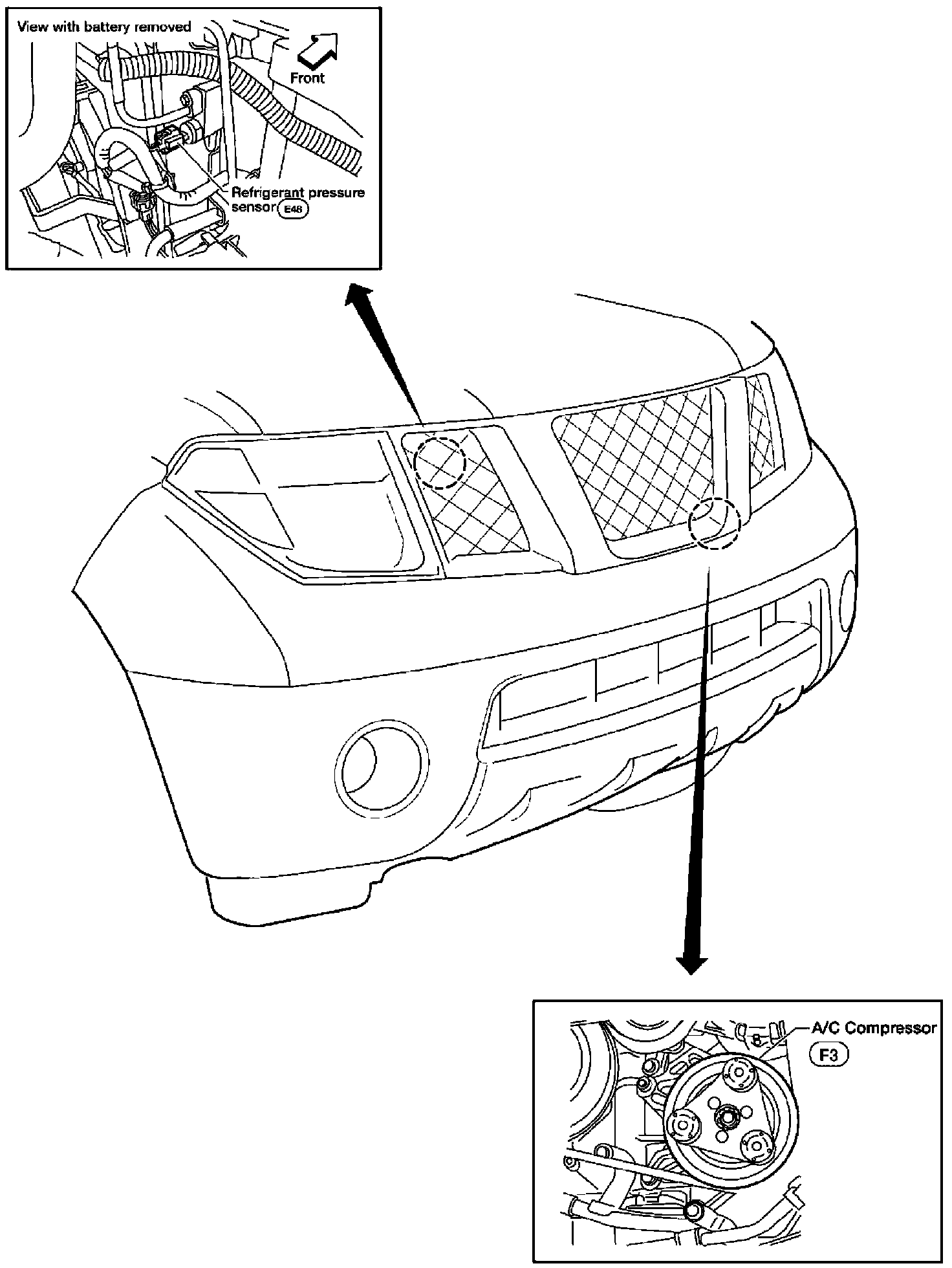

Engine Compartment

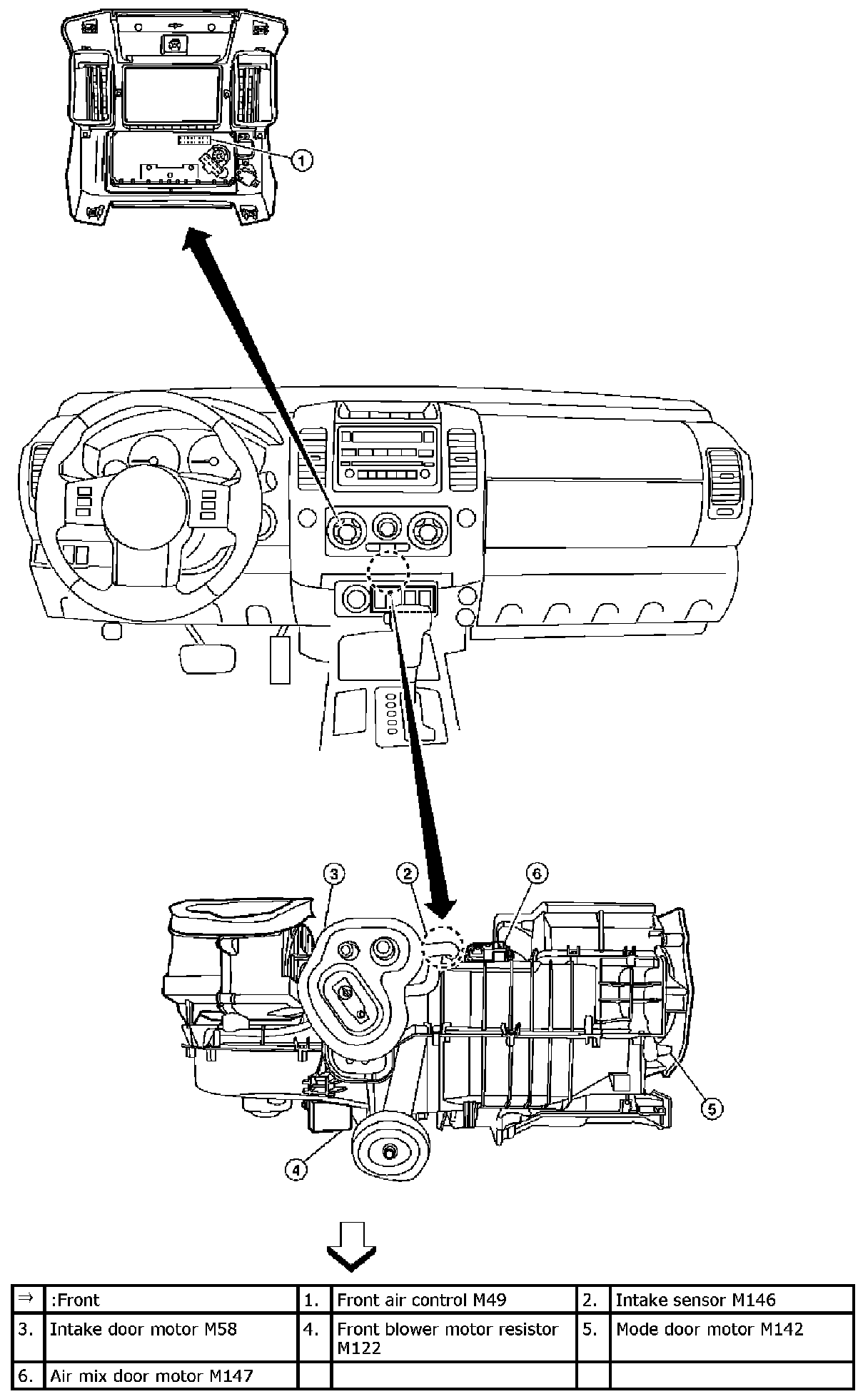

Passenger Compartment
