Starting System [Without Clutch Interlock Cancel Switch]

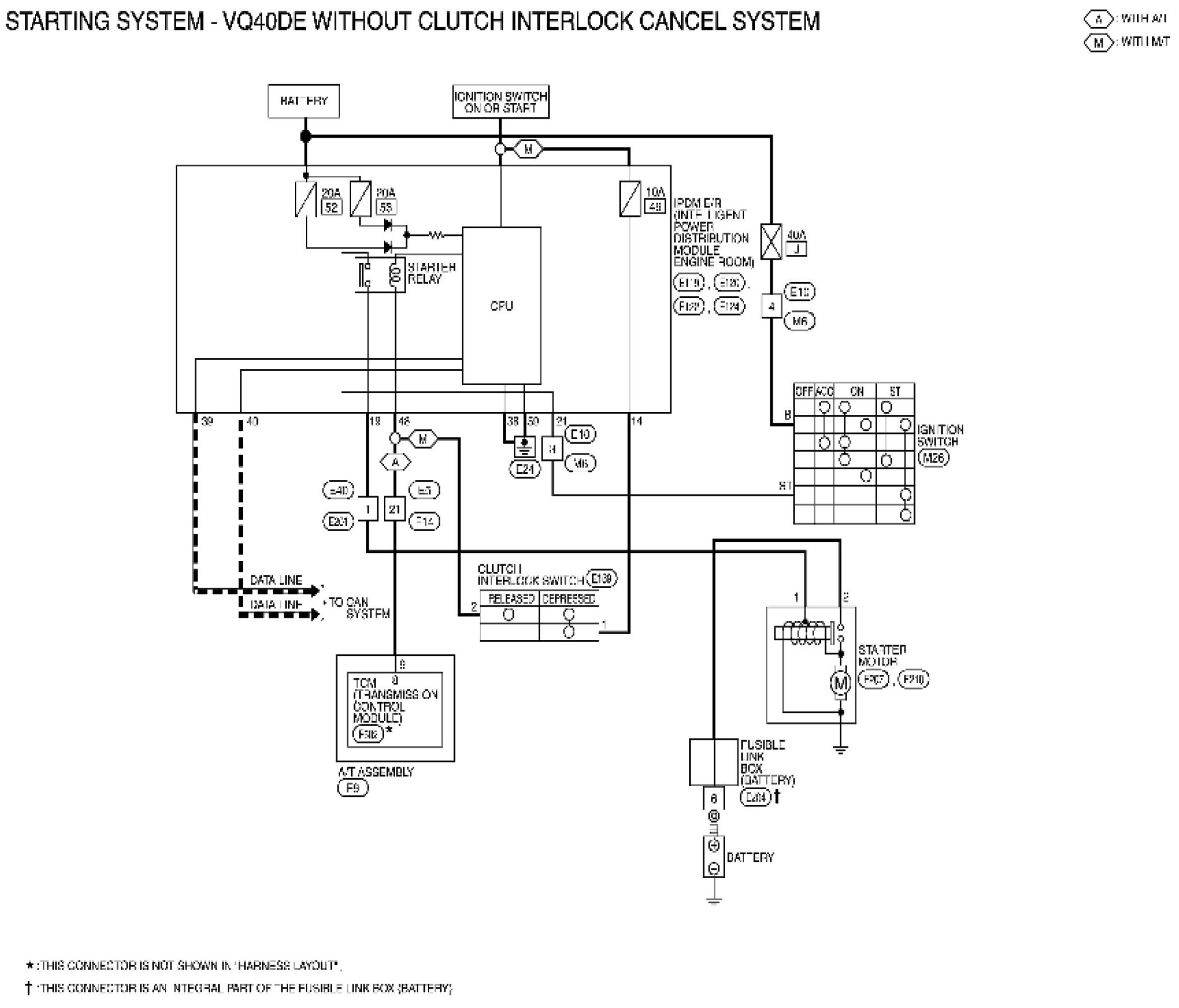

Starting System: Wiring Diagram [VQ40DE Without Clutch Interlock Cancel Switch

Starting System - Without Clutch Interlock Cancel Switch:






Starting System Connectors - VQ40DE Without Clutch Interlock Cancel Switch

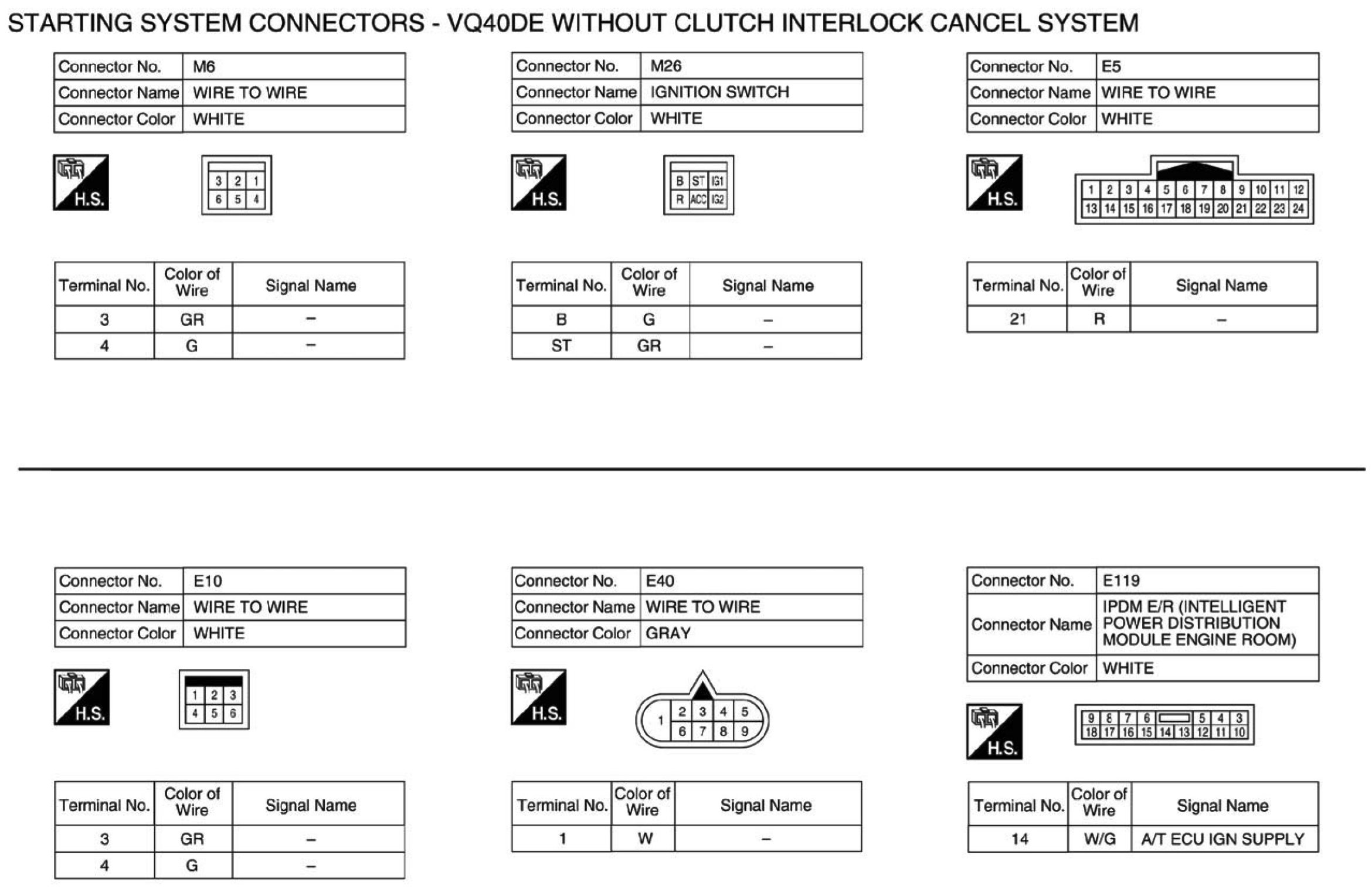

Starting System Connectors - Without Clutch Interlock Cancel Switch (Part 1):

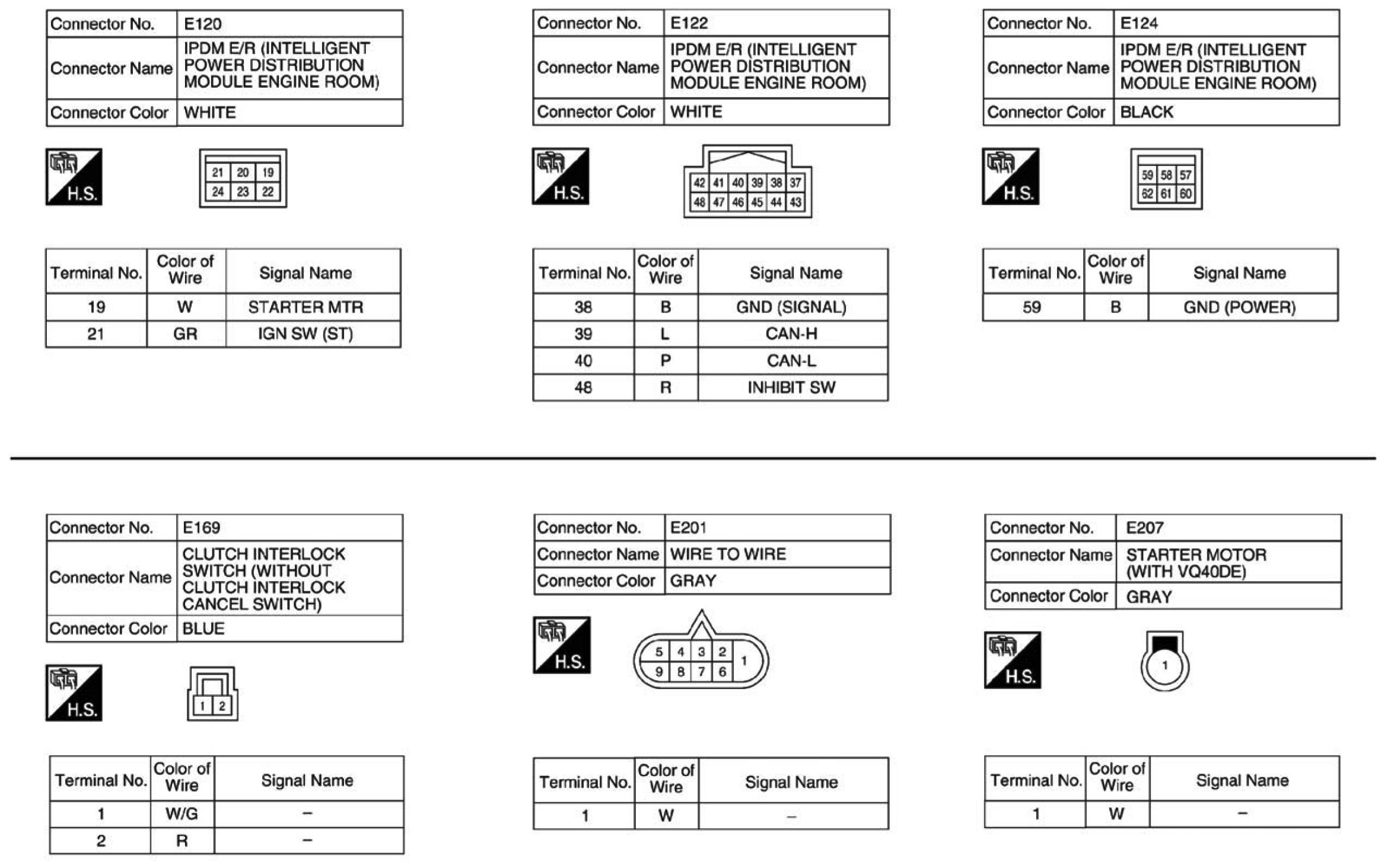

Starting System Connectors - Without Clutch Interlock Cancel Switch (Part 2):

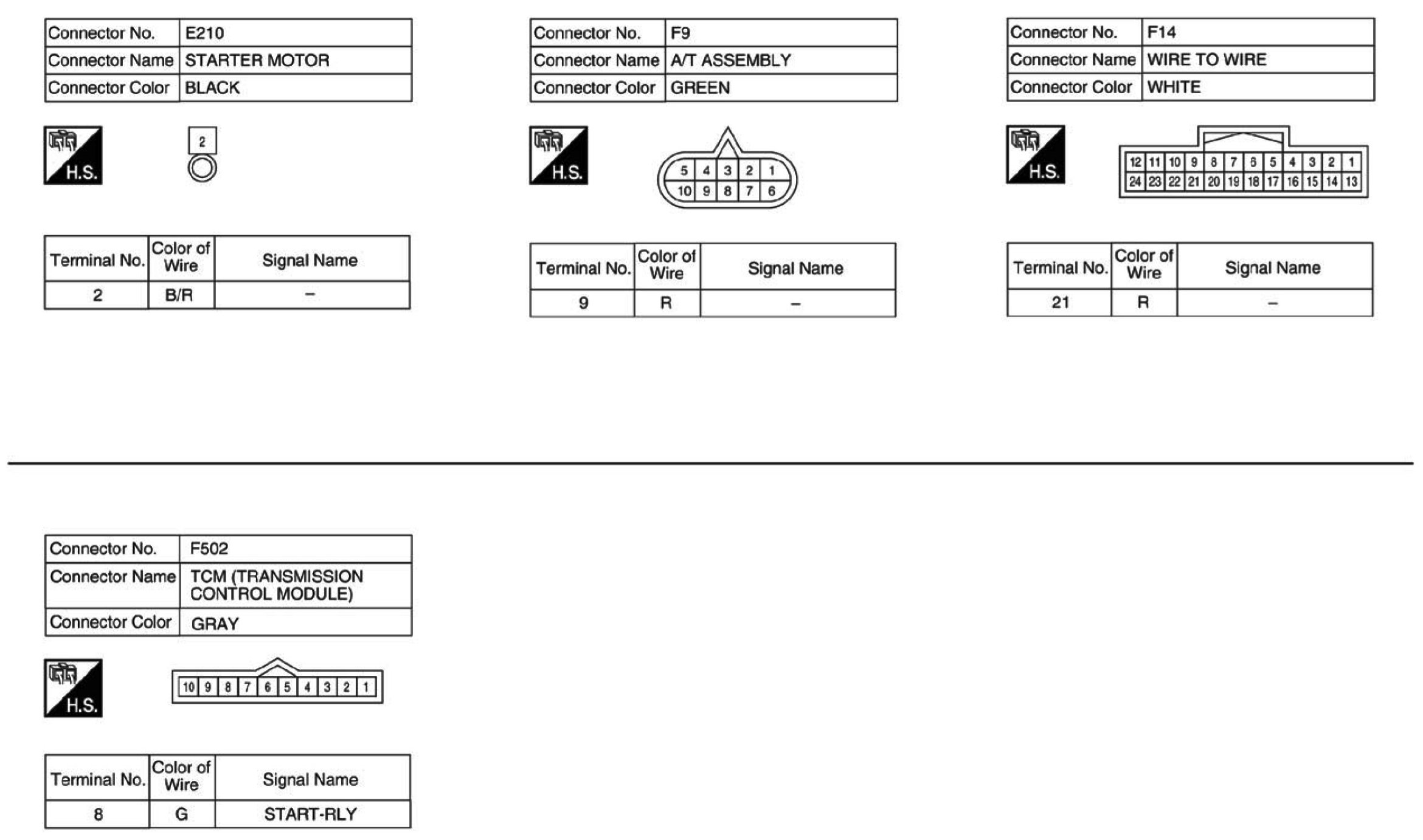

Starting System Connectors - Without Clutch Interlock Cancel Switch (Part 3):
