Electrical Diagrams

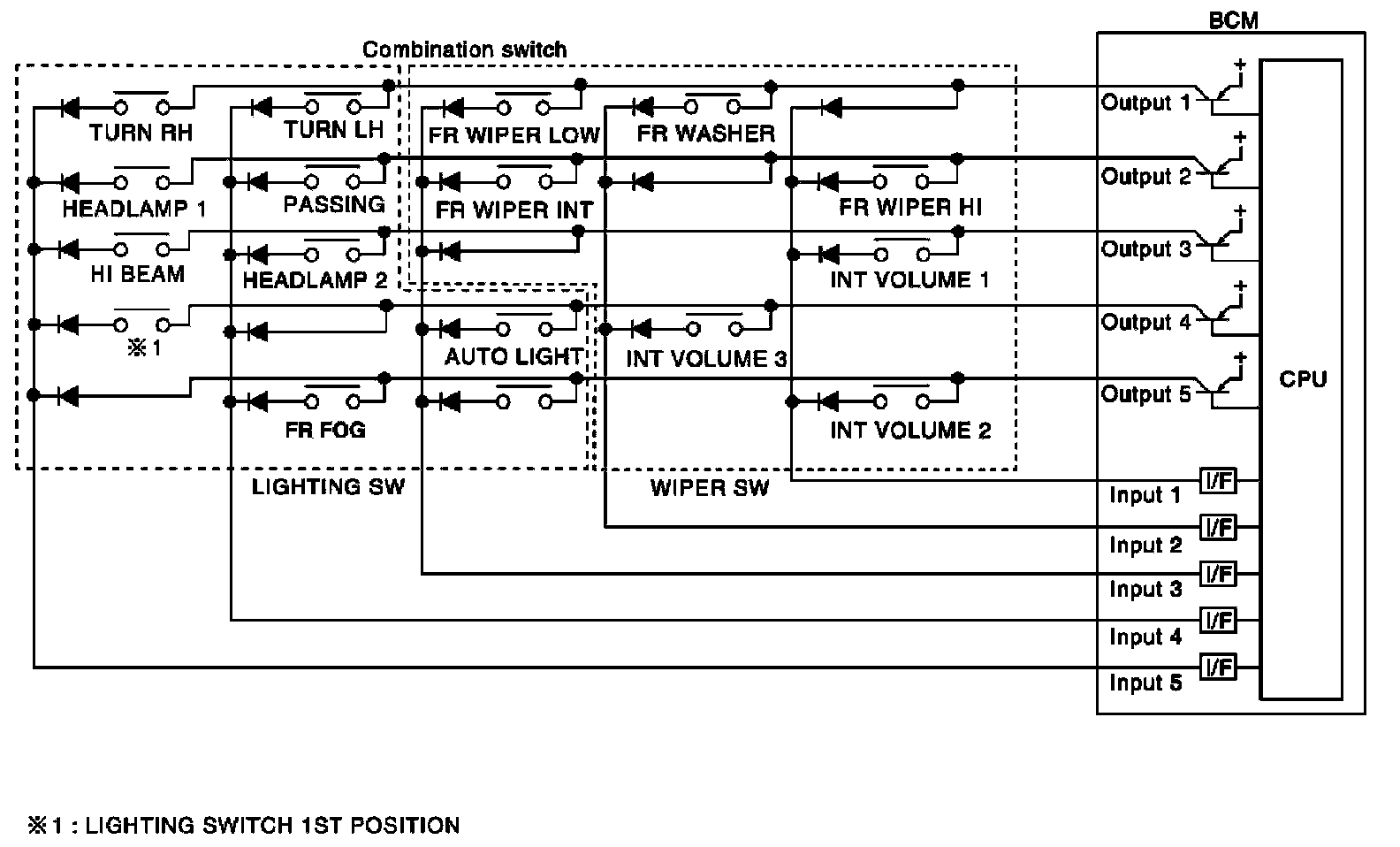

Combination Switch
Reading System: System Diagram
Combination Switch Reading System: System Diagram:
