Front Wiper Does Not Operate

Front Wiper Does Not Operate

Description
The front wiper does not operate under any operation conditions.

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Front Wiper and Washer System: Wiring Diagram]. Electrical Diagrams

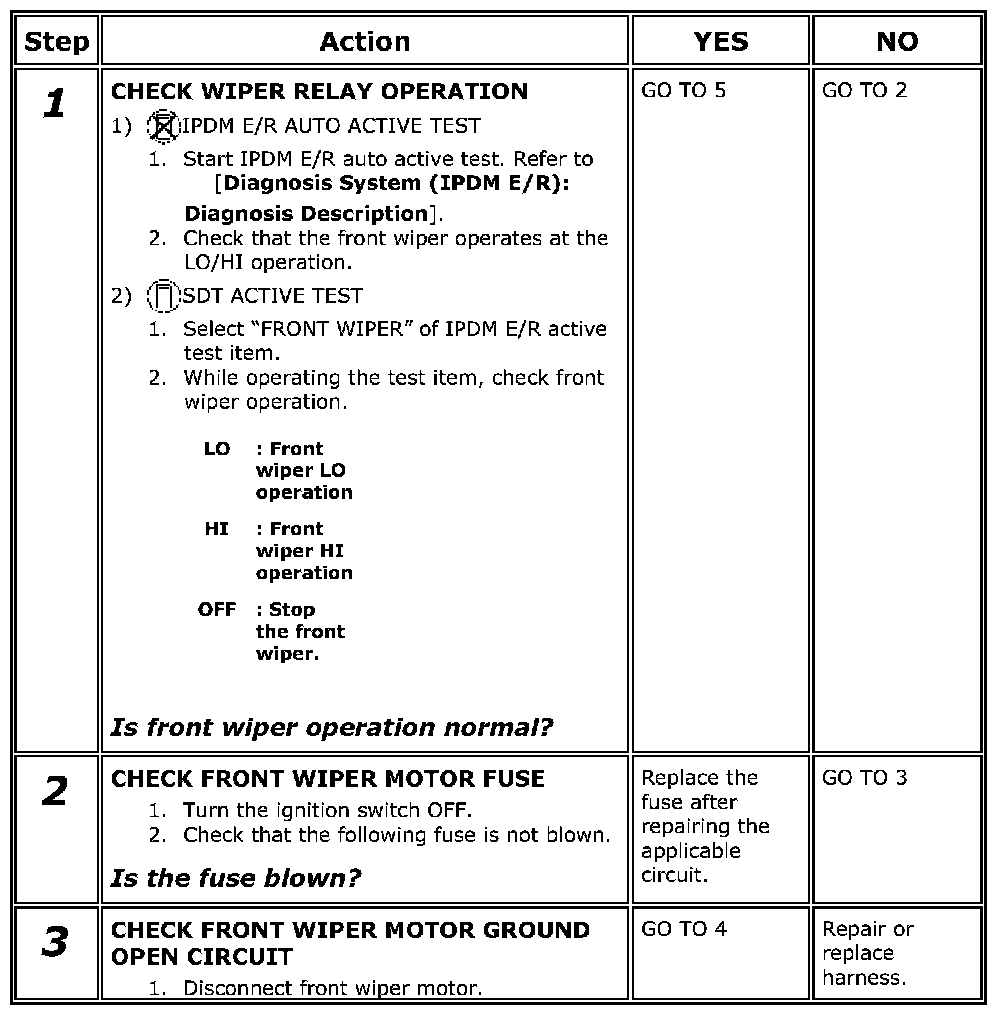

Step 1-3:

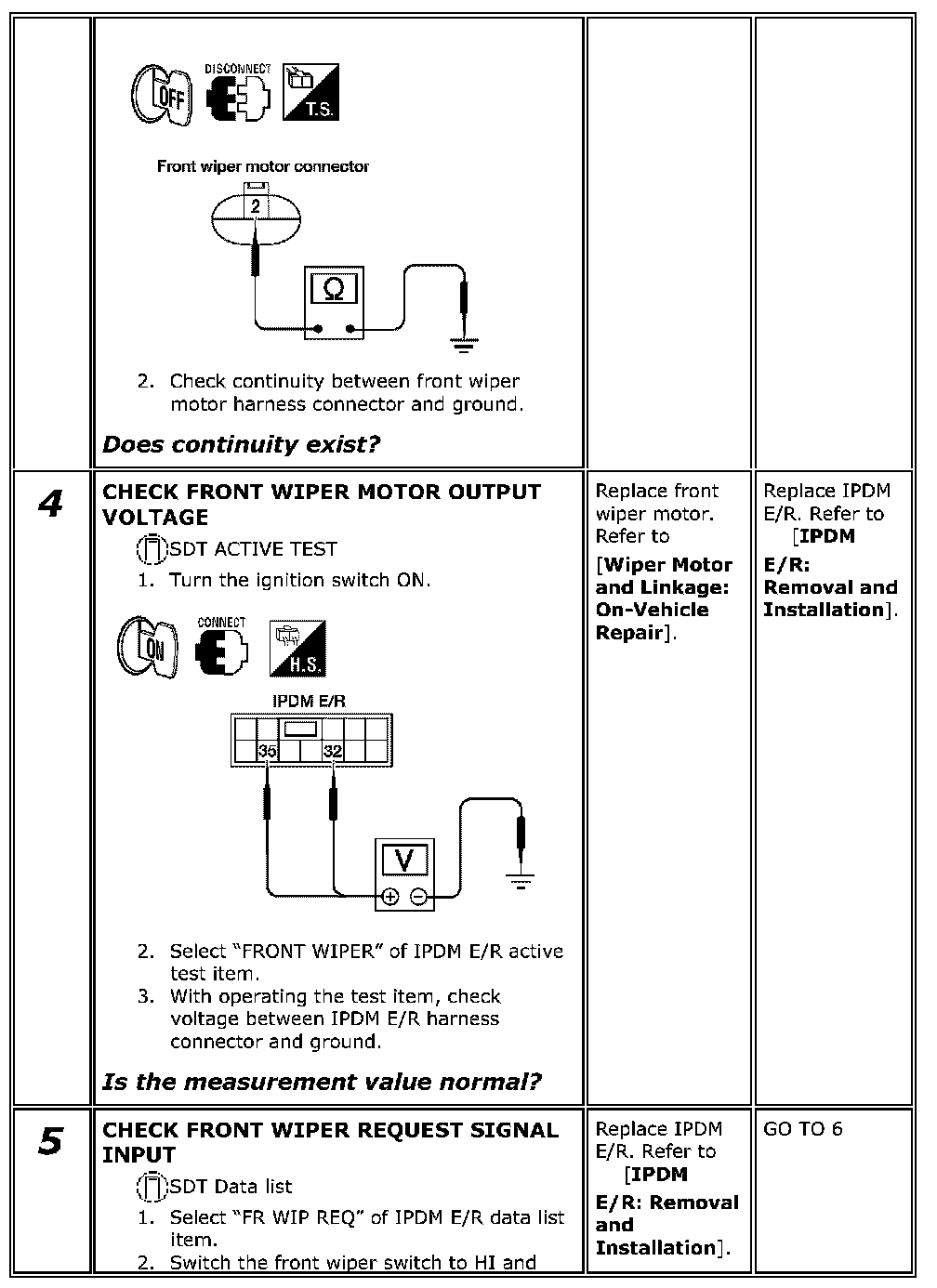

Step 3 (Continued)-5:




Step 5 (Continued)-6:
