Front Wiper Auto Stop Signal Circuit Check

Front Wiper Auto Stop Signal Circuit Check

Component Function Check

Step 1:






Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Front Wiper and Washer System: Wiring Diagram]. Electrical Diagrams

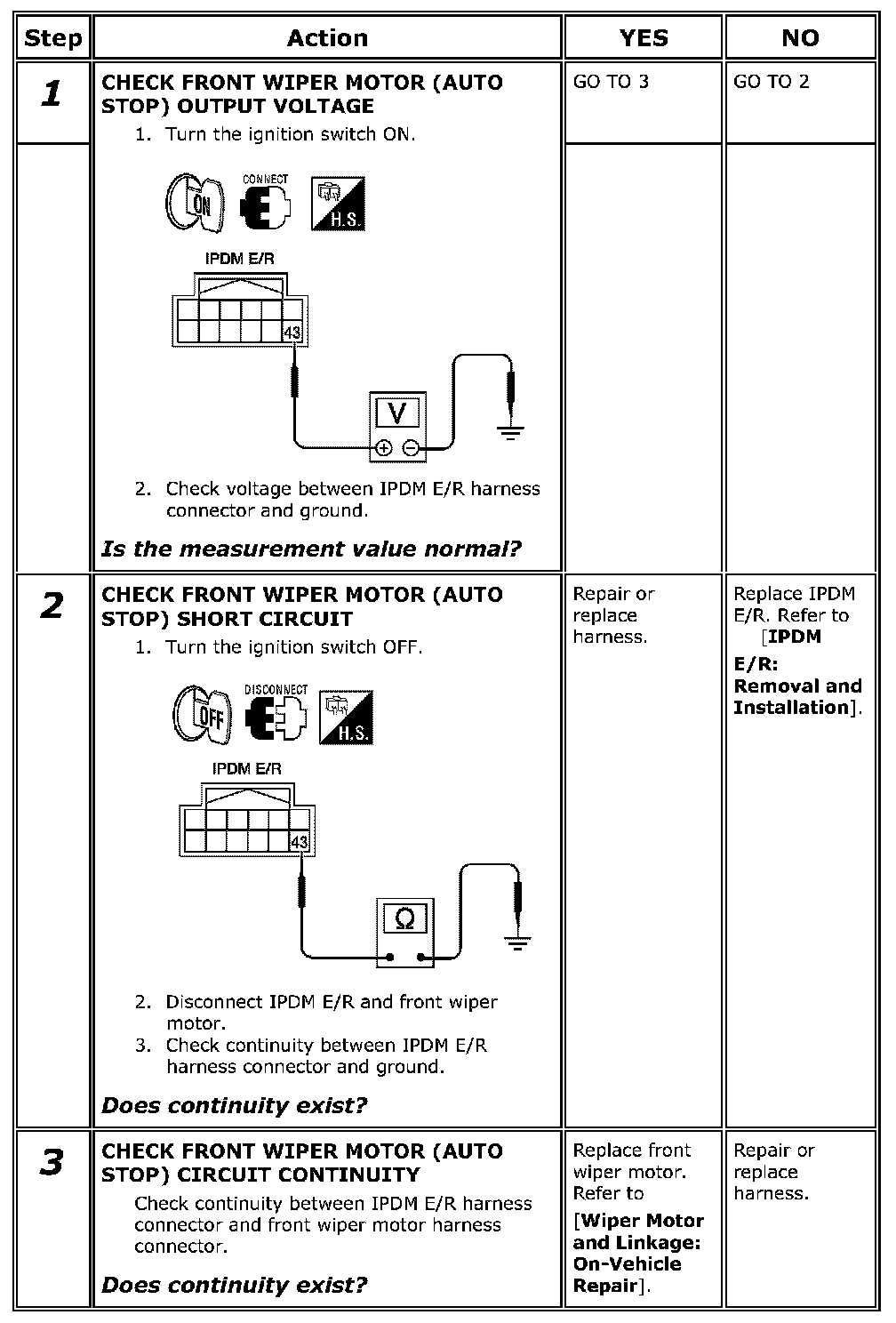

Step 1-3:
