Power Supply and Ground Circuit Check [Rear Power Window Switch]

Power Supply and Ground Circuit Check [Rear Power Window Switch]

Description
- BCM supplies power.
- Rear power window motor will be operated if rear power window switch is operated.

Component Function Check

Rear Power Window Switch

Step 1:

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Power Window System: Wiring Diagram].

Step 1:

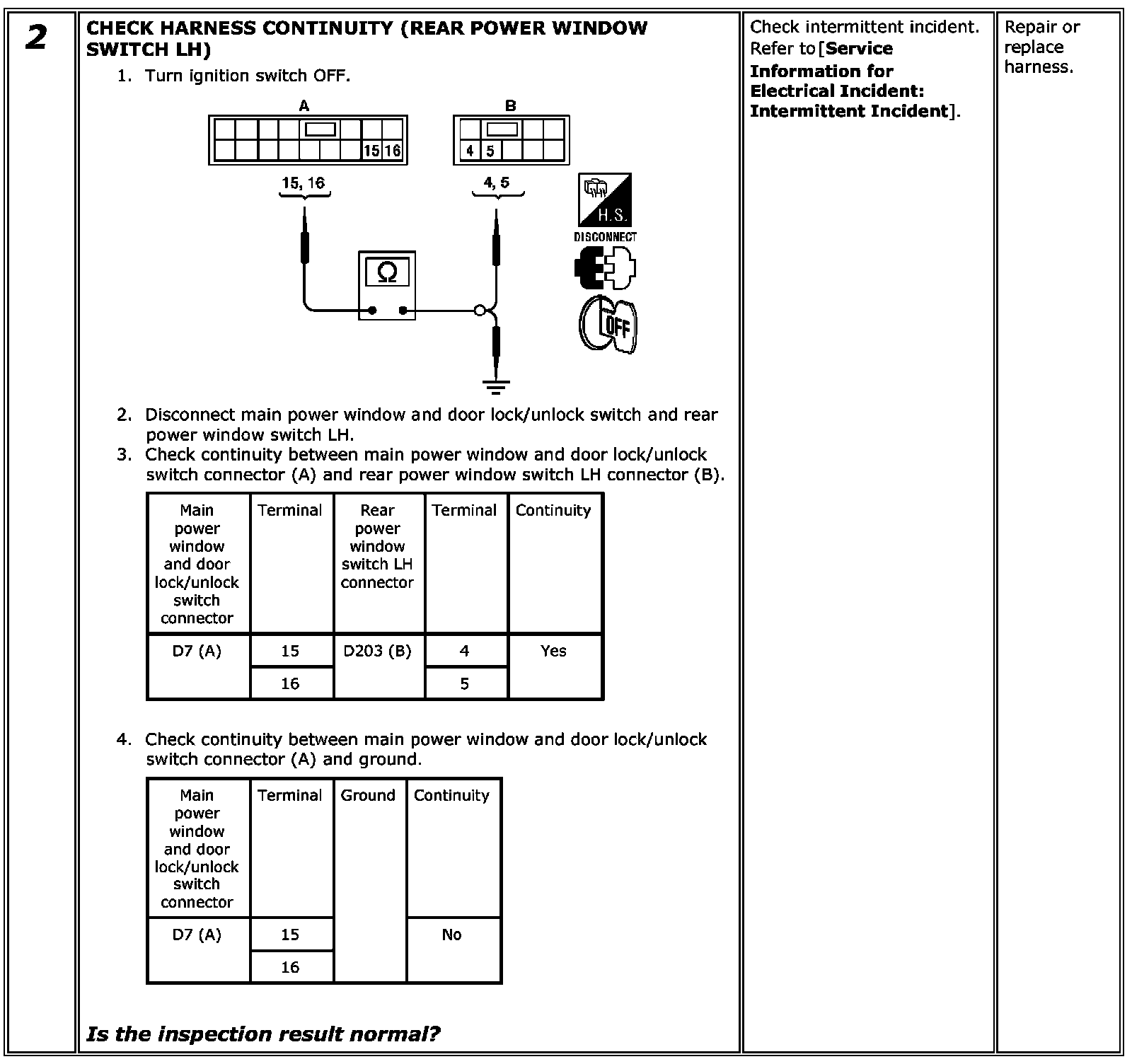

Step 2:

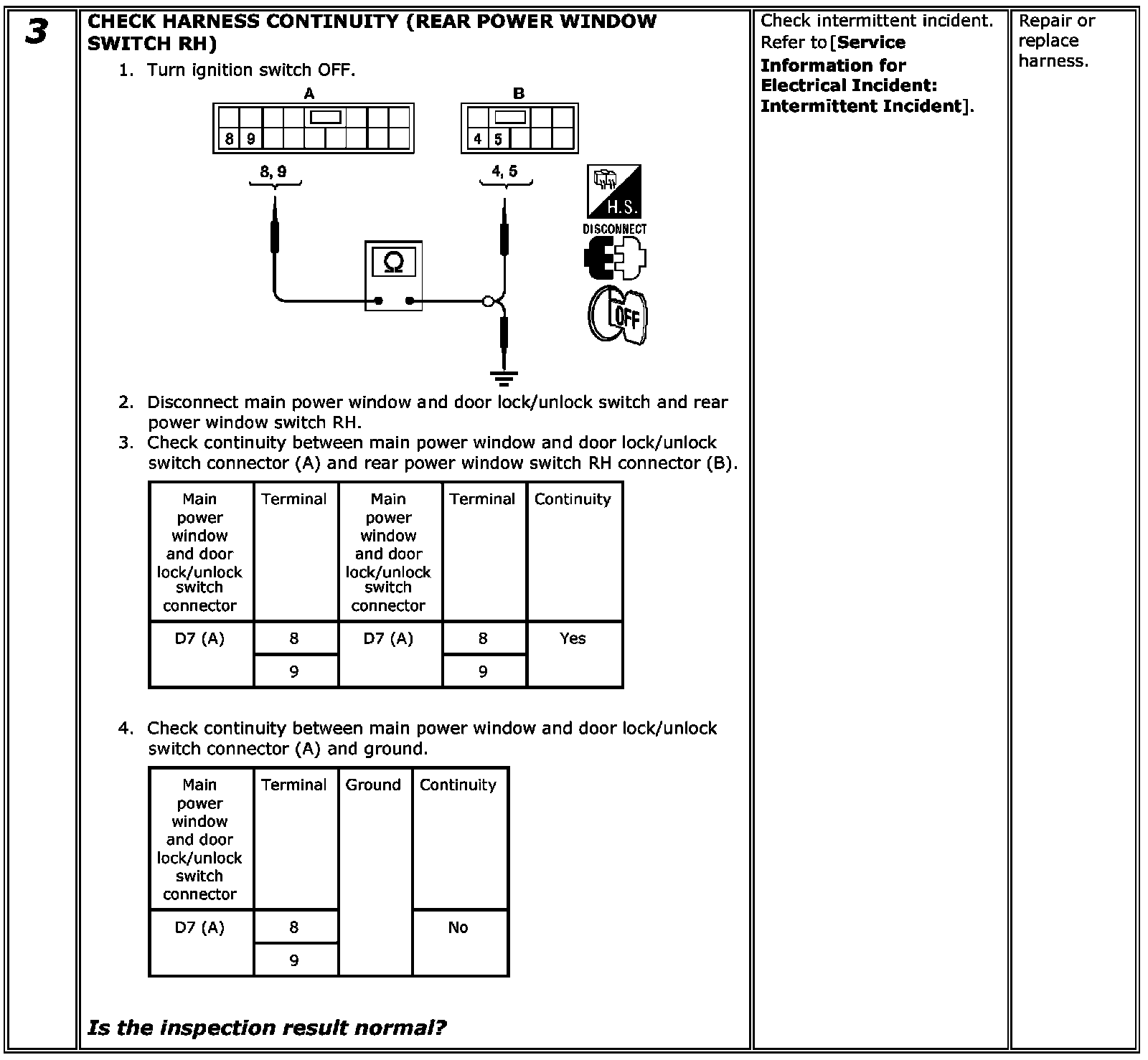

Step 3:

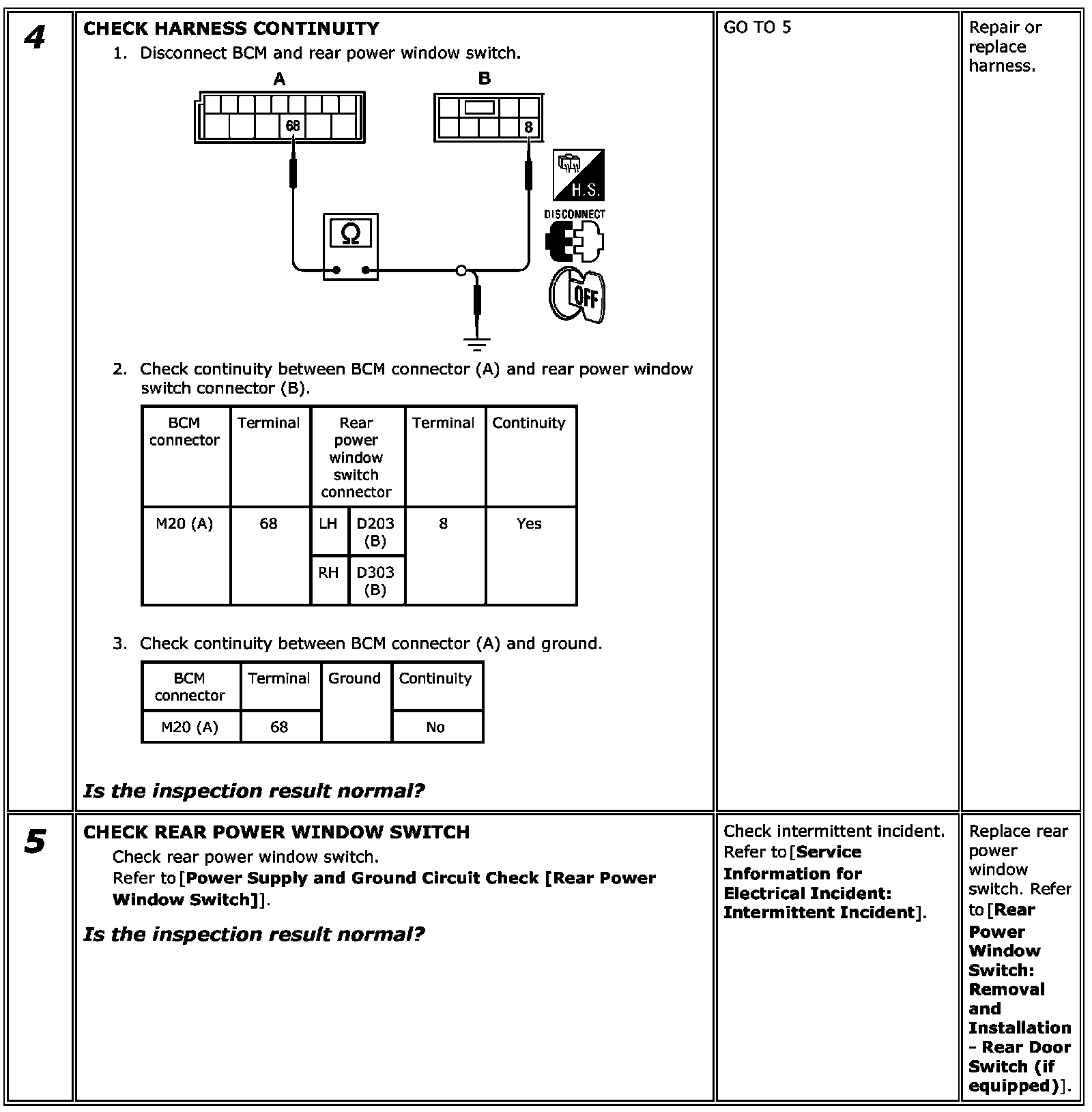

Step 4-5:

Component Inspection
