Door Switch Circuit Check [King Cab]

Door Switch Circuit Check [King Cab]

Description
Detects door open/close condition.

Component Function Check


Step 1:






Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Power Window System: Wiring Diagram].

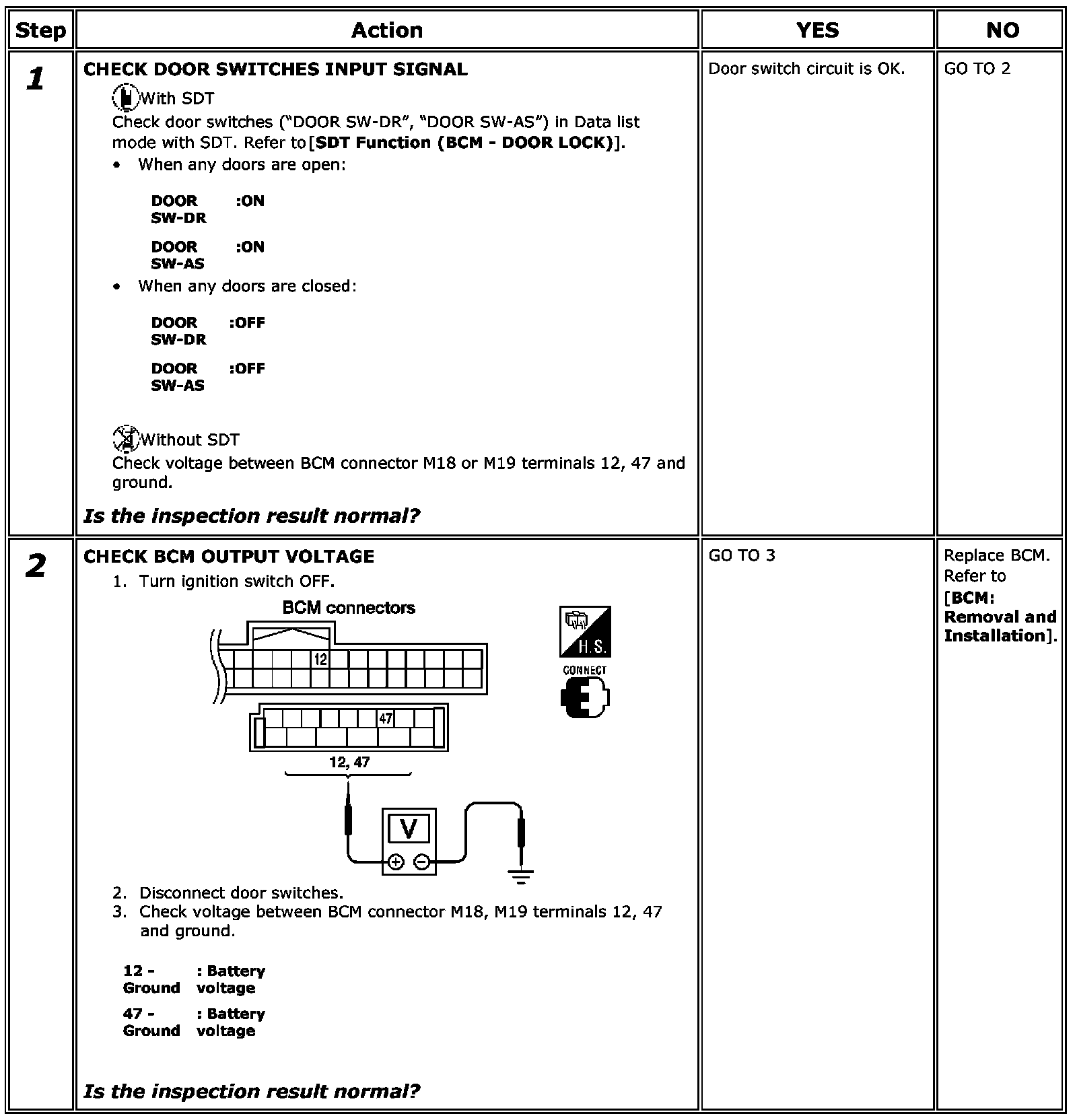

Step 1-2:

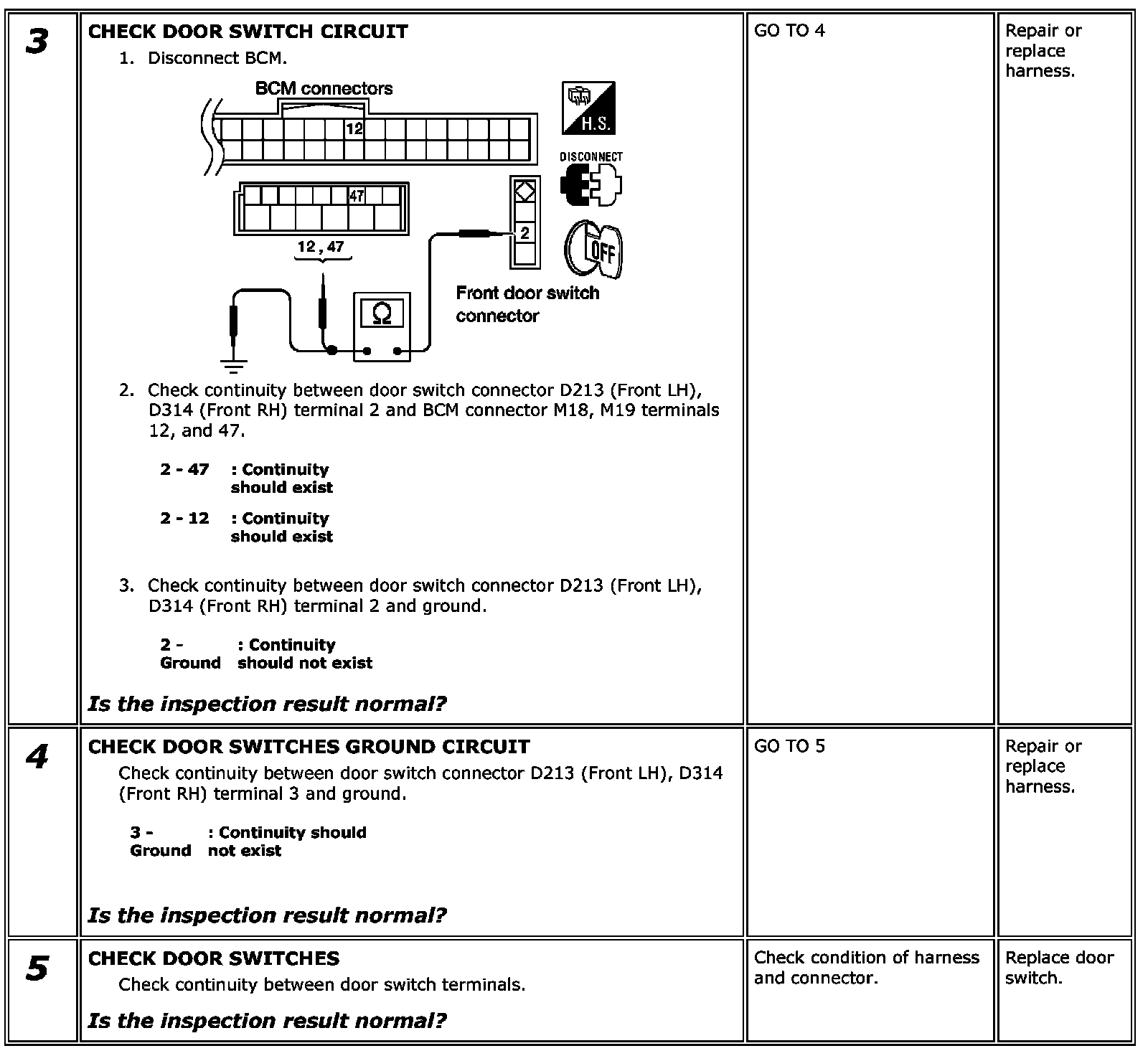

Step 3-5:
