Door Switch Circuit Check [Crew Cab]

Door Switch Circuit Check [Crew Cab]

Description
Detects door open/close condition.

Component Function Check

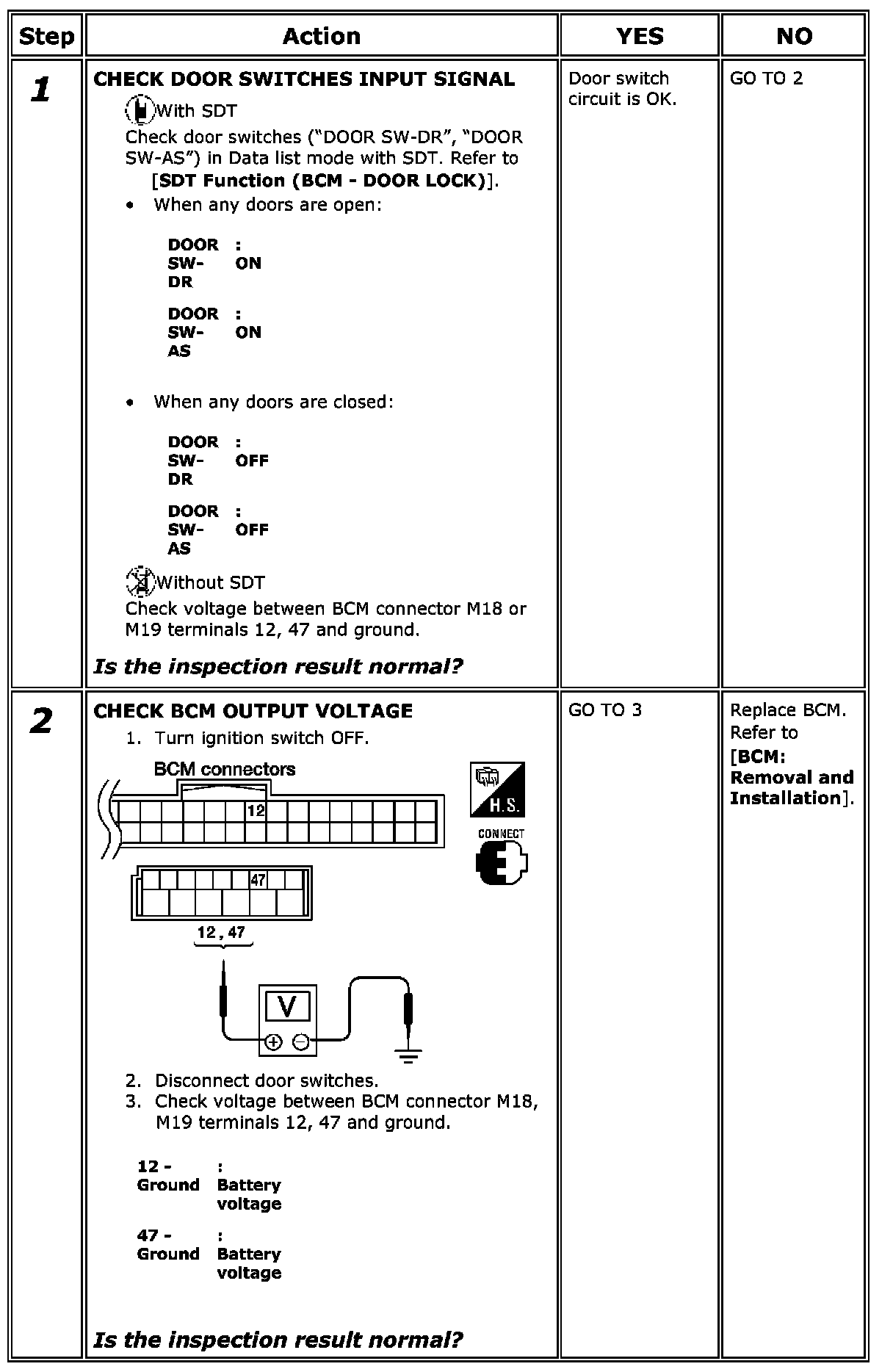

Step 1:






Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Power Window System: Wiring Diagram].


Step 1-2:

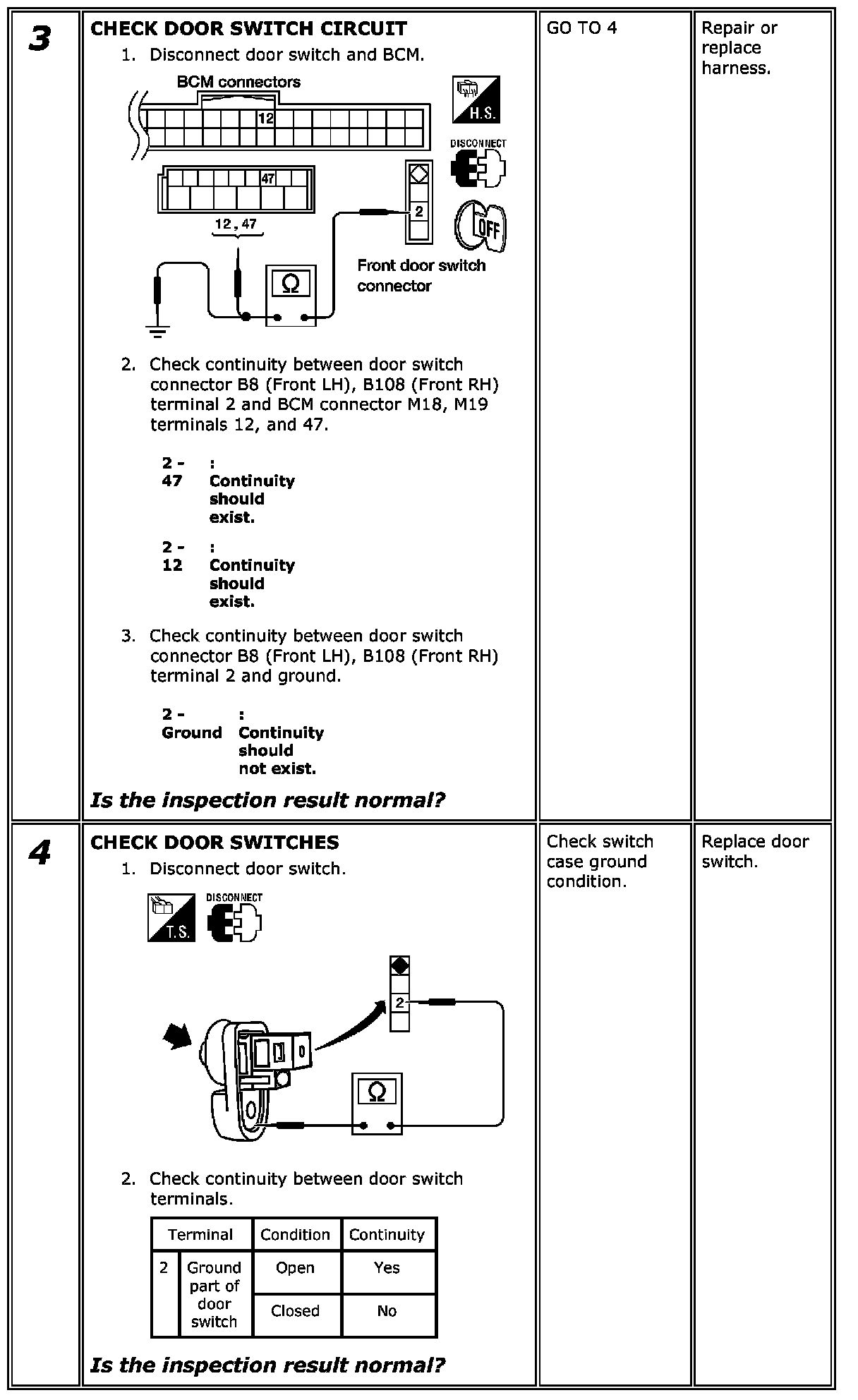

Step 3-4:
