Rear Window Defogger Power Supply and Ground Circuit Check
Rear Window Defogger Power Supply and Ground Circuit CheckDescription
Heats the heating wire with the power supply from the rear window defogger relay to prevent the rear window from fogging up.
Component Function Check
Step 1:
Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Defogger Control System: Wiring Diagram].

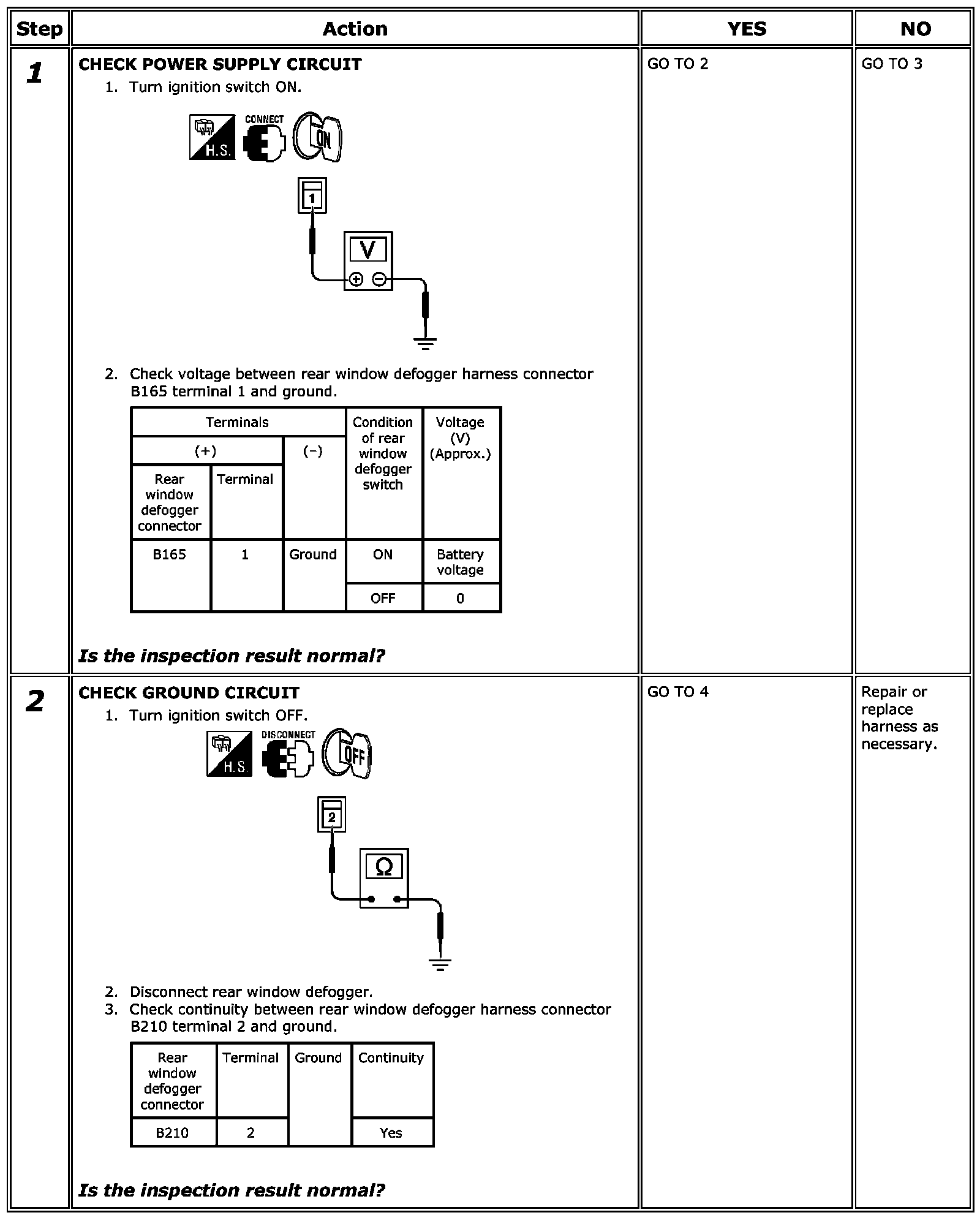

Step 1-2:

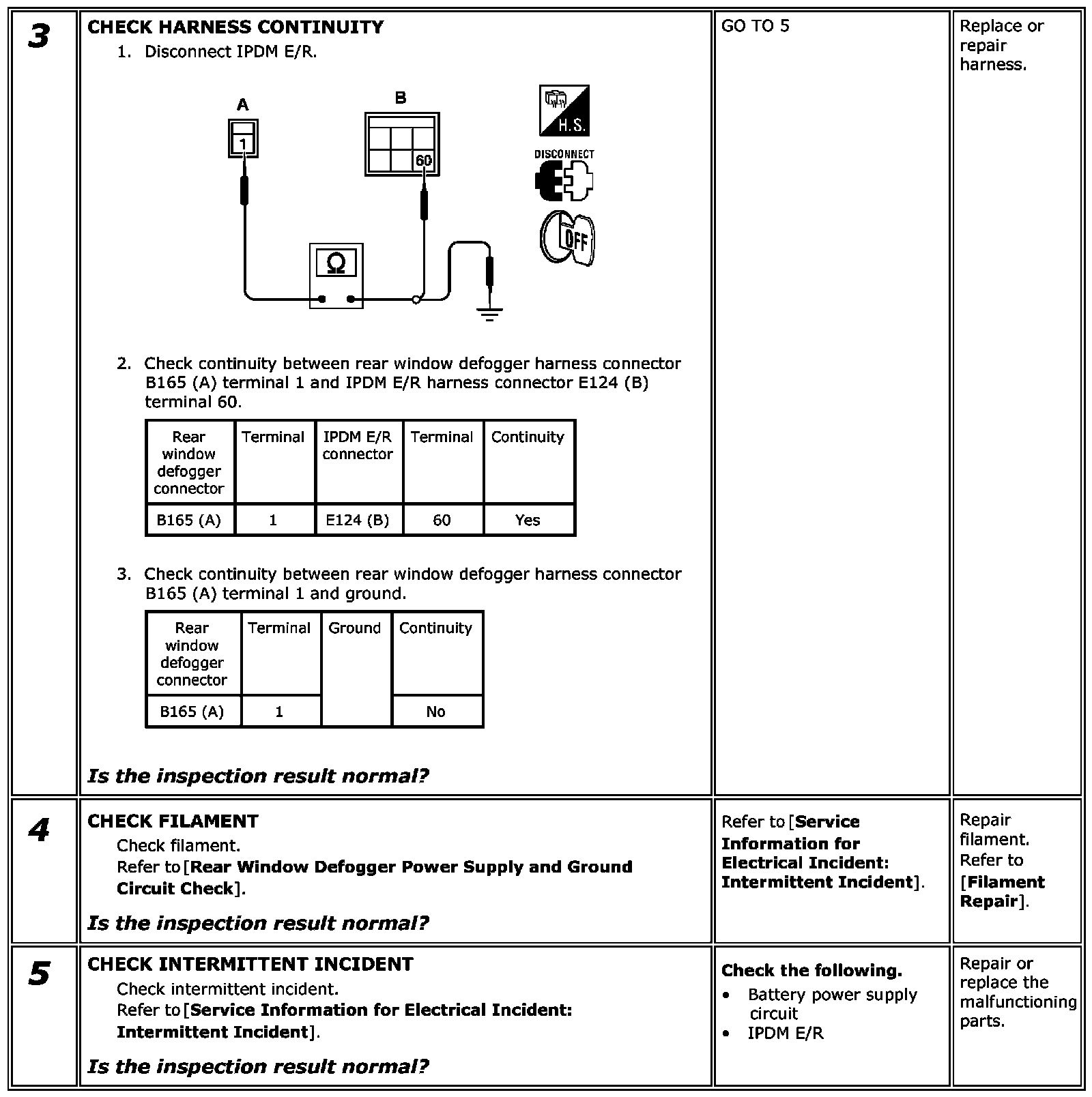

Step 3-5:
Component Inspection
Step 1:
