Heated Glass Element Switch: Testing and Inspection

Rear Window Defogger Switch Circuit Check

Description
- The rear window defogger is operated by turning the rear window defogger switch ON.
- Turns the indicator lamp in the rear window defogger switch ON when operating the rear window defogger.

Component Function Check

Step 1:

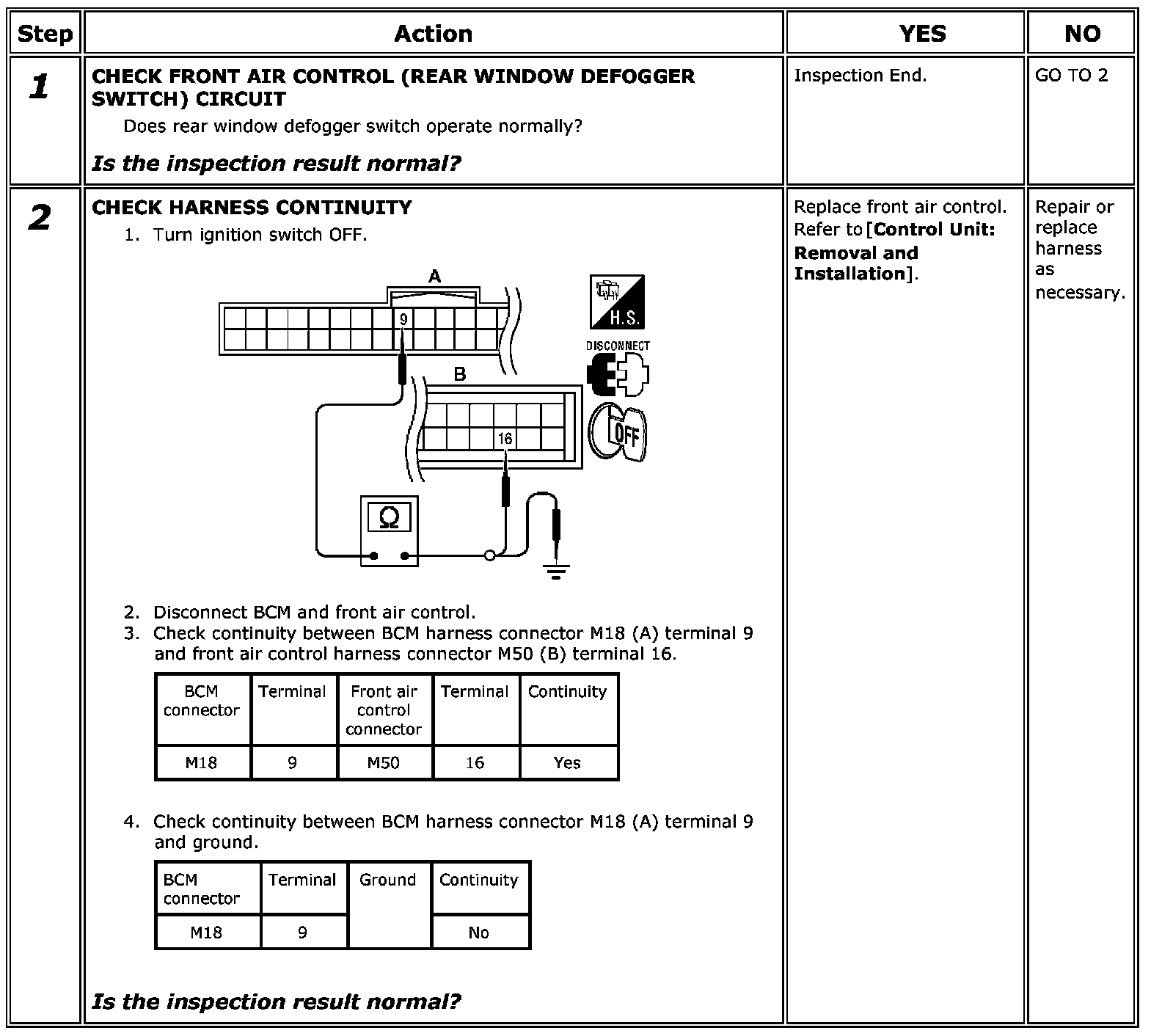

Diagnosis Procedure Front Air Control
Regarding Wiring Diagram information, refer to [Defogger Control System: Wiring Diagram].

Step 1-2:
