Heated Glass Element Relay: Testing and Inspection

Rear Window Defogger Relay Circuit Check

Description
Power is supplied to the rear window defogger with BCM control.

Component Function Check

Step 1:

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Defogger Control System: Wiring Diagram].

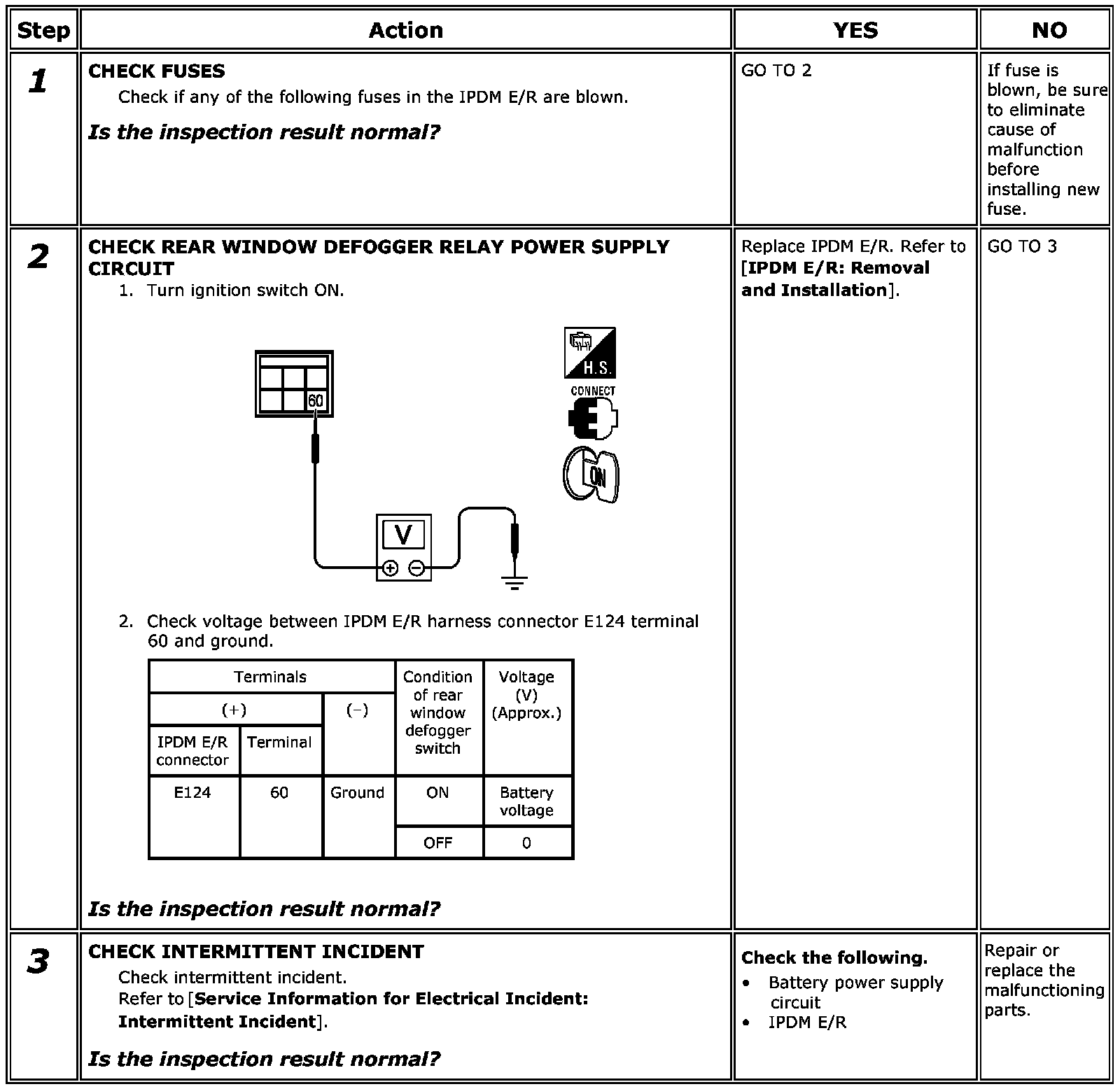

Step 1-3:
