DIFF Lock Indicator Lamp Inoperative

DIFF Lock Indicator Lamp Inoperative

SYMPTOM:
DIFF LOCK indicator lamp does not turn ON for approximately. 1 second when turning ignition switch to "ON".

Diagnostic Procedure

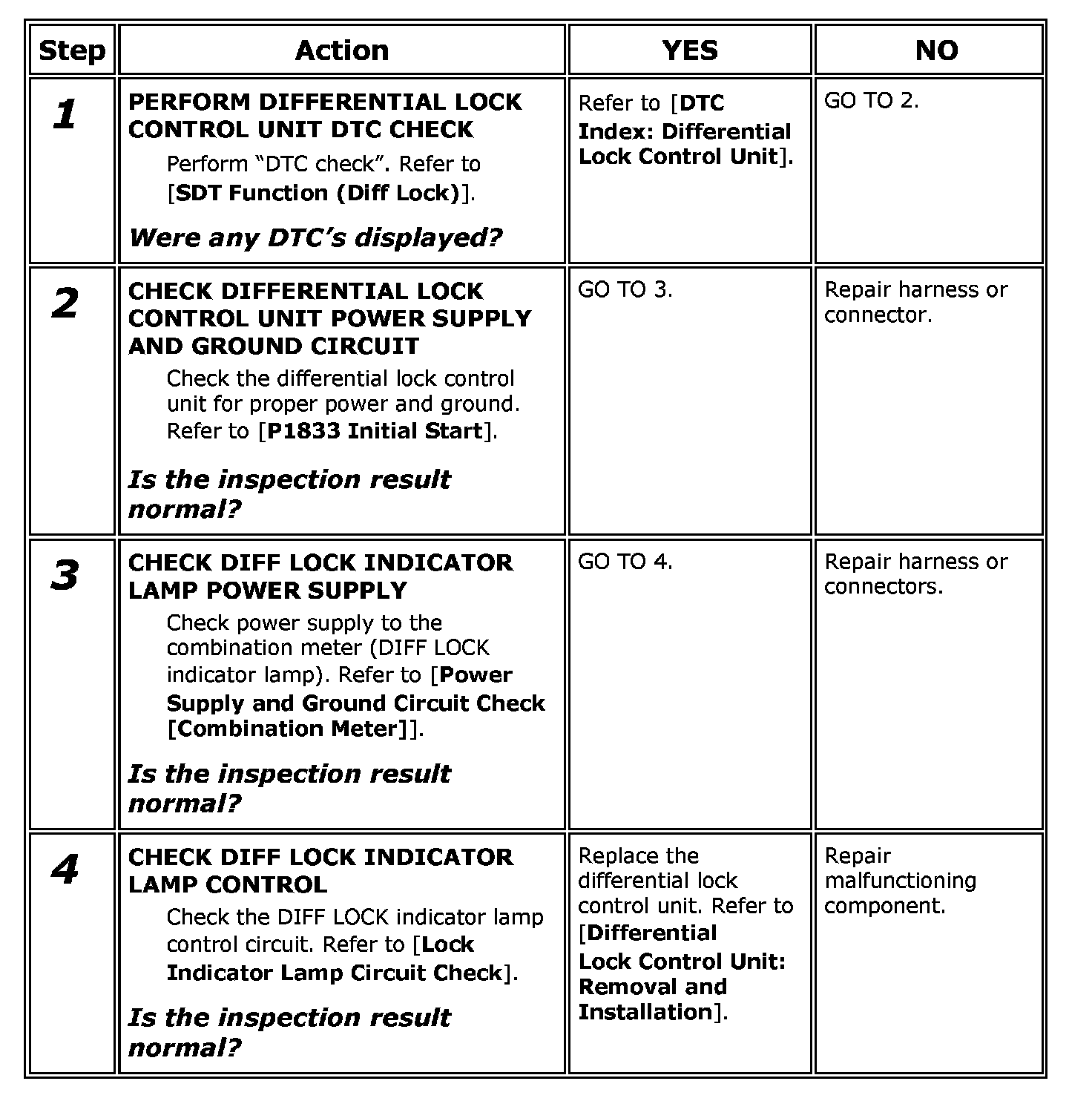

Step 1-4:
