DIFF Lock Indicator Lamp Does Not Turn on With Differential Lock Switched On

DIFF LOCK Indicator Lamp Does Not Turn On with Differential Lock Switched On

SYMPTOM:
DIFF LOCK indicator lamp does not turn ON when turning differential lock mode switch to "ON" after engine start.

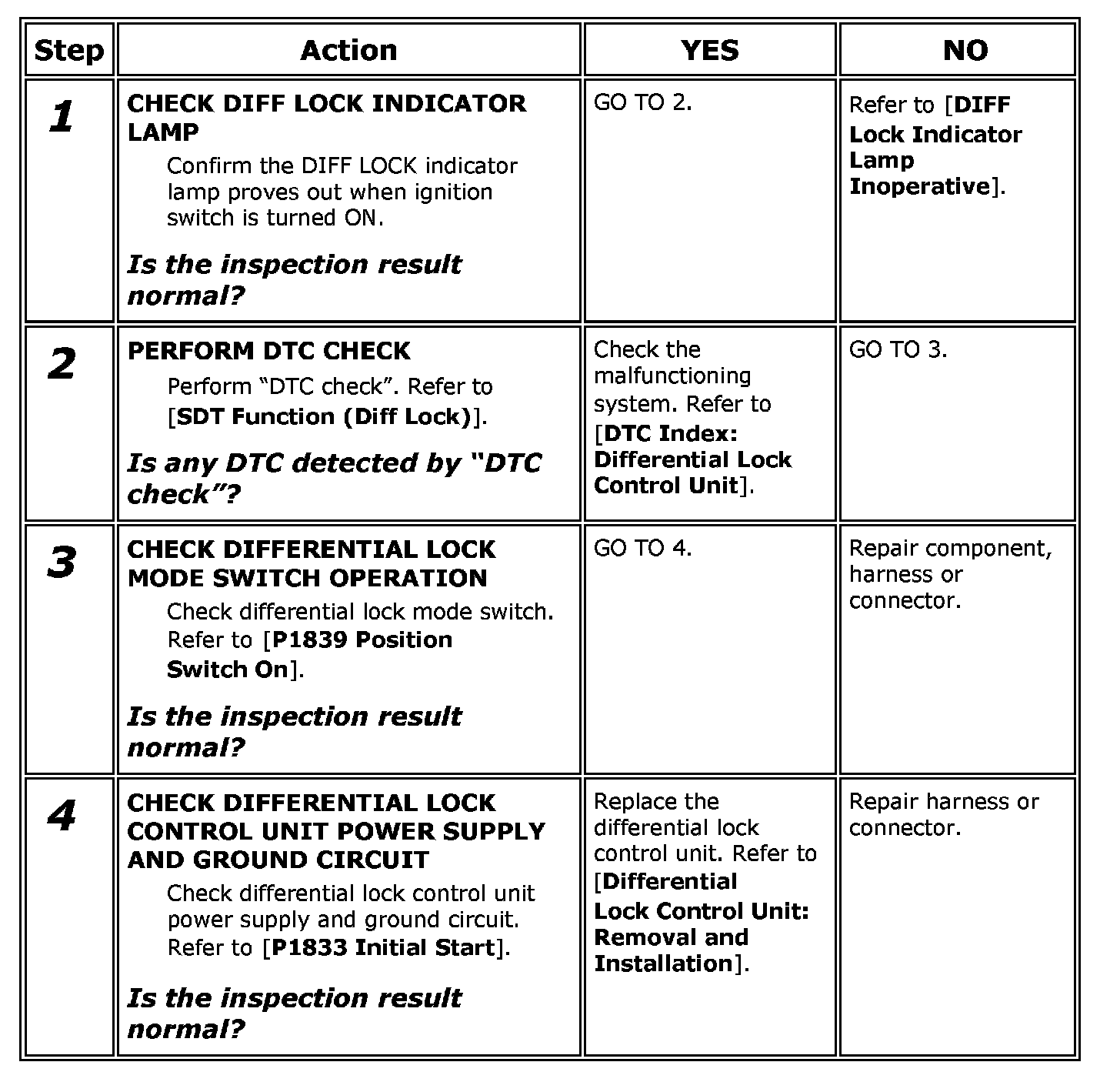

Diagnostic Procedure

Step 1-4:
