[5M/T]

Clutch Disc, Clutch Cover: Adjustment after Installation [5M/T]

Adjustment after Installation

Clutch Cover

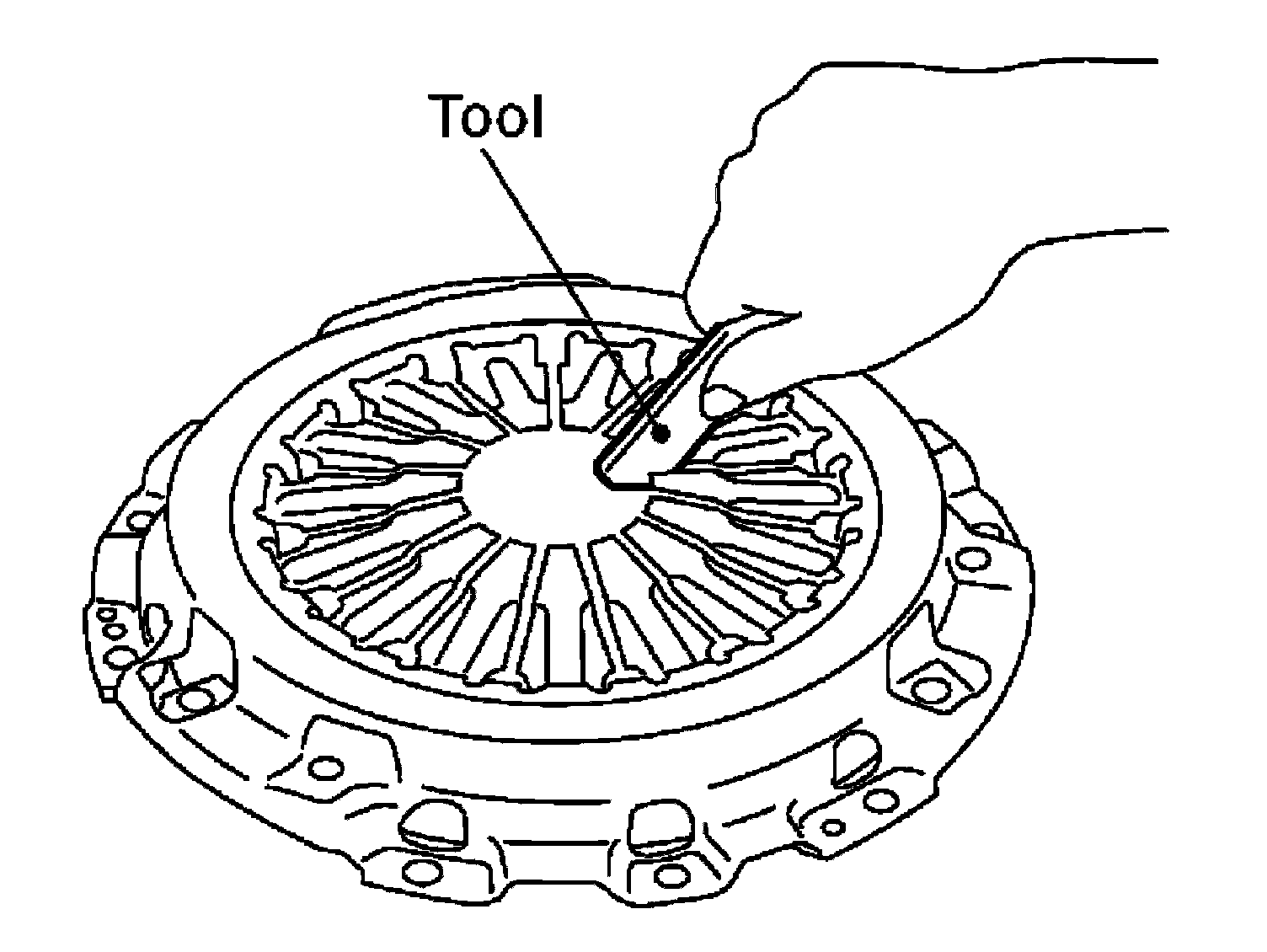

With the clutch cover installed on the vehicle, check the diaphragm spring toe height for unevenness. If unevenness exceeds the limit, adjust the diaphragm spring toe height using Tool.





Uneven limit of diaphragm spring toe height : Refer to [Service Data and Specifications].

Tool number : ST20050240 ( - )
