Main Power Supply and Ground Circuit Check

Main Power Supply and Ground Circuit Check

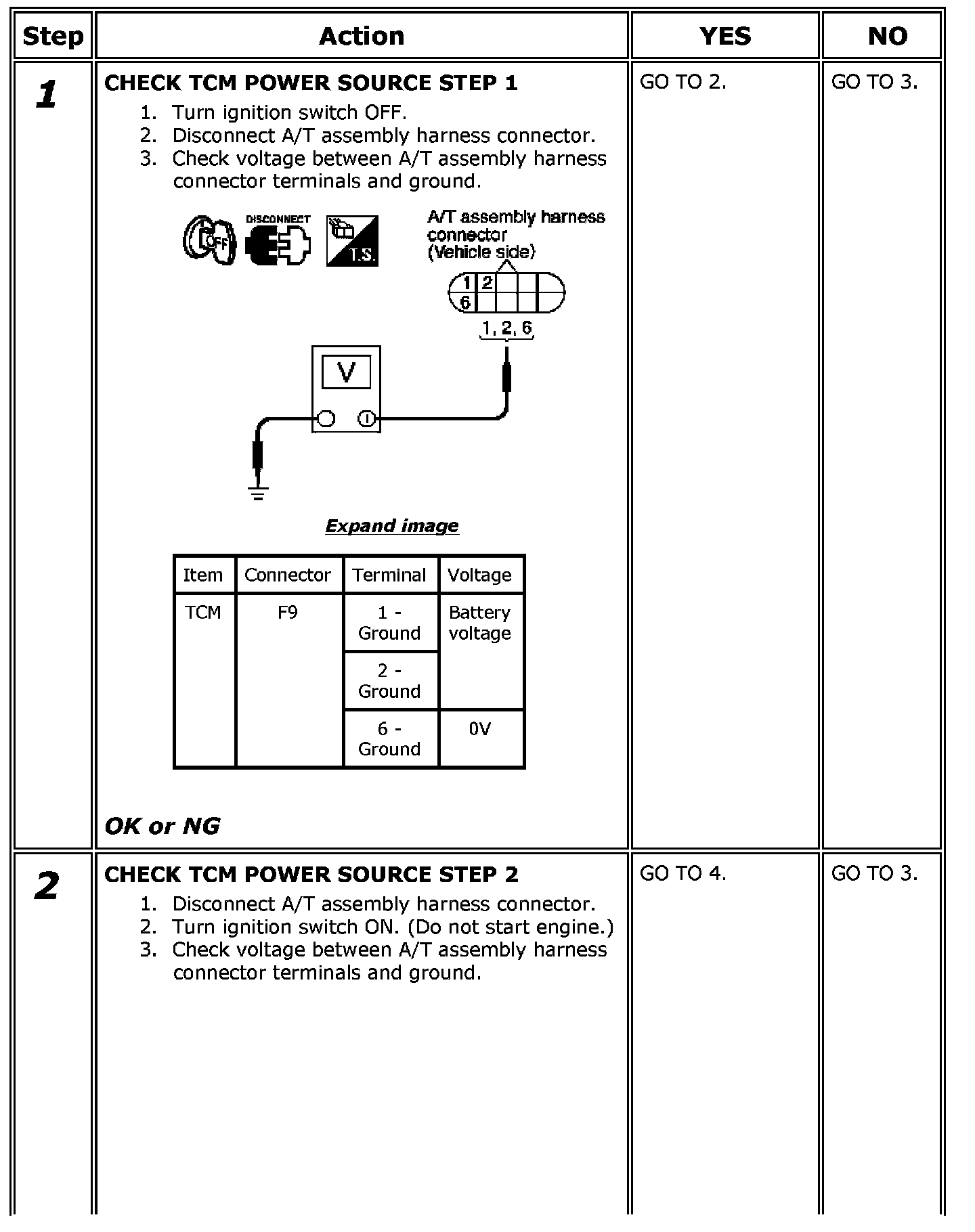

Step 1-2:

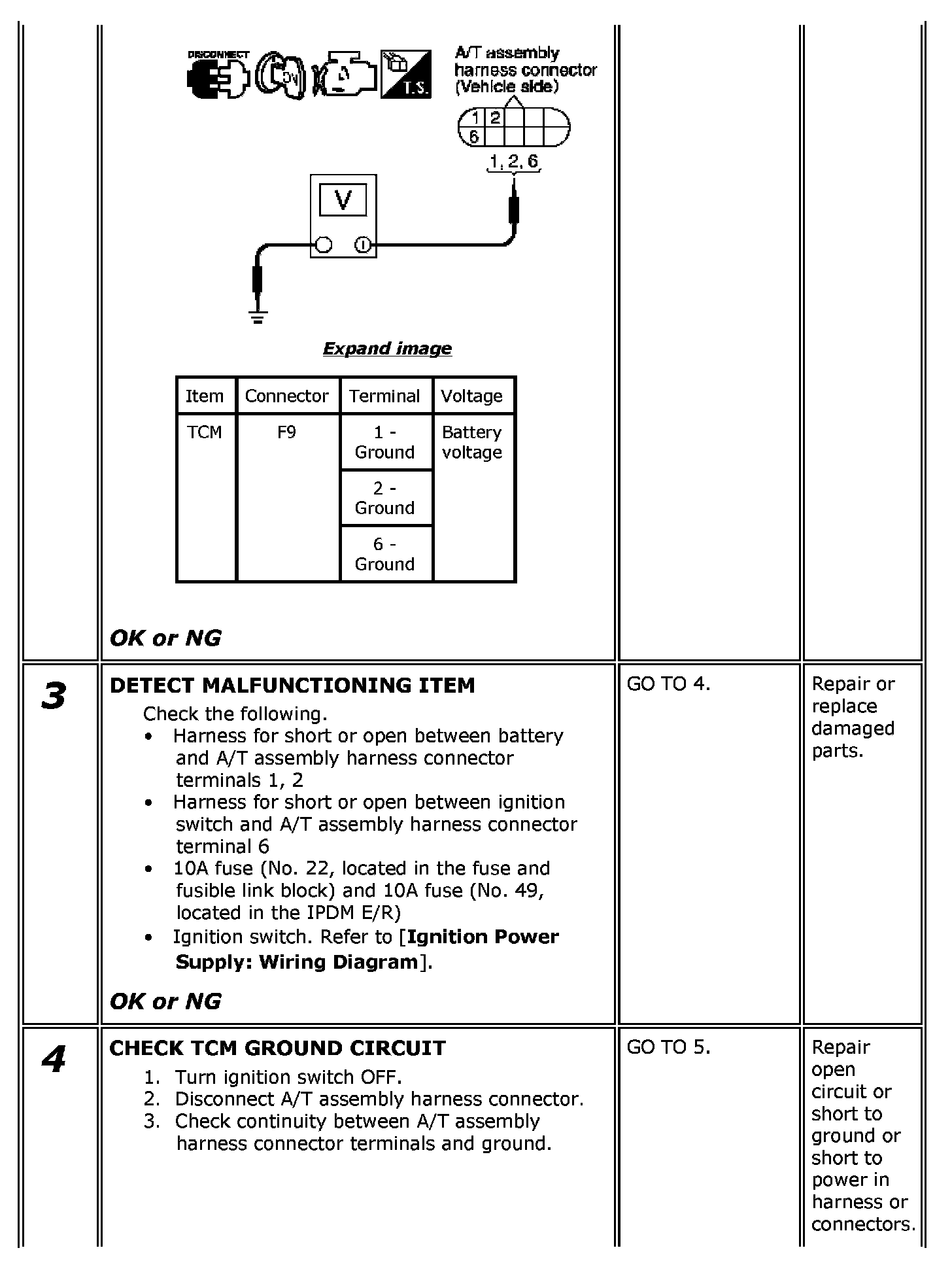

Step 2-4:

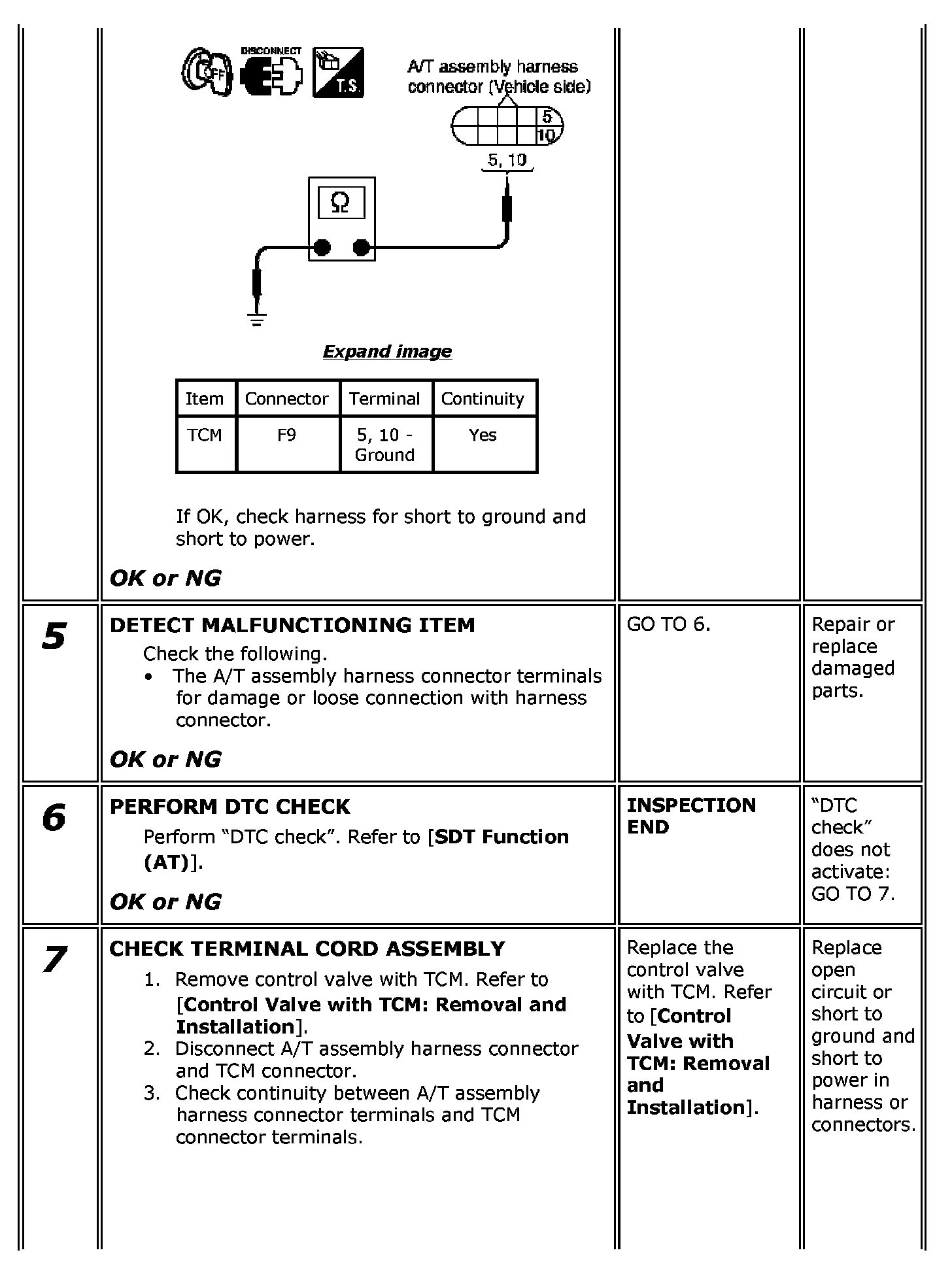

Step 4-7:




Step 7:




Step 7:
