A/T Shift Lock System Circuit Check
A/T Shift Lock System Circuit CheckDescription
Refer to [A/T Shift Lock System: System Description].
Diagnosis Procedure
Regarding Wiring Diagram information, refer to [A/T Shift Lock System: Wiring Diagram].

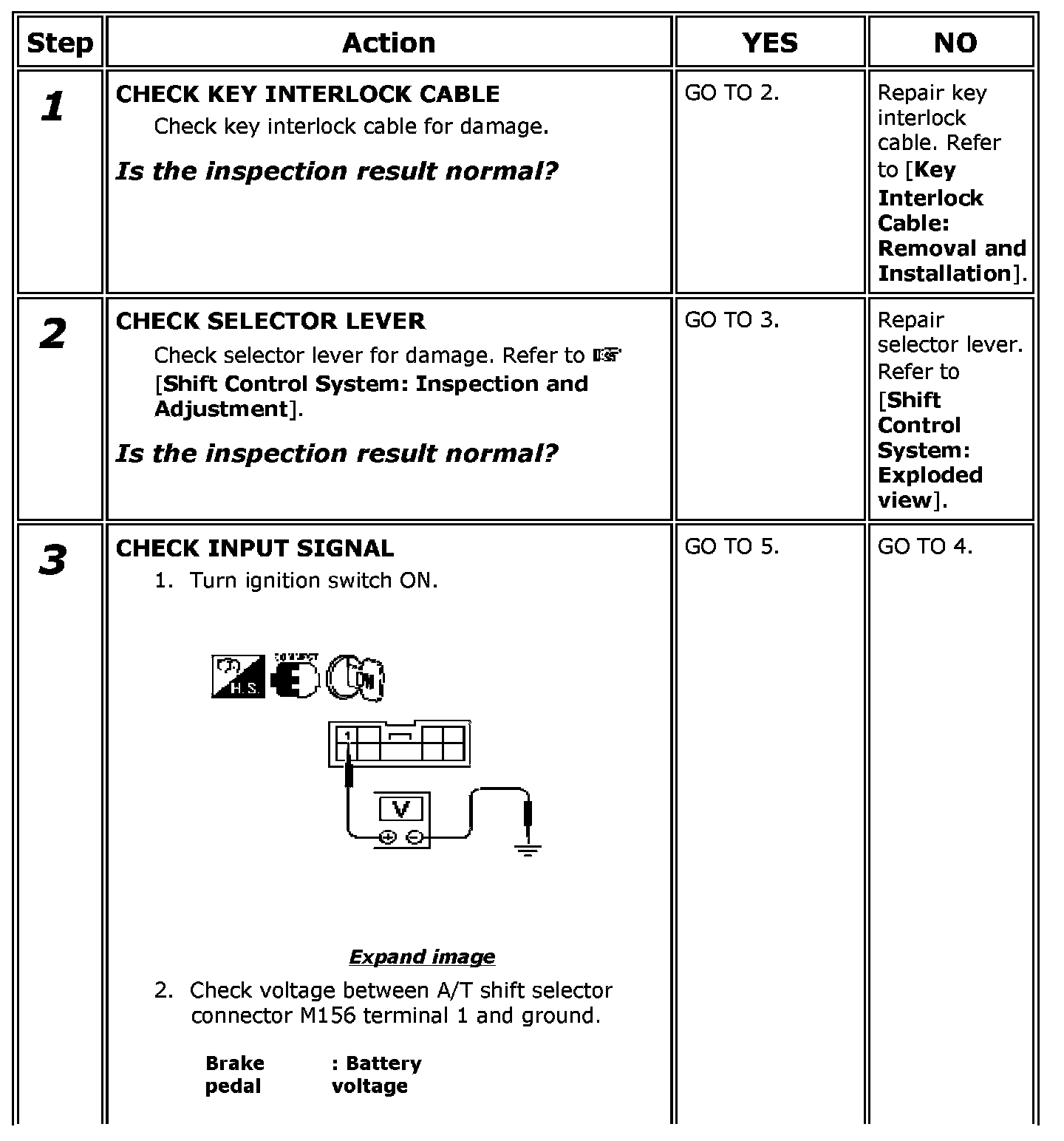

Step 1-3:

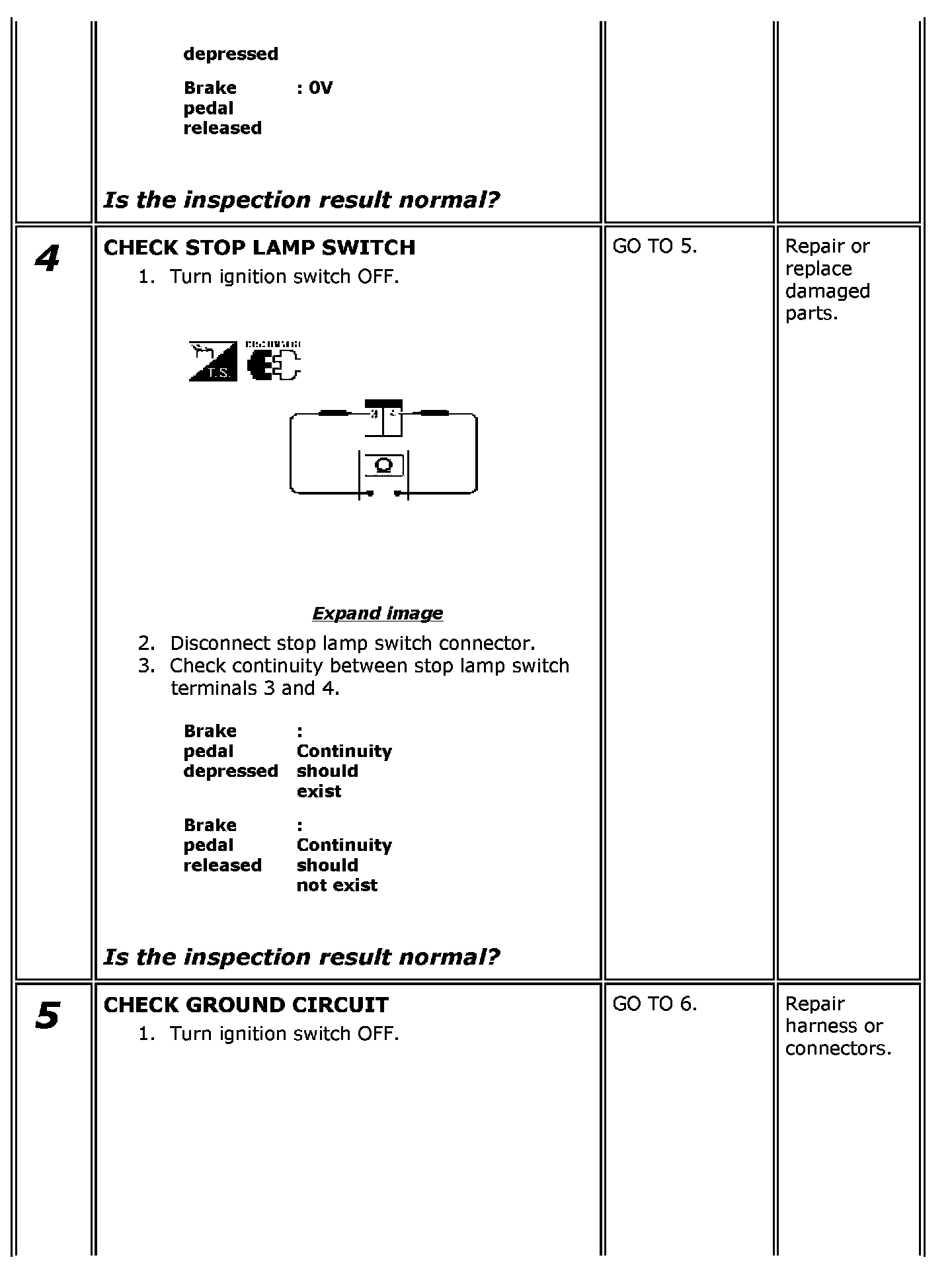

Step 3-5:

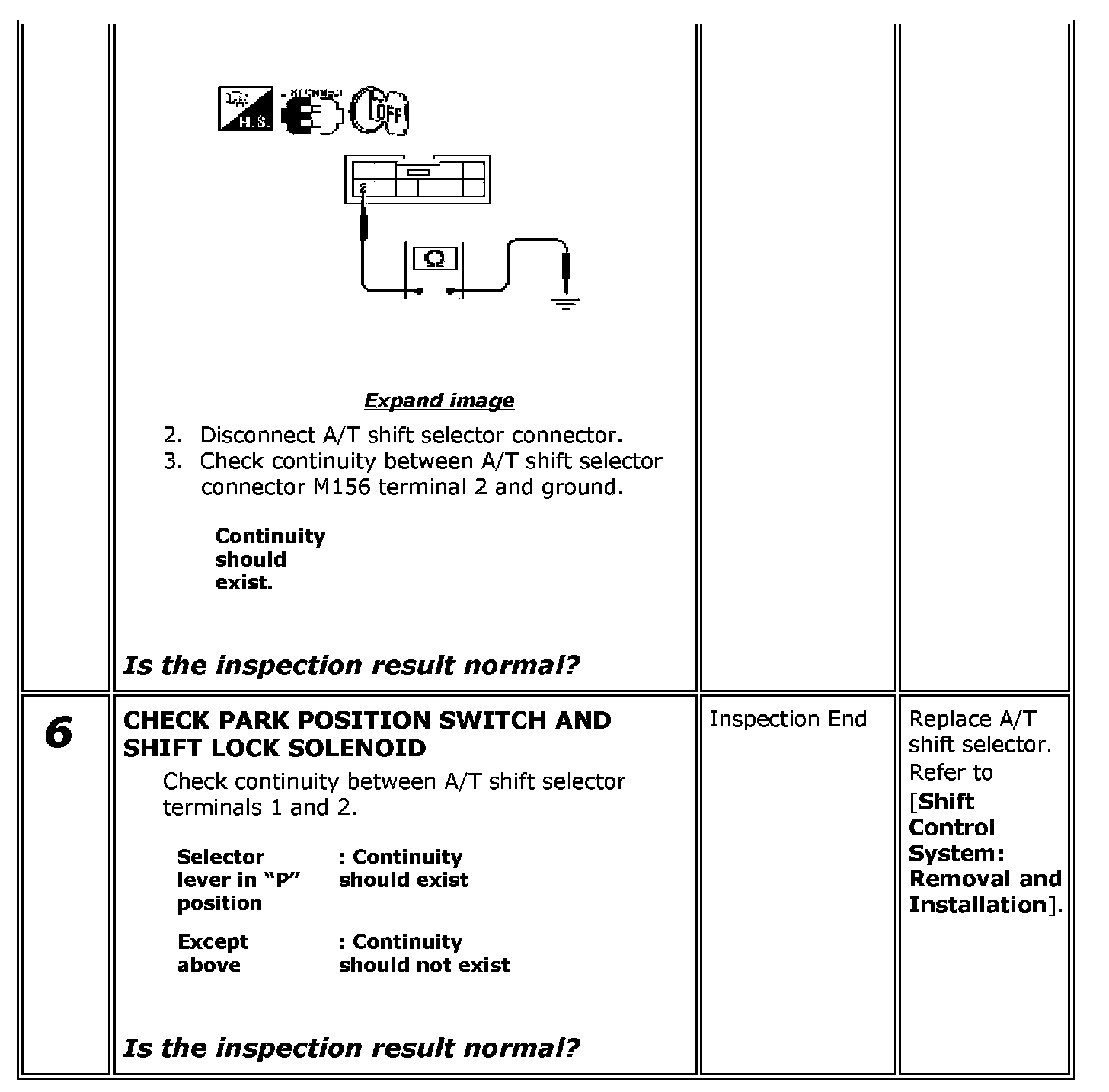

Step 5-6:
