Symptom Related Diagnostic Procedures

The Key Warning Does Not Sound

Description
Key warning does not sound even though key is in ignition and front door LH is opened.

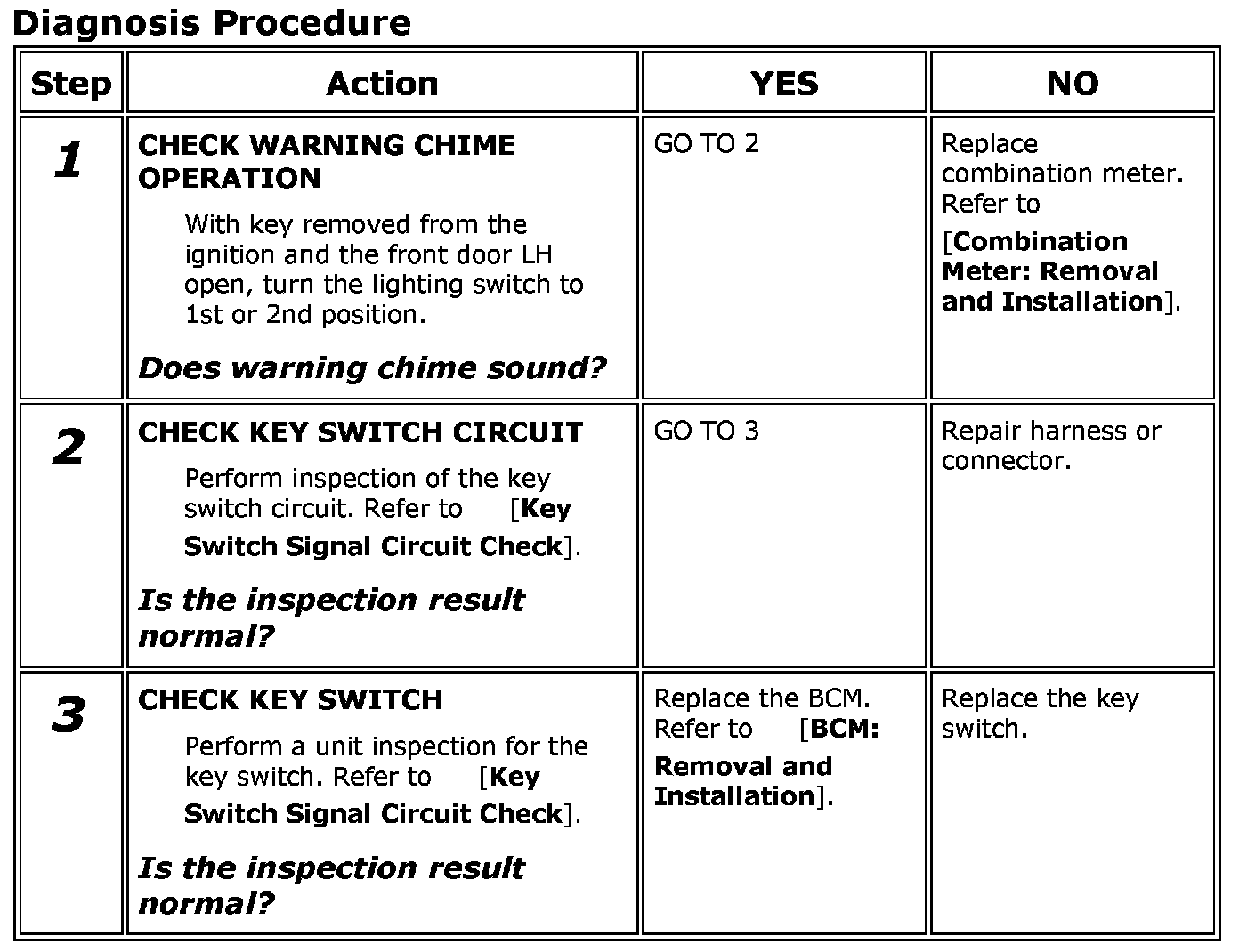

Diagnosis Procedure


Step 1-3:
