Component Tests and General Diagnostics

Key Switch Signal Circuit Check

Description
Transmits a key switch signal to the BCM.

Component Function Check

Step 1:

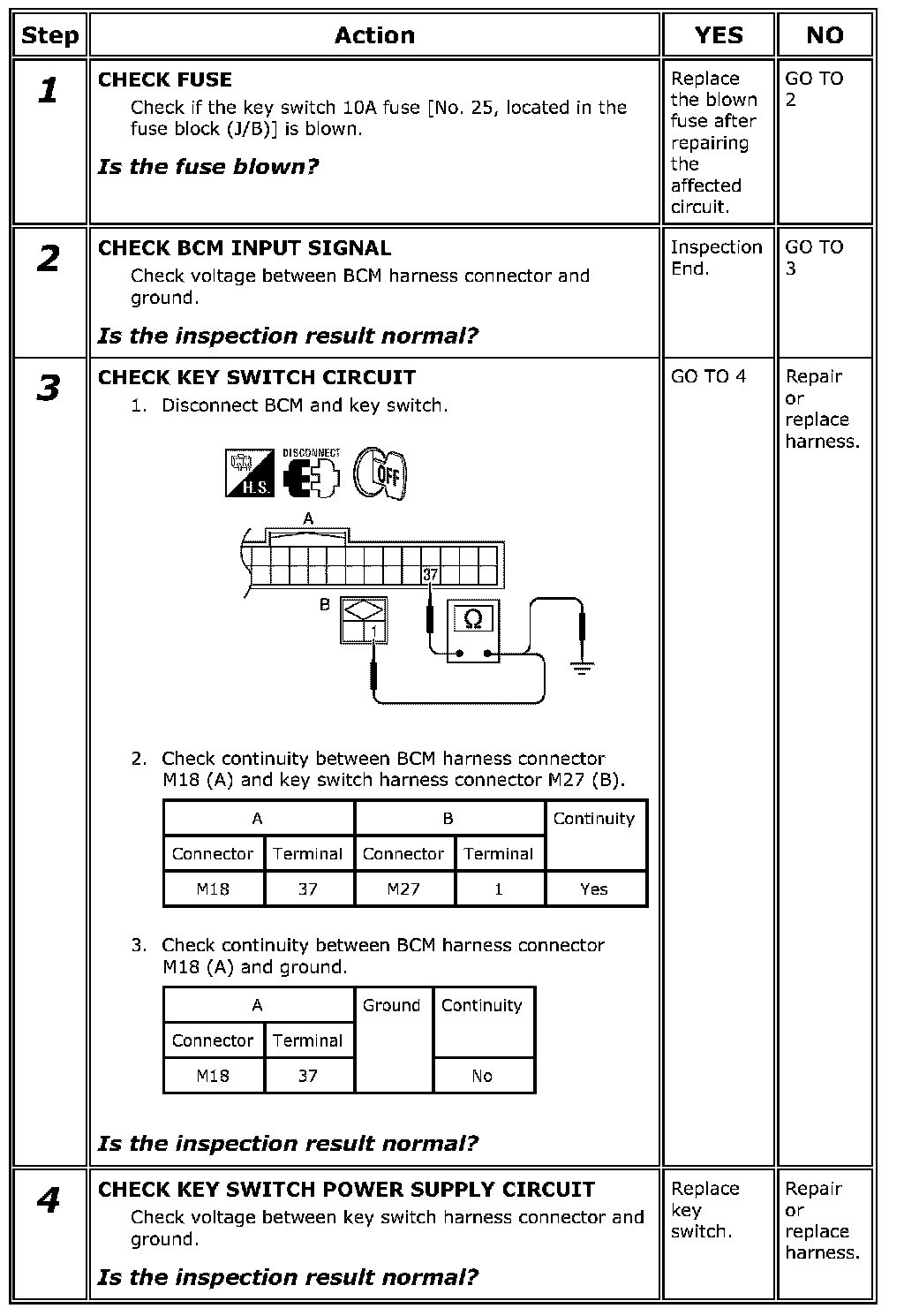

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Warning Chime System: Wiring Diagram]. Warning Chime System: System Diagram

Step 1-4:






Component Inspection

Step 1:
