Initial Inspection and Diagnostic Overview

Diagnosis and Repair Workflow

Overall Sequence

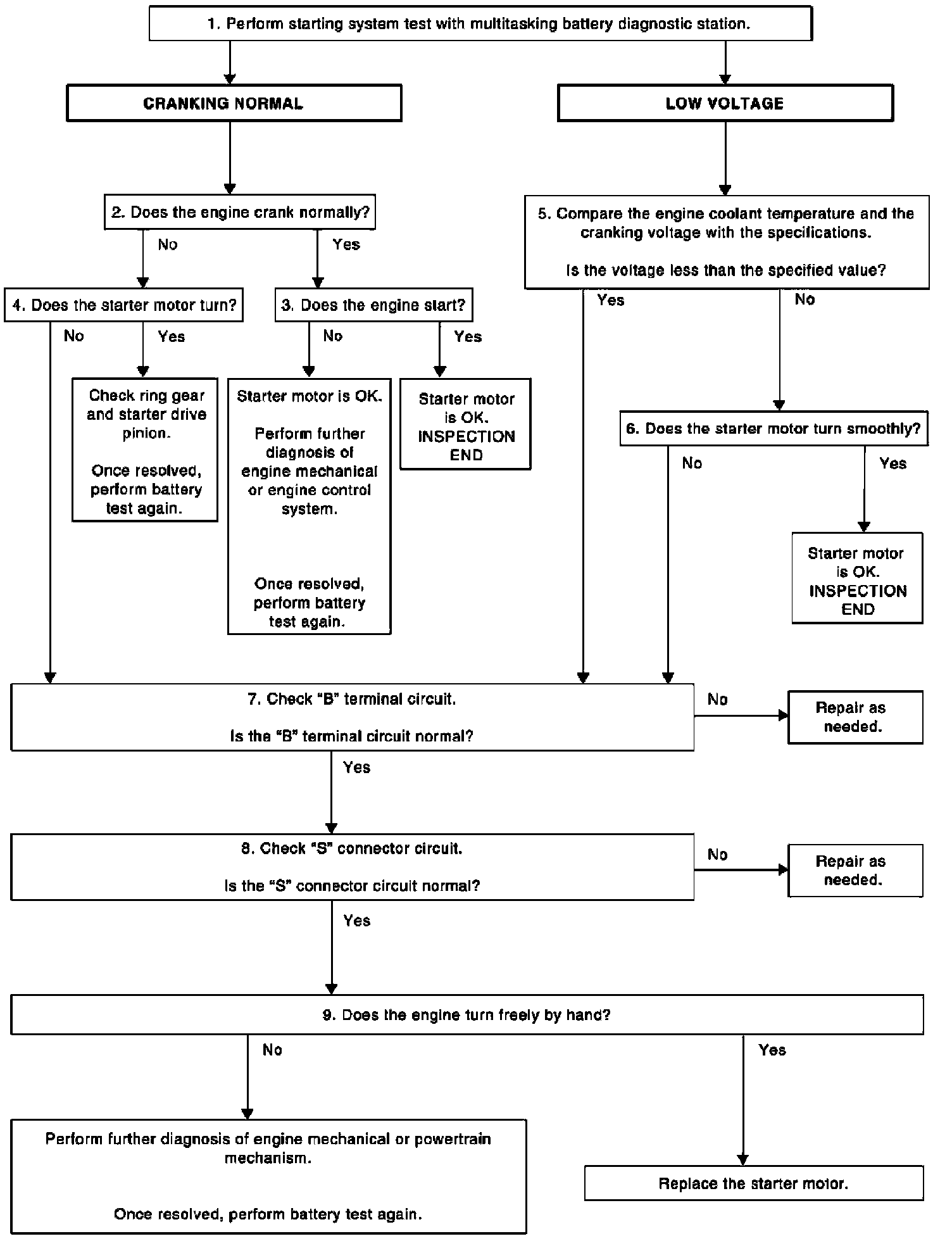

Detailed Flow

NOTE: To ensure a complete and thorough diagnosis, the battery, starter motor and generator test segments must be done as a set from start to finish.

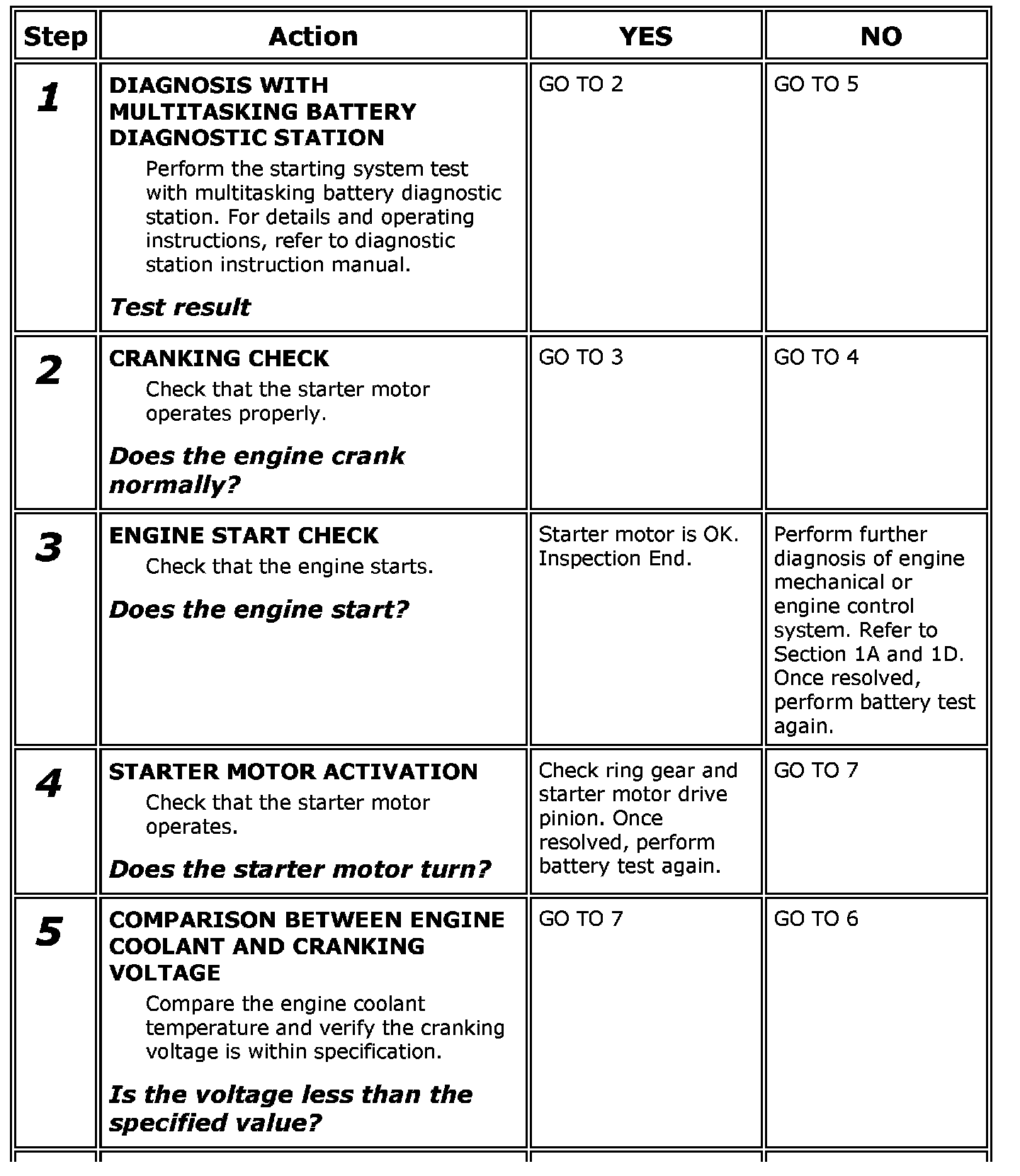

Step 1-5:

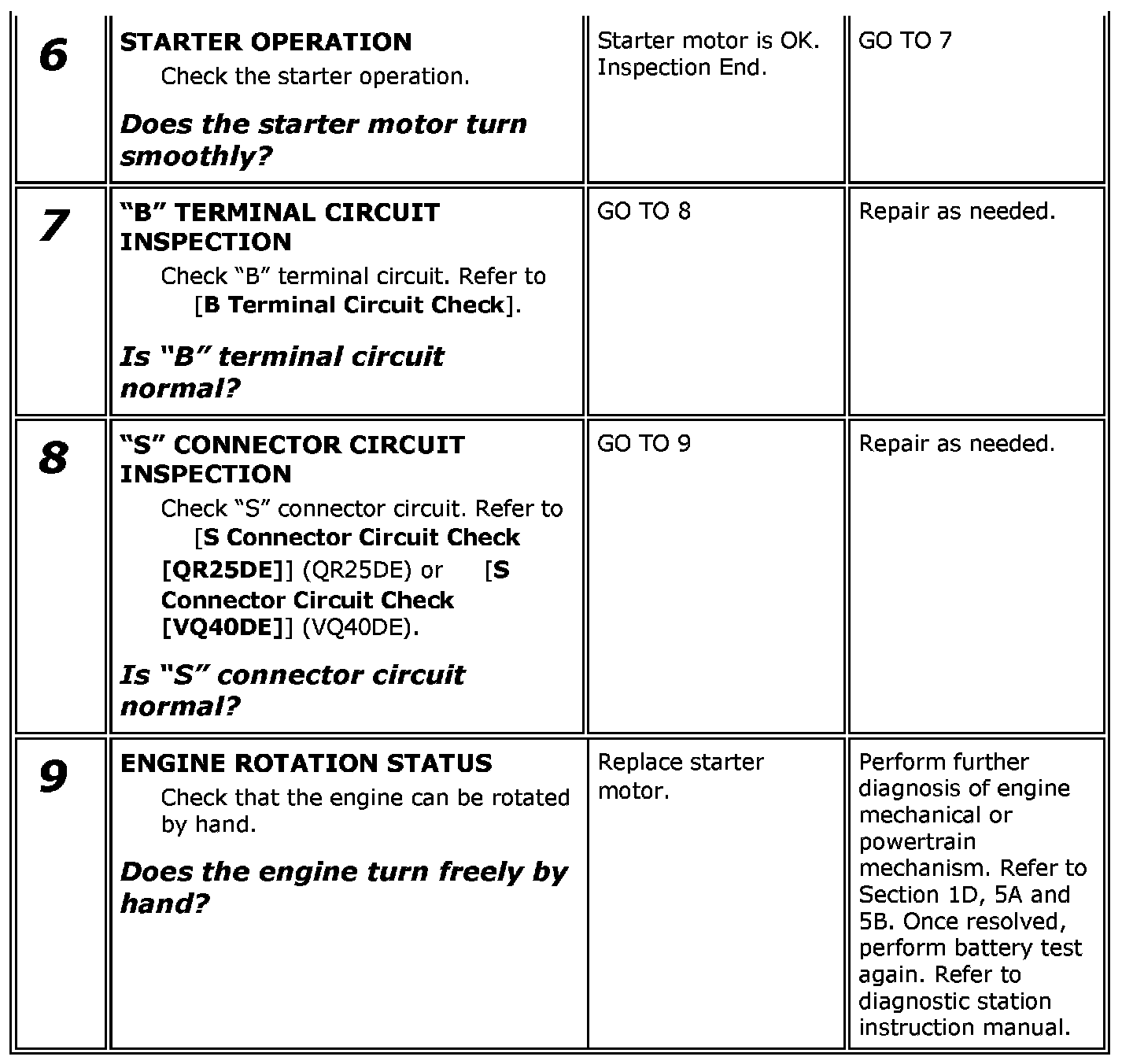

Step 6-9:
