B Terminal Circuit Check
B Terminal Circuit CheckDescription
Terminal "2" (B) is constantly supplied with battery power.

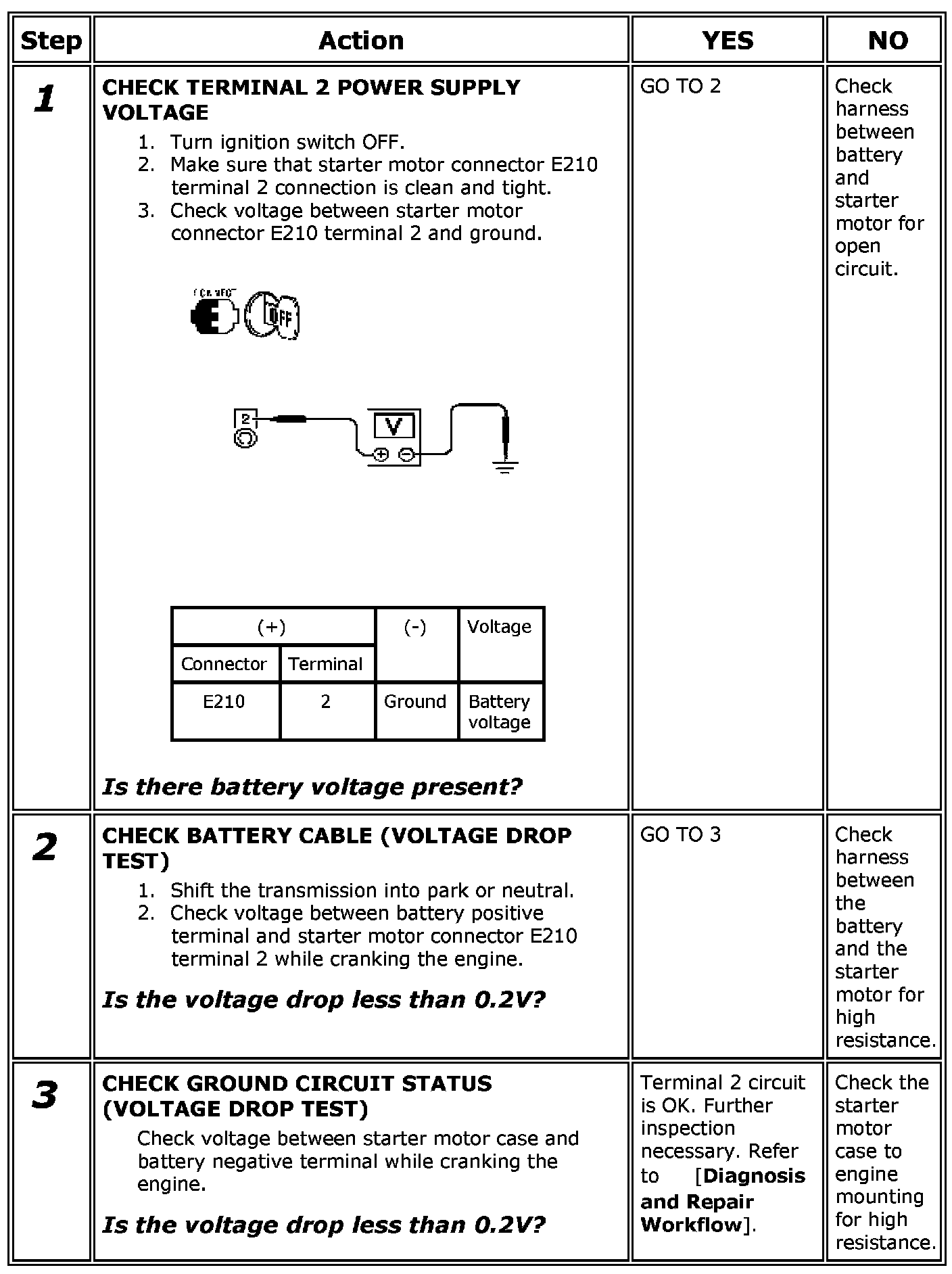

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Starting System: Wiring Diagram [VQ40DE with Clutch Interlock Cancel Switch]], [Starting System: Wiring Diagram [VQ40DE without Clutch Interlock Cancel Switch]] or [Starting System: Wiring Diagram [QR25DE]].
CAUTION: Perform diagnosis under the condition that the engine cannot start by the following procedure.
1. Remove fuel pump fuse.
2. Crank or start the engine (where possible) until the fuel pressure is depleted.
